DC DC Switching Controllers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Function | Output Configuration | Topology | Number of Outputs | Output Phases | Voltage - Supply (Vcc/Vdd) | Frequency - Switching | Duty Cycle (Max) | Synchronous Rectifier | Clock Sync | Serial Interfaces | Control Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX668EUB+TIC REG CTRLR MULT TOP 10UMAX |
9,030 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive, Isolation Capable | Boost, Flyback, SEPIC | 1 | 1 | 3V ~ 28V | 100kHz ~ 500kHz | 90% | No | Yes | - | Enable, Frequency Control | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
MAX1771ESA+IC REG CTRLR BST/BUCK-BST 8SOIC |
1,252 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Buck-Boost | 1 | 1 | 3V ~ 16.5V | 300kHz | 92% | No | No | - | Enable | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LTC1871EMS-7#PBFIC REG CTRLR MULT TOP 10MSOP |
11,538 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, SEPIC | 1 | 1 | 6V ~ 36V | 50kHz ~ 1MHz | 92% | No | Yes | - | Enable, Frequency Control | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
LTC1871EMS-7#TRPBFIC REG CTRLR MULT TOP 10MSOP |
4,456 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, SEPIC | 1 | 1 | 6V ~ 36V | 50kHz ~ 1MHz | 92% | No | Yes | - | Enable, Frequency Control | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
LTC1871IMS#TRPBFIC REG CTRLR MULT TOP 10MSOP |
6,448 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive or Negative | Boost, Flyback, SEPIC | 1 | 1 | 2.5V ~ 36V | 50kHz ~ 1MHz | 92% | No | Yes | - | Enable, Frequency Control | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP |
|
LT3837EFE#TRPBFIC REG CTRLR FLYBACK 16TSSOP |
13,140 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Flyback | 1 | 1 | 4.5V ~ 20V | 100kHz | 88% | Yes | Yes | - | Enable, Frequency Control, On Time Control | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-TSSOP-EP |
|
|
LT3844EFE#PBFIC REG CTRLR MULT TOP 16TSSOP |
5,146 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Transistor Driver | Step-Up, Step-Down, Step-Up/Step-Down | Positive or Negative | Buck, Boost, SEPIC | 1 | 1 | 4V ~ 60V | 300kHz | - | No | Yes | - | Enable, Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-TSSOP-EP |
|
|
LT3837EFE#PBFIC REG CTRLR FLYBACK 16TSSOP |
1,262 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Flyback | 1 | 1 | 4.5V ~ 20V | 100kHz | 88% | Yes | Yes | - | Enable, Frequency Control, On Time Control | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-TSSOP-EP |
|
MAX1847EEE+TIC REG CTRLR FLYBACK 16QSOP |
10,850 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Negative | Flyback | 1 | 1 | 3V ~ 16.5V | 100kHz ~ 500kHz | 96% | No | Yes | - | Enable, Frequency Control | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
LT3748EMS#TRPBFIC REG CTRLR FLYBACK 16MSOP |
5,442 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width), 12 Leads | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Flyback | 1 | 1 | 5V ~ 100V | - | - | No | No | - | Enable, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP |
|
|
LT3748EMS#PBFIC REG CTRLR FLYBACK 16MSOP |
734 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width), 12 Leads | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Flyback | 1 | 1 | 5V ~ 100V | - | - | No | No | - | Enable, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP |
|
|
LT3724EFE#PBFIC REG CTRLR MULT TOP 16TSSOP |
908 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Transistor Driver | Step-Up, Step-Down, Step-Up/Step-Down | Positive or Negative | Buck, Boost, SEPIC | 1 | 1 | 4V ~ 60V | 200kHz | - | No | No | - | Enable, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-TSSOP-EP |
|
|
MAX1771ESA+TIC REG CTRLR BST/BUCK-BST 8SOIC |
10,004 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Buck-Boost | 1 | 1 | 3V ~ 16.5V | 300kHz | 92% | No | No | - | Enable | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|

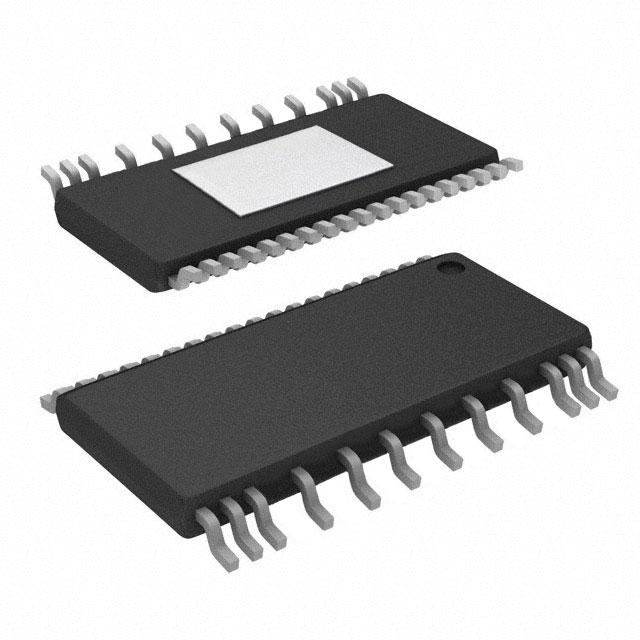

LT3753EFE#TRPBFIC REG CTRLR FWRD CONV 38TSSOP |
3,040 |
|
Datasheet |
- | 38-TFSOP (0.173", 4.40mm Width) 31 Leads, Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Forward Converter | 1 | 1 | 8.5V ~ 100V | 100kHz ~ 500kHz | - | Yes | Yes | - | Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 38-TSSOP-EP |
|
MAX17690ATE+IC REG CTRLR FLYBACK 16TQFN |
1,780 |
|
Datasheet |
- | 16-WFQFN Exposed Pad | Tray | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Flyback | 1 | 1 | 4.5V ~ 60V | 50kHz ~ 250kHz | 69% | No | No | - | Current Limit, Enable, Frequency Control, Soft Start | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|

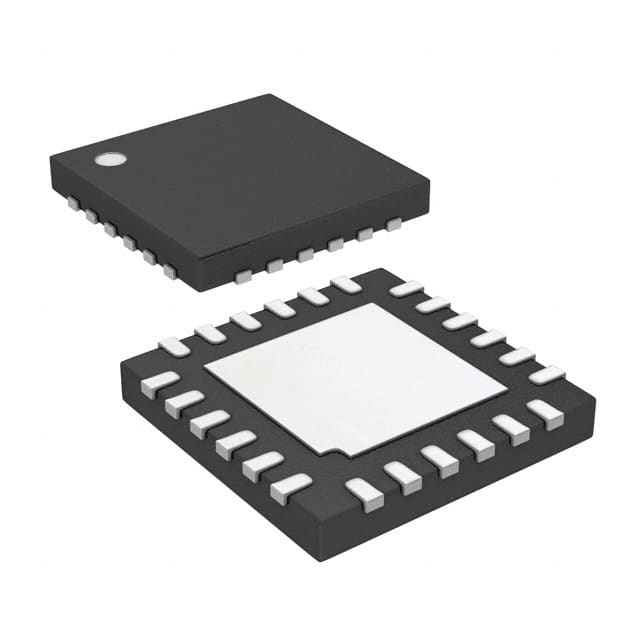

LTC3862EUH-2#PBFIC REG CTRLR BOOST/SEPIC 24QFN |
432 |
|
Datasheet |
- | 24-WQFN Exposed Pad | Tube | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, SEPIC | 2 | 2 | 5.5V ~ 36V | 75kHz ~ 500kHz | 96% | No | Yes | - | Enable, Frequency Control, Phase Control, Soft Start | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-QFN (5x5) |
|
|
LTC1871IMS-7#PBFIC REG CTRLR MULT TOP 10MSOP |
8,650 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, SEPIC | 1 | 1 | 6V ~ 36V | 50kHz ~ 1MHz | 92% | No | Yes | - | Enable, Frequency Control | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP |
|
UC2827DW-1IC REG CTRLR MULT TOP 24SOIC |
572 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Full-Bridge, Push-Pull | 3 | 1 | 7.6V ~ 20V | 220kHz | 91% | Yes | Yes | - | Frequency Control, Ramp, Soft Start | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-SOIC |
|
LT8390EFE#PBFIC REG CTRLR BUCK/BOOST 28TSS |
18,432 |
|
Datasheet |
- | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 1 | 1 | 4V ~ 60V | 190kHz ~ 630kHz | 95% | Yes | Yes | - | Current Limit, Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 28-TSSOP-EP |
|
LTC3862EFE-1#TRPBFIC REG CTRLR BOOST/SEPIC 24TSSOP |
4,958 |
|
Datasheet |
- | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, SEPIC | 2 | 2 | 8.5V ~ 36V | 75kHz ~ 500kHz | 96% | No | Yes | - | Enable, Frequency Control, Phase Control, Soft Start | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-TSSOP |
