AC DC Converters, Offline Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
INN3870C-H805-TL65 W (85-265 VAC) |
3,876 |
|
Datasheet |
- | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback | - | - | - | 60kHz | 100 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Frequency Control, Soft Start | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
INN3470C-TLIC OFFLINE SW FLBACK INSOP-24D |
4,000 |
|
Datasheet |
PowiGaN™, InnoSwitch™3-MX | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback | - | - | - | 25kHz | 85 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
MAX17691AATC+IC OFFLINE SWITCH FLYBACK 12TDFN |
1,580 |
|
Datasheet |
- | 12-WFDFN Exposed Pad | Tray | Active | Isolated | Yes | - | Flyback | - | 4.2V ~ 60V | 68% | 100kHz ~ 350kHz | 7.5 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | EN, Soft Start | -40°C ~ 125°C (TA) | - | - | 12-TDFN (3x3) | Surface Mount |
|
|
MAX17691BATC+IC OFFLINE SWITCH FLYBACK 12TDFN |
1,106 |
|
Datasheet |
- | 12-WFDFN Exposed Pad | Tray | Active | Isolated | Yes | - | Flyback | - | 4.2V ~ 60V | 68% | 100kHz ~ 350kHz | 7.5 W | Current Limiting, Over Temperature, Over Voltage | EN, Soft Start | -40°C ~ 125°C (TA) | - | - | 12-TDFN (3x3) | Surface Mount |
|
LT1244CN8#PBFIC OFFLINE SWITCH BUCK 8DIP |
3,652 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Isolated | No | - | Buck | 16 V | 10V ~ 25V | 48% | Up to 500kHz | - | - | Frequency Control | 0°C ~ 100°C (TJ) | - | - | 8-PDIP | Through Hole |
|
LTC3705EGN#PBFIC OFFLINE SW MULT TOP 16SSOP |
5,650 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Isolated | No | - | Forward, Secondary Side SR | - | 18V ~ 80V | - | - | - | Current Limiting | Soft Start | -40°C ~ 85°C (TA) | - | - | 16-SSOP | Surface Mount |
|

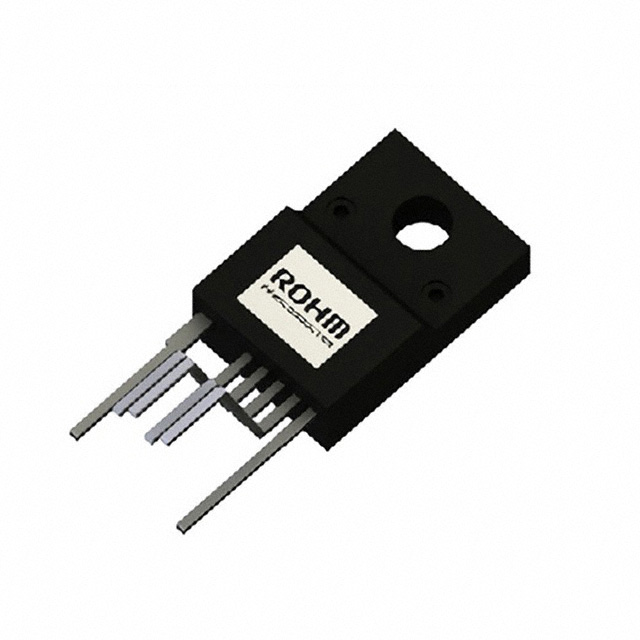

BM2SCQ124T-LBZIC OFFLINE SWITCH TO220-6M |
446 |
|
Datasheet |
- | TO-220-6 Full Pack, Formed Leads | Tube | Active | Isolated | Yes | 1700V | - | - | 15V ~ 27.5V | - | 30kHz, 120kHz | 1.5 W | Over Current, Over Voltage | Soft Start | -40°C ~ 105°C | - | - | TO-220-6M | Through Hole |
|
|
BM2SCQ122T-LBZIC OFFLINE SWITCH TO220-6M |
440 |
|
Datasheet |
- | TO-220-6 Full Pack, Formed Leads | Tube | Active | Isolated | Yes | 1700V | - | - | 15V ~ 27.5V | - | 30kHz, 120kHz | 1.5 W | Over Current, Over Voltage | Soft Start | -40°C ~ 105°C | - | - | TO-220-6M | Through Hole |
|
|
BM2SCQ121T-LBZIC OFFLINE SWITCH TO220-6M |
262 |
|
Datasheet |
- | TO-220-6 Full Pack, Formed Leads | Tube | Active | Isolated | Yes | 1700V | - | - | 15V ~ 27.5V | - | 30kHz, 120kHz | 1.5 W | Over Current, Over Voltage | Soft Start | -40°C ~ 105°C | - | - | TO-220-6M | Through Hole |
|
UC3823BDWIC OFFLINE SW MULT TOP 16SOIC |
6,746 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Bulk | Active | Non-Isolated | No | - | Boost, Buck, Flyback, Forward | 16 V | 10V ~ 22V | 100% | 1MHz | - | Current Limiting | Frequency Control, Soft Start | -55°C ~ 150°C (TJ) | - | - | 16-SOIC | Surface Mount |
|
LNK4003D-TLIC OFFLINE SWITCH FLYBACK 8SO |
4,790 |
|
Datasheet |
LinkSwitch™-4 | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | - | 5V ~ 16.5V | - | 65kHz | 10 W | Over Temperature, Over Voltage, Short Circuit | - | -25°C ~ 125°C (TJ) | - | - | 8-SO | Surface Mount |
|
LNK6404D-TLIC OFFLINE SWITCH FLYBACK 8SO |
5,782 |
|
Datasheet |
LinkSwitch™-3 | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | - | - | 55% | Up to 85kHz | 4.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK4024D-TLIC OFFLINE SWITCH FLYBACK 8SO |
5,000 |
|
Datasheet |
LinkSwitch™-4 | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | - | 5V ~ 16.5V | - | 65kHz | 15 W | Over Temperature, Over Voltage, Short Circuit | - | -25°C ~ 125°C (TJ) | - | - | 8-SO | Surface Mount |
|
|
LNK4004D-TLIC OFFLINE SWITCH FLYBACK 8SO |
4,760 |
|
Datasheet |
LinkSwitch™-4 | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | - | 5V ~ 16.5V | - | 65kHz | 15 W | Over Temperature, Over Voltage, Short Circuit | - | -25°C ~ 125°C (TJ) | - | - | 8-SO | Surface Mount |
|
|
LNK6406D-TLIC OFFLINE SWITCH FLYBACK 8SO |
3,520 |
|
Datasheet |
LinkSwitch™-3 | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | - | - | 55% | Up to 85kHz | 6.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK574DG-TLIC OFFLINE SWITCH FLYBACK 8SO |
5,000 |
|
Datasheet |
LinkZero™-LP | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 700V | Flyback | - | - | 63% | 100kHz | 3 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK584DG-TLIC OFFLINE SWITCH FLYBACK 8SO |
2,900 |
|
Datasheet |
LinkZero™-AX | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Either | Yes | 700V | Flyback | - | - | 63% | 100kHz | 3 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
AP31251W6-7IC LED DRIVER CTRLR DIM SOT26 |
5,940 |
|
- |
- | SOT-23-6 | Tape & Reel (TR) | Active | Isolated | Yes | - | Flyback | 7.6 V | 10V ~ 25V | 75% | 65kHz | - | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Soft Start | -40°C ~ 85°C (TA) | - | - | SOT-26 | Surface Mount |
|
LNK6763VIC OFFLINE SWITCH FLYBACK 12EDIP |
5,378 |
|
Datasheet |
LinkSwitch™-HP | 12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad | Tube | Active | Isolated | Yes | 650V | Flyback | - | - | 64% | 120kHz ~ 136kHz | 25 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | eDIP-12 | Through Hole |
|
|
AP3125BKTR-G1IC OFFLINE SWITCH FLYBACK SOT26 |
5,980 |
|
- |
- | SOT-23-6 | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 15.8 V | 10V ~ 25V | 75% | 65kHz | - | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | SOT-26 | Surface Mount |
