AC DC Converters, Offline Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP6005AGQ-P420KHZ, 8V TO 80V INPUT VOLTAGE |
912 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Isolated | No | - | Flyback, Forward | 5.5 V | 8V ~ 80V | 70% | 420kHz | - | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | EN, Frequency Control, Soft Start, Sync | -40°C ~ 125°C (TJ) | - | - | 10-QFN (3x3) | Surface Mount |
|
HF920GS-ZIC OFFLINE SWITCH FLYBACK 14SOIC |
4,980 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width), 11 Leads | Tape & Reel (TR) | Active | - | No | 900V | Flyback | - | 10V ~ 24V | - | Up to 150kHz | 10 W | Over Load, Over Temperature, Over Voltage, Short Circuit | Soft Start | -40°C ~ 125°C (TJ) | - | - | 14-SOIC-11 | Surface Mount |
|
INN3279C-H217-TL75 W (85-265 VAC) |
3,992 |
|
Datasheet |
InnoSwitch™3-CP | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback, Secondary Side SR | - | - | - | 65kHz | 85 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | EN, Soft Start | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
INN3279C-H222-TL75 W (85-265 VAC) |
3,980 |
|
Datasheet |
InnoSwitch™3-CP | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback, Secondary Side SR | - | - | - | 65kHz | 85 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | EN, Soft Start | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
INN3279C-H218-TL75 W (85-265 VAC) |
3,974 |
|
Datasheet |
InnoSwitch™3-CP | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback, Secondary Side SR | - | - | - | 65kHz | 85 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | EN, Soft Start | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
INN3279C-H215-TLIC OFFLINE SW MULT TOP 24INSOP |
3,596 |
|
Datasheet |
PowiGaN™, InnoSwitch™3-CP | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback, Secondary Side SR | - | - | - | 65kHz | 85 W | Current Limiting, Over Temperature, Over Voltage | Soft Start, Sync | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
MAX17595ATE+TIC OFFLINE SWITCH FLYBACK 16TQFN |
6,410 |
|
Datasheet |
- | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 20 V | 8V ~ 29V | 48% | 100kHz ~ 1MHz | - | Current Limiting, Over Temperature, Over Voltage, Short Circuit | EN, Frequency Control, Soft Start, Sync | -40°C ~ 125°C (TA) | - | - | 16-TQFN (3x3) | Surface Mount |
|
BM1050AF-GE2IC OFFLINE SWITCH FLYBACK 24SOP |
7,996 |
|
- |
- | 24-SOIC (0.213", 5.40mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 13.5 V | 8.5V ~ 24V | 94% | 120kHz | - | Current Limiting, Over Voltage | - | -40°C ~ 85°C (TA) | - | - | 24-SOP | Surface Mount |
|
HR1002GS-ZIC OFFLINE SW HALF-BRDG 16SOIC |
4,780 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | Yes | 600V | Half-Bridge | - | 8.9V ~ 15.5V | 50% | Up to 600kHz | - | Over Load, Over Temperature, Short Circuit | Soft Start | -40°C ~ 125°C (TJ) | - | - | 16-SOIC | Surface Mount |
|

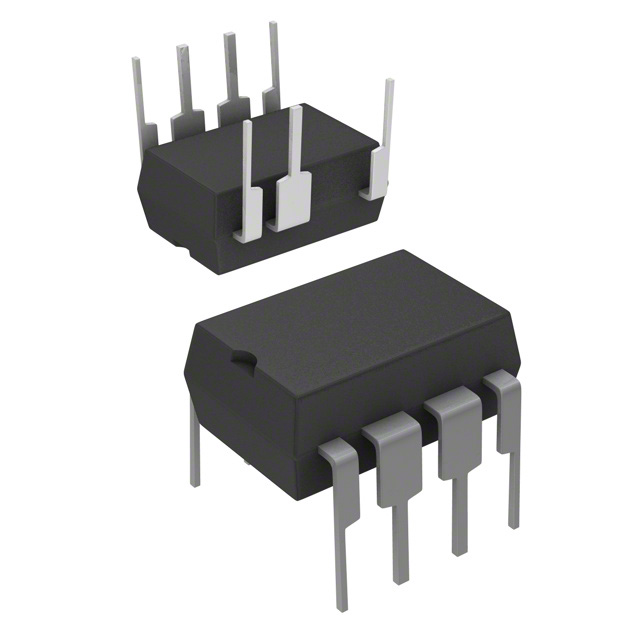

HF500GP-30IC OFFLINE SWITCH FLYBACK 8DIP |
3,212 |
|
- |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 700V | Flyback | - | 12.5V ~ 24V | - | 25kHz | 45 W | Over Load, Over Temperature, Over Voltage, Short Circuit | Soft Start | -40°C ~ 125°C (TJ) | - | - | 8-PDIP-7B | Through Hole |
|
|
INN4075C-H185-TLIC OFFLINE SW FLBACK INSOP-24D |
3,940 |
|
Datasheet |
InnoSwitch™4-CZ | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback | - | - | - | 140kHz | 90 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit | EN, Frequency Control, Soft Start | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
INN3379C-H308-TL75 W (85-265 VAC) |
3,956 |
|
- |
InnoSwitch™3-Pro | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback, Secondary Side SR | 5 V | 3.42V ~ 3.78V | - | 65kHz | 85 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Frequency Control, Soft Start | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
INN3379C-H302-TLIC OFFLINE SW MULT TOP 24INSOP |
3,580 |
|
Datasheet |
PowiGaN™, InnoSwitch™3-Pro | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback, Secondary Side SR | 5 V | 3.42V ~ 3.78V | - | 65kHz | 85 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Soft Start, Sync | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
BM2P101X-ZNON-ISOLATED TYPE PWM DC/DC CONV |
3,950 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Non-Isolated | Yes | 650V | Buck | 7.7 V | 9.5V ~ 10.8V | 40% | 65kHz | - | Current Limiting, Open Circuit, Over Temperature, Over Voltage, UVLO | Soft Start | -40°C ~ 105°C (TA) | - | - | 7-DIPK | Through Hole |
|
|
INN3270C-H203-TL85 W (85-265 VAC) |
4,000 |
|
Datasheet |
- | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback, Secondary Side SR | - | - | - | 60kHz | 100 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | EN, Soft Start | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
INN3670C-H615-TL85 W (85-265 VAC) |
3,968 |
|
Datasheet |
InnoSwitch™3-EP | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback, Secondary Side SR | - | - | - | 60kHz | 100 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Frequency Control, Soft Start | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
INN3270C-H217-TL85 W (85-265 VAC) |
3,848 |
|
Datasheet |
InnoSwitch™3-CP | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback, Secondary Side SR | - | - | - | 60kHz | 100 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | EN, Soft Start | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
BM2P061EK-LBZPMW TYPE DC/DC CONVERTER IC INTE |
4,000 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 800V | Flyback | 10.7 V | 10.9V ~ 30V | 75% | 65kHz | - | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit, UVLO | Soft Start | -40°C ~ 105°C (TA) | - | - | 7-DIP-AK | Through Hole |
|
|
BM2P101E-ZIC REG FLYBACK 4A 7DIP |
4,000 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 650V | Flyback | 8.7 V | 8.9V ~ 26V | 75% | 100kHz | - | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit, UVLO | Soft Start | -40°C ~ 105°C (TA) | - | - | 7-DIP-AK | Through Hole |
|
|
HF500GP-40IC OFFLINE SWITCH FLYBACK 8DIP |
2,980 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 700V | Flyback | - | 9V ~ 24V | - | 65kHz | 45 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Soft Start | -40°C ~ 125°C (TJ) | - | - | 8-PDIP-7B | Through Hole |
