AC DC Converters, Offline Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCP13992AADR2GIC OFFLINE SW HALF-BRDG 16SOIC |
4,350 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width), 14 Leads | Tape & Reel (TR) | Active | Isolated | No | - | Half-Bridge | 9 V | 20V | 50% | 20kHz ~ 750kHz | - | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit | EN, Frequency Control, Soft Start, Sync | -50°C ~ 150°C (TJ) | - | - | 16-SOIC | Surface Mount |
|
|
NCP1399APDR2GIC OFFLINE SW HALF-BRDG 16SOIC |
4,084 |
|
Datasheet |
NCP1399 | 16-SOIC (0.154", 3.90mm Width), 14 Leads | Tape & Reel (TR) | Active | Isolated | No | - | Half-Bridge | 15.8 V | 9.5V ~ 20V | 50% | 20kHz ~ 750kHz | - | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -55°C ~ 150°C (TJ) | - | - | 16-SOIC | Surface Mount |
|

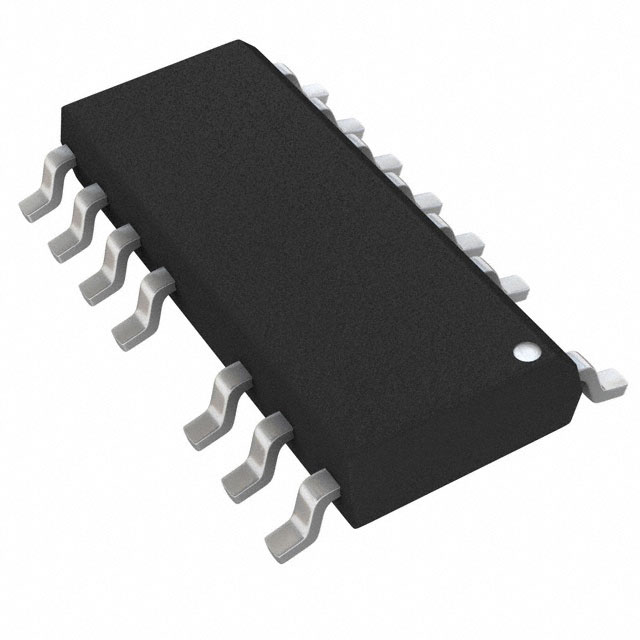

NCP1399AMDR2GIC OFFLINE SW HALF-BRDG 16SOIC |
794 |
|
Datasheet |
NCP1399 | 16-SOIC (0.154", 3.90mm Width), 14 Leads | Tape & Reel (TR) | Active | Isolated | No | - | Half-Bridge | 12 V | 9.5V ~ 20V | 50% | 20kHz ~ 750kHz | - | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | 16-SOIC | Surface Mount |
|
INN3278C-H114-TLIC OFFLINE SW MULT TOP 24INSOP |
4,012 |
|
Datasheet |
PowiGaN™, InnoSwitch™3-CP | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback, Secondary Side SR | - | - | - | 70kHz | 75 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
INN3278C-H232-TL65 W (85-265 VAC) |
3,968 |
|
- |
InnoSwitch™3-CP | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback, Secondary Side SR | - | - | - | 70kHz | 75 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | EN, Soft Start | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|

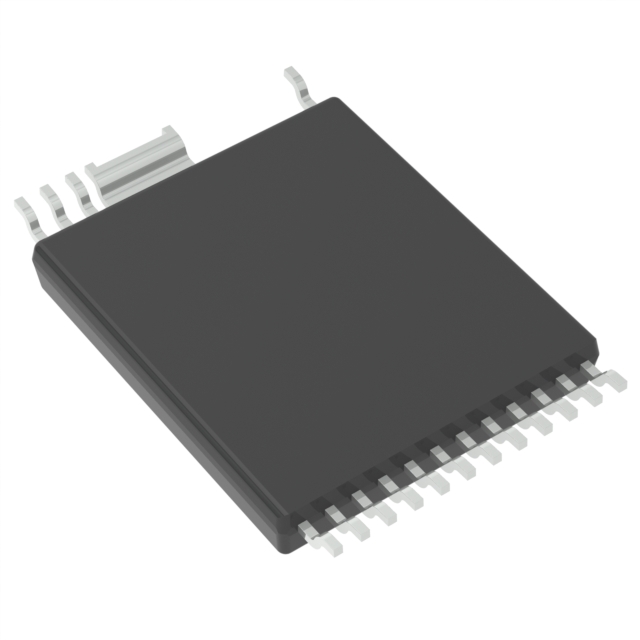

INN3278C-H217-TLIC OFFLINE SW MULT TOP 24INSOP |
3,962 |
|
Datasheet |
PowiGaN™, InnoSwitch™3-CP | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback, Secondary Side SR | - | - | - | 70kHz | 75 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
INN3278C-H215-TLIC OFFLINE SW MULT TOP 24INSOP |
3,856 |
|
Datasheet |
PowiGaN™, InnoSwitch™3-CP | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback, Secondary Side SR | - | - | - | 70kHz | 75 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
NCP13992AUDR2GHIGH PERF CURRENT MODE RESONANT |
4,868 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width), 14 Leads | Tape & Reel (TR) | Active | Isolated | No | 600V | Half-Bridge | 11.9 V | 9.5V ~ 20V | 50% | 20kHz ~ 750kHz | - | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit | EN, Frequency Control, Soft Start | -50°C ~ 150°C (TJ) | - | - | 16-SOIC | Surface Mount |
|
|
NCP13992ABDR2GIC OFFLINE SW HALF-BRDG 16SOIC |
29,650 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width), 14 Leads | Tape & Reel (TR) | Active | Isolated | No | - | Half-Bridge | 9 V | 7.5V ~ 10V | 50% | 20kHz ~ 750kHz | - | Over Current, Over/Under Voltage, Short Circuit | EN, Frequency Control, Soft Start, Sync | -50°C ~ 150°C (TJ) | - | - | 16-SOIC | Surface Mount |
|
|
NCP13992AGDR2GIC OFFLINE SW HALF-BRDG 16SOIC |
9,368 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width), 14 Leads | Tape & Reel (TR) | Active | Isolated | No | - | Half-Bridge | 9 V | 9.5V ~ 20V | 50% | 20kHz ~ 750kHz | - | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit | EN, Frequency Control, Soft Start, Sync | -50°C ~ 150°C (TJ) | - | - | 16-SOIC | Surface Mount |
|
|
NCP13992AHDR2GIC OFFLINE SW HALF-BRDG 16SOIC |
4,846 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width), 14 Leads | Tape & Reel (TR) | Active | Isolated | No | - | Half-Bridge | 9 V | 9.5V ~ 20V | 50% | 20kHz ~ 750kHz | - | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit | EN, Frequency Control, Soft Start, Sync | -50°C ~ 150°C (TJ) | - | - | 16-SOIC | Surface Mount |
|

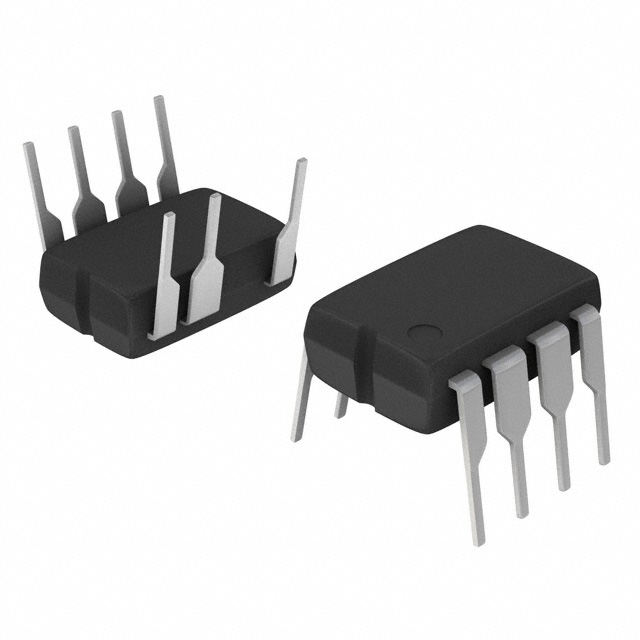

BM2P101FK-LBZIC OFFLINE SWITCH FLYBACK 7DIP |
3,854 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 800V | Flyback | 10.7 V | 10.9V ~ 30V | 75% | 100kHz | - | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit, UVLO | Soft Start | -40°C ~ 105°C (TA) | - | - | 7-DIP | Through Hole |
|
|
BM2P061FK-LBZTHIS IS THE PRODUCT GUARANTEES L |
3,794 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 800V | Flyback | 10.7 V | 10.9V ~ 30V | 75% | 65kHz | - | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit, UVLO | Soft Start | -40°C ~ 105°C (TA) | - | - | 7-DIP-AK | Through Hole |
|
NCP1568G03DBR2GIC OFFLINE SW FLYBACK 16TSSOP |
4,836 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width), 12 Leads | Tape & Reel (TR) | Active | Isolated | Yes | - | Flyback | 15.2 V | 10V ~ 27V | 79% | 100kHz ~ 1MHz | - | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit | Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | 16-TSSOP | Surface Mount |
|
|
INN3378C-H302-TLIC OFFLINE SW FLBACK INSOP-24D |
4,234 |
|
Datasheet |
PowiGaN™, InnoSwitch™3-Pro | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | 5 V | 3.42V ~ 3.78V | - | 70kHz | 70 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Frequency Control, Soft Start, Sync | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
INN3378C-H311-TL65 W (85-265 VAC) |
3,988 |
|
Datasheet |
InnoSwitch™3-Pro | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback, Secondary Side SR | 5 V | 3.42V ~ 3.78V | - | 70kHz | 75 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Frequency Control, Soft Start | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
INN4074C-H185-TLIC OFFLINE SW FLBACK INSOP-24D |
3,984 |
|
Datasheet |
InnoSwitch™4-CZ | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback | - | - | - | 140kHz | 85 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit | EN, Frequency Control, Soft Start | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
INN4074C-H182-TLIC OFFLINE SW FLBACK INSOP-24D |
2,196 |
|
Datasheet |
InnoSwitch™4-CZ | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 750V | Flyback | - | - | - | 140kHz | 85 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit | EN, Frequency Control, Soft Start | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
BM2P10B1J-ZBUILT-IN SWITCHING MOSFET PWM-TY |
3,980 |
|
Datasheet |
BM2P10xxJ-Z | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 730V | Flyback | 8.7 V | 8.9V ~ 26V | 90% | 100kHz | - | Current Limiting, Open Circuit, Over Temperature, Over Voltage, UVLO | Frequency Control, Soft Start | -40°C ~ 105°C (TA) | - | - | 7-DIPK | Through Hole |
|
|
RAA2231814GSP#HA0900V FLY-BACK REGULATOR, 13-LD S |
4,538 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width), 13 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 900V | Flyback | 12 V | 10V ~ 18V | 48% | 50kHz ~ 100kHz | - | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Frequency Control, Soft Start | -40°C ~ 125°C (TA) | - | - | 13-SOIC | Surface Mount |
