Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TB4-120HRLINE FILTER 120A CHASSIS MOUNT |
7,828 |
|
Datasheet |
TB4 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 290 V | 500 V | 120 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN258HV-55-34LINE FILTER 55A CHASSIS MOUNT |
9,160 |
|
Datasheet |
FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 400 V | 690 V | 55 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
TB6-5080D3DHLINE FILTER 80A CHASSIS MOUNT |
7,594 |
|
Datasheet |
TB6-2,5 G/H | Box | Active | Three Phase (Delta) | Two Stage | - | - | 290 V | 500 V | 80 A | 50 ~ 60Hz | General Purpose | CE, ENEC, SEMKO, UL, UR | - | Chassis Mount | Terminal Block | - |
|
|
TB4-200GRLINE FILTER 200A CHASSIS MOUNT |
6,280 |
|
Datasheet |
TB4 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 290 V | 500 V | 200 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
TB4-080HRLINE FILTER 80A CHASSIS MOUNT |
5,922 |
|
Datasheet |
TB4 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 290 V | 500 V | 80 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
TB6-5150D6DGLINE FILTER 150A CHASSIS MOUNT |
8,768 |
|
Datasheet |
TB6-2,5 G/H | Box | Active | Three Phase (Delta) | Two Stage | - | - | 290 V | 500 V | 150 A | 50 ~ 60Hz | General Purpose | CE, ENEC, SEMKO, UL, UR | - | Chassis Mount | Terminal Block | - |
|
|
TB4-150GRLINE FILTER 150A CHASSIS MOUNT |
8,074 |
|
Datasheet |
TB4 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 290 V | 500 V | 150 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FMBC-0962-6610LINE FILTER 480VAC 66A CHASS MNT |
4,264 |
|
Datasheet |
FMBC BOOK STYLE | Bag | Obsolete | Three Phase (Delta) | Two Stage | - | 480V | - | - | 66 A | 50/60Hz | Inverters, Power Drive Systems | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | L1 - 650µH, L2 - 450µH |
|
|
FN258P-75-34LINE FILTER 75A CHASSIS MOUNT |
9,984 |
|
Datasheet |
FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 75 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN356-50-24LINE FILTER 50A CHASSIS MOUNT |
5,102 |
|
Datasheet |
FN 356 | Tray | Obsolete | Three Phase (Wye) | Single Stage | - | - | 250 V | 440 V | 50 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Threaded Post (M6) | - |
|
3-1609091-3LINE FILTER 180A CHASSIS MOUNT |
4,070 |
|
Datasheet |
BCF | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 180 A | 50/60Hz | Inverters, Power Drive Systems | UR, VDE | -10°C ~ 50°C | Chassis Mount | Threaded Post (M10) | - |
|
|
TB6-B200LBSLINE FILTER 200A CHASSIS MOUNT |
5,786 |
|
Datasheet |
- | Box | Active | Three Phase (Delta) | Two Stage | - | - | 250 V | 440 V | 200 A | - | General Purpose | CE, ENEC, SEMKO | -25°C ~ 50°C | Chassis Mount | Terminal Block, Threaded Post (M10) | - |
|
|
TB6-5200D9DHLINE FILTER 200A CHASSIS MOUNT |
2,126 |
|
Datasheet |
TB6-2,5 G/H | Box | Active | Three Phase (Delta) | Two Stage | - | - | 290 V | 500 V | 200 A | 50 ~ 60Hz | General Purpose | CE, ENEC, SEMKO, UL, UR | - | Chassis Mount | Terminal Block | - |
|
1609989-7LINE FILTER 100A CHASSIS MOUNT |
4,424 |
|
Datasheet |
BCF | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 100 A | 50/60Hz | Inverters, Power Drive Systems | UR, VDE | -10°C ~ 50°C | Chassis Mount | Terminal Block | - |
|

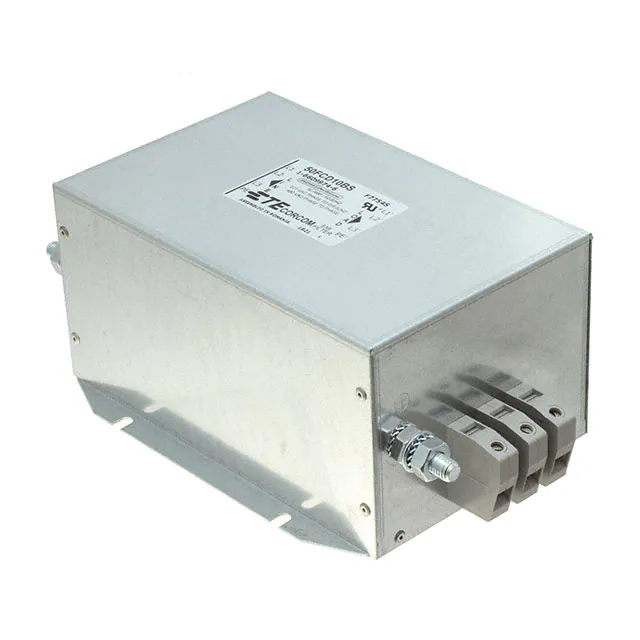

1-6609974-6LINE FILTER 50A CHASSIS MOUNT |
3,784 |
|
Datasheet |
FCD | Box | Last Time Buy | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 50 A | 50/60Hz | Regenerative Motor Drive | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
FN258L-75-34LINE FILTER 75A CHASSIS MOUNT |
9,142 |
|
Datasheet |
FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 75 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
TB4-100HRLINE FILTER 100A CHASSIS MOUNT |
9,608 |
|
Datasheet |
TB4 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 290 V | 500 V | 100 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
TB6-B250LBSLINE FILTER 250A CHASSIS MOUNT |
6,134 |
|
Datasheet |
TB6-B | Box | Active | Three Phase (Delta) | Two Stage | - | - | 254 V | 440 V | 250 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
TB6-5200D9DGLINE FILTER 200A CHASSIS MOUNT |
5,738 |
|
Datasheet |
TB6-2,5 G/H | Box | Active | Three Phase (Delta) | Two Stage | - | - | 290 V | 500 V | 200 A | 50 ~ 60Hz | General Purpose | CE, ENEC, SEMKO, UL, UR | - | Chassis Mount | Terminal Block | - |
|
100BCF10RLINE FILTER 100A CHASSIS MOUNT |
9,148 |
|
Datasheet |
BCFXR | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 100 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 50°C | Chassis Mount | Terminal Block | 800µH |
