Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMBC-0967-1060LINE FILTER 480VAC 10A CHASS MNT |
6,924 |
|
Datasheet |
FMBC BOOK STYLE | Bulk | Obsolete | Three Phase (Delta) | Two Stage | - | 480V | - | - | 10 A | 50/60Hz | Inverters, Power Drive Systems | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | L1 - 3mH, L2 - 1.5mH |
|
FLLD3075AMHT5LINE FILTER 75A CHASSIS MOUNT |
5,144 |
|
Datasheet |
* | Bulk | Last Time Buy | Three Phase (Delta) | Single Stage | - | - | 305 V | 530 V | 75 A | 50/60Hz | General Purpose | ENEC, UL | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FMBC-0967-1010LINE FILTER 480VAC 10A CHASS MNT |
6,374 |
|
Datasheet |
FMBC BOOK STYLE | Bulk | Obsolete | Three Phase (Delta) | Two Stage | - | 480V | - | - | 10 A | 50/60Hz | Inverters, Power Drive Systems | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | L1 - 3mH, L2 - 1.5mH |
|
TB4-020HLINE FILTER 20A CHASSIS MOUNT |
5,412 |
|
Datasheet |
TB4 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 290 V | 500 V | 20 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN356-16-29LINE FILTER 16A CHASSIS MOUNT |
9,092 |
|
Datasheet |
FN 356 | Tray | Obsolete | Three Phase (Wye) | Single Stage | - | - | 250 V | 440 V | 16 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FMBC-0958-2060LINE FILTER 480VAC 20A CHASS MNT |
8,342 |
|
Datasheet |
FMBC BOOK STYLE | Bulk | Obsolete | Three Phase (Delta) | Two Stage | - | 480V | - | - | 20 A | 50/60Hz | Inverters, Power Drive Systems | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | L1 - 1.8mH, L2 - 2mH |
|
|
TB4-030HLINE FILTER 30A CHASSIS MOUNT |
6,546 |
|
Datasheet |
TB4 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 290 V | 500 V | 30 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FMBC-0958-2010LINE FILTER 480VAC 20A CHASS MNT |
4,436 |
|
Datasheet |
FMBC BOOK STYLE | Bulk | Obsolete | Three Phase (Delta) | Two Stage | - | 480V | - | - | 20 A | 50/60Hz | Inverters, Power Drive Systems | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | L1 - 1.8mH, L2 - 2mH |
|
FN351-16-29LINE FILTER 16A CHASSIS MOUNT |
7,508 |
|
Datasheet |
FN 351 | Tray | Obsolete | Three Phase (Delta) | Single Stage | - | - | 250 V | 440 V | 16 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
TB6-B060LASLINE FILTER 60A CHASSIS MOUNT |
3,158 |
|
Datasheet |
TB6-B | Box | Active | Three Phase (Delta) | Single Stage | - | - | 254 V | 440 V | 60 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
F2779Y001L-003LINE FILTER 120V/250VAC 1A CHASS |
8,482 |
|
Datasheet |
F2779Y | Box | Active | Single Phase | Two Stage | - | 120V, 250V | - | - | 1 A | DC ~ 60Hz | General Purpose | cUL, UL | -25°C ~ 85°C | Chassis Mount | Wire Leads | - |
|
|
FN258HV-30-33LINE FILTER 30A CHASSIS MOUNT |
6,498 |
|
Datasheet |
FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 400 V | 690 V | 30 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
TB4-040GRLINE FILTER 40A CHASSIS MOUNT |
8,330 |
|
Datasheet |
TB4 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 290 V | 500 V | 40 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
TB6-B080LASLINE FILTER 80A CHASSIS MOUNT |
9,300 |
|
Datasheet |
TB6-B | Box | Active | Three Phase (Delta) | Single Stage | - | - | 254 V | 440 V | 80 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
6609974-9LINE FILTER 25A CHASSIS MOUNT |
6,936 |
|
Datasheet |
FCD | Box | Last Time Buy | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 25 A | 50/60Hz | Regenerative Motor Drive | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
|
TB6-B100LASLINE FILTER 100A CHASSIS MOUNT |
8,580 |
|
Datasheet |
TB6-B | Box | Active | Three Phase (Delta) | Single Stage | - | - | 254 V | 440 V | 100 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN258P-30-33LINE FILTER 30A CHASSIS MOUNT |
7,230 |
|
Datasheet |
FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 30 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
42KEHD10BBSDLINE FILTER 520VAC 42A CHASS MNT |
3,416 |
|
Datasheet |
KEH-BS | Bulk | Active | Three Phase (Delta) | Two Stage | - | 520V | - | - | 42 A | 50/60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|

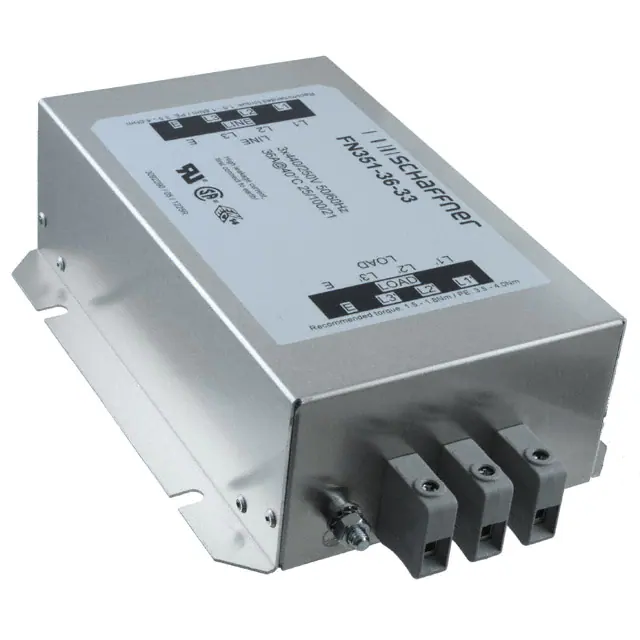

FN351-36-33LINE FILTER 36A CHASSIS MOUNT |
4,812 |
|
Datasheet |
FN 351 | Tray | Obsolete | Three Phase (Delta) | Single Stage | - | - | 250 V | 440 V | 36 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
FMBC-0960-3660LINE FILTER 480VAC 36A CHASS MNT |
5,350 |
|
Datasheet |
FMBC BOOK STYLE | Bulk | Obsolete | Three Phase (Delta) | Two Stage | - | 480V | - | - | 36 A | 50/60Hz | Inverters, Power Drive Systems | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | L1 - 1.5mH, L2 - 2mH |
