Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
42BCF10RLINE FILTER 42A CHASSIS MOUNT |
8,664 |
|
Datasheet |
BCFXR | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 42 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 50°C | Chassis Mount | Terminal Block | 1.6mH |
|

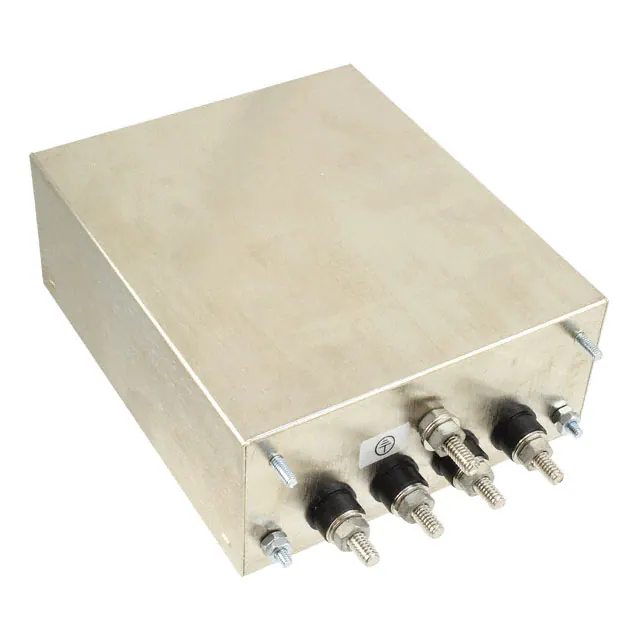

6609072-1LINE FILTER 20A CHASSIS MOUNT |
2,376 |
|
Datasheet |
A | Bulk | Last Time Buy | Three Phase (Wye) | Two Stage | - | - | 250 V | 440 V | 20 A | 50/60Hz | General Purpose | CSA, UL | -10°C ~ 40°C | Chassis Mount | Threaded Post (1/4-20) | 4.44mH |
|
TB4-080GRLINE FILTER 80A CHASSIS MOUNT |
3,512 |
|
Datasheet |
TB4 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 290 V | 500 V | 80 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
50AYA6ALINE FILTER 50A CHASSIS MOUNT |
3,656 |
|
Datasheet |
AYA | Bulk | Last Time Buy | Three Phase (Wye) | Single Stage | - | - | 250 V | 440 V | 50 A | 50/60Hz | General Purpose | UR | -10°C ~ 40°C | Chassis Mount | Threaded Post (1/4-20) | - |
|
|
36AYA6ALINE FILTER 36A CHASSIS MOUNT |
2,850 |
|
Datasheet |
AYA | Bulk | Last Time Buy | Three Phase (Wye) | Single Stage | - | - | 250 V | 440 V | 36 A | 50 ~ 60Hz | General Purpose | UL | -10°C ~ 40°C | Chassis Mount | Threaded Post (M5) | - |
|
|
3-6609074-4LINE FILTER 80VDC 100A CHASS MNT |
5,752 |
|
Datasheet |
DC | Bulk | Active | DC | Single Stage | 80V | - | - | - | 100 A | - | General Purpose | CSA, TUV, UL | -10°C ~ 55°C | Chassis Mount | Threaded Post (1/4-20) | - |
|
|
TB4-040HRLINE FILTER 40A CHASSIS MOUNT |
7,786 |
|
Datasheet |
TB4 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 290 V | 500 V | 40 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
LF-250PLINE FILTER 250VAC/VDC 50A CHASS |
4,410 |
|
Datasheet |
LF | Tray | Obsolete | Single Phase | Two Stage | 250V | 250V | - | - | 50 A | - | General Purpose | - | -20°C ~ 45°C | Chassis Mount | Threaded Post (M6) | - |
|
6609068-5LINE FILTER 36A CHASSIS MOUNT |
8,756 |
|
Datasheet |
AYA | Bulk | Last Time Buy | Three Phase (Wye) | Single Stage | - | - | 250 V | 440 V | 36 A | 50/60Hz | General Purpose | UR | -10°C ~ 40°C | Chassis Mount | Threaded Post (10-32) | - |
|
FN258P-42-07LINE FILTER 42A CHASSIS MOUNT |
3,060 |
|
Datasheet |
FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 42 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN356-25-24LINE FILTER 25A CHASSIS MOUNT |
3,678 |
|
Datasheet |
FN 356 | Tray | Obsolete | Three Phase (Wye) | Single Stage | - | - | 250 V | 440 V | 25 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Threaded Post (M6) | - |
|
|
6609977-8LINE FILTER 63A CHASSIS MOUNT |
9,034 |
|
Datasheet |
AYA | Box | Last Time Buy | Three Phase (Wye) | Single Stage | - | - | 250 V | 440 V | 63 A | 50/60Hz | General Purpose | UR | -10°C ~ 40°C | Chassis Mount | Threaded Post (1/4-20) | - |
|
6609973-2LINE FILTER 35A CHASSIS MOUNT |
9,228 |
|
Datasheet |
IK | Bulk | Last Time Buy | Single Phase | Single Stage | - | - | 480 V | 500 V | 35 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
25FCD10LINE FILTER 25A CHASSIS MOUNT |
5,246 |
|
Datasheet |
FCD | Bulk | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 25 A | 50/60Hz | Regenerative Motor Drive | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
FMAC-0932-2512ILINE FILTER 480V/520VAC 25A CHAS |
7,054 |
|
Datasheet |
FMAC | Bulk | Active | Three Phase (Delta) | Single Stage | - | 480V, 520V | - | - | 25 A | 50/60Hz | Photovoltaic Inverter | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | 3mH |
|
|
TB6-5060D3DGLINE FILTER 60A CHASSIS MOUNT |
8,140 |
|
Datasheet |
TB6-2,5 G/H | Box | Active | Three Phase (Delta) | Two Stage | - | - | 290 V | 500 V | 60 A | 50 ~ 60Hz | General Purpose | CE, ENEC, SEMKO, UL, UR | - | Chassis Mount | Terminal Block | - |
|
6609070-2LINE FILTER 12A CHASSIS MOUNT |
7,578 |
|
Datasheet |
FCD | Bulk | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 12 A | 50/60Hz | General Purpose | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
|
TB6-5100D6DGLINE FILTER 100A CHASSIS MOUNT |
8,138 |
|
Datasheet |
TB6-2,5 G/H | Box | Active | Three Phase (Delta) | Two Stage | - | - | 290 V | 500 V | 100 A | 50 ~ 60Hz | General Purpose | CE, ENEC, SEMKO, UL, UR | - | Chassis Mount | Terminal Block | - |
|
|
FN258P-42-33LINE FILTER 42A CHASSIS MOUNT |
9,876 |
|
Datasheet |
FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 42 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
TB4-060HRLINE FILTER 60A CHASSIS MOUNT |
3,592 |
|
Datasheet |
TB4 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 290 V | 500 V | 60 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
