Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PI3USB304ZHEIC USB 3.0 MUX/DEMUX SW 42TQFN |
7,794 |
|
- |
- | 42-VFQFN Exposed Pad | Tray | Obsolete | USB | 2:1 | - | 2 | - | 3V ~ 3.6V | - | 8.2GHz | Bi-Directional, USB 3.0 | - | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
CPC7701KIC ANALOG SWITCH 16CH 48-LQFP |
6,736 |
|
- |
- | 48-LQFP | Tray | Obsolete | Ultrasound | 1:1 | SPST | 16 | 35Ohm | 3V ~ 5.5V | - | - | Buffered | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|
|
FSA2567UMX-F135IC SWITCH 4PDT 16UMLP |
8,300 |
|
Datasheet |
- | 16-UFQFN | Tape & Reel (TR) | Obsolete | Telecommunications | - | 4PDT | 1 | 10Ohm | 1.65V ~ 4.3V | - | 475MHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UMLP (1.8x2.6) |
|
MAX4906FELB+TCKPIC USB SWITCH DUAL 1X2 10UDFN |
3,290 |
|
Datasheet |
- | 10-WFDFN | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 7Ohm | 3V ~ 3.6V | - | 1GHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-µDFN (2x2) |
|
|
HT1204 DCIC ANLG SW QUAD HI TEMP 14DIP |
5,556 |
|
Datasheet |
HTMOS™ | 14-CDIP (0.300", 7.62mm) | Bulk | Obsolete | High Temperature | 1:1 | SPST | 4 | 100Ohm | 5V ~ 11V | - | - | - | -55°C ~ 225°C (TA) | - | - | Through Hole | 14-CERDIP |
|
HT507DCIC MUX ANALOG 8-CH DUAL 28-DIP |
7,906 |
|
Datasheet |
HTMOS™ | 28-CDIP (0.600", 15.24mm) | Bulk | Obsolete | High Temperature | 8:1 | - | 2 | 400Ohm | 5V | - | - | - | -55°C ~ 225°C (TA) | - | - | Through Hole | 28-CDIP |
|
PI3DBS12412AZLEIC MUX/DEMUX 2:4 40TQFN |
4,868 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tray | Obsolete | Thunderbolt | 2:1 | - | 2 | - | 3.3V | - | 11.3GHz | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 40-TQFN (3x6) |
|
|
PI3DBS12412AZHEIC MUX/DEMUX 2:4 42TQFN |
6,620 |
|
Datasheet |
- | 42-VFQFN Exposed Pad | Tray | Obsolete | Thunderbolt | 2:1 | - | 2 | - | 3.3V | - | 11.3GHz | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (9x3.5) |
|

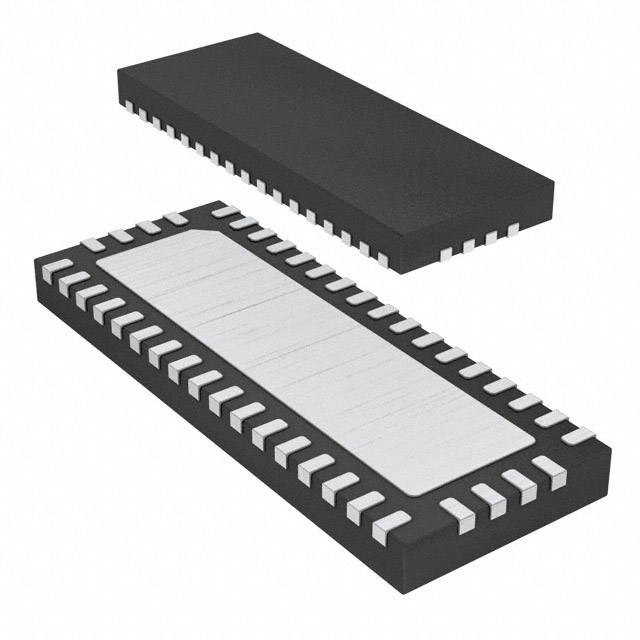

TC7PCI3412MT,LFIC MUX/DEMUX 2:1 DIFF PCI 42TQFN |
8,502 |
|
Datasheet |
- | 42-UFQFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | PCI Express® | 2:1 | SPDT | 8 | 13.5Ohm | 3V ~ 3.6V | - | 10GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (9x3.5) |
|

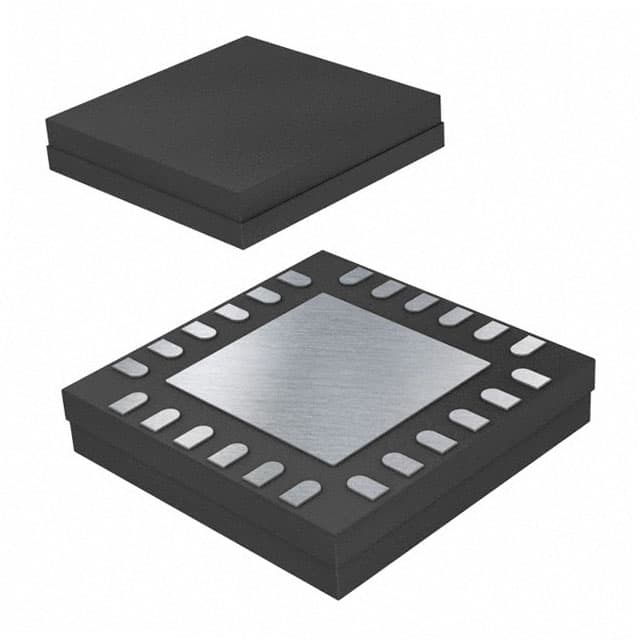

HMC955LC4BTR-R5IC DEMUX 1:2 32GBPS 24QFN |
4,646 |
|
Datasheet |
- | 24-TFCQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Telecommunications | 2:1 | - | 1 | - | 3V ~ 3.6V | - | - | Programmable Output | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-CSMT (4x4) |
|
|
HPA02235YZFRIC AUDIO/VIDEO SWITCH 81DSBGA |
3,724 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MAX4578CAP+IC MUX CALBRTD HV 8CHAN 20-SSOP |
2,682 |
|
Datasheet |
- | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - |
|
MAX4888AETI+G3UIC SWITCH QUAD SPDT 28TQFN |
8,244 |
|
Datasheet |
- | 28-WFQFN Exposed Pad | Tube | Active | PCI Express® | 2:1 | SPDT | 4 | 7Ohm (Typ) | 1.65V ~ 3.6V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-TQFN (3.5x5.5) |
|
|
MAX4888ETI+G3UIC SWITCH QUAD SPDT 28TQFN |
7,176 |
|
Datasheet |
- | 28-WFQFN Exposed Pad | Tube | Active | PCI Express® | 2:1 | SPDT | 4 | 7Ohm (Typ) | 1.65V ~ 3.6V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-TQFN (3.5x5.5) |
|
|
MAX4888ETI+TG3UIC SWITCH QUAD SPDT 28TQFN |
9,146 |
|
Datasheet |
- | 28-WFQFN Exposed Pad | Tape & Reel (TR) | Active | PCI Express® | 2:1 | SPDT | 4 | 7Ohm (Typ) | 1.65V ~ 3.6V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-TQFN (3.5x5.5) |
|
|
PI3USB30532ZLEIC MUX/DEMUX USB 3.0 40TQFN |
6,200 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tray | Obsolete | USB | 6:1 | - | 1 | - | 3V ~ 3.6V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 40-TQFN (3x6) |
|
|
HV230GA-GIC ANALOG SWITCH 8CH 26FBGA |
9,568 |
|
Datasheet |
- | 26-TFBGA | Tray | Obsolete | Ultrasound | 1:1 | SPST | 8 | 38Ohm | 40V ~ 200V | ±40V ~ 160V | 50MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 26-FBGA (6x5.35) |
|

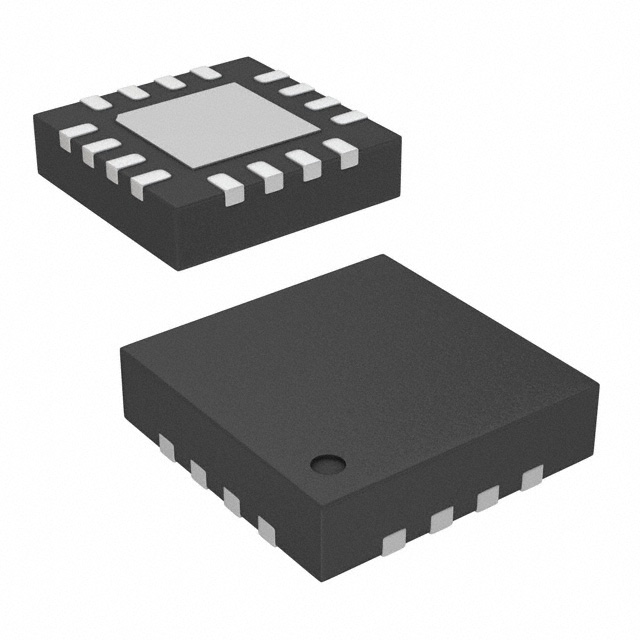

TS4100ITQ1633IC SWITCH 8:1 105 OHM 16QFN |
3,244 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Strip | Obsolete | - | 8:1 | - | 1 | 105Ohm | 0.8V ~ 5.25V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
|
TS4102ITQ1633IC SWITCH 8:1 105 OHM 16QFN |
9,510 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Strip | Obsolete | - | 2:1 | SPDT | 3 | 105Ohm | 0.8V ~ 5.25V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
|
TS4100ITQ1633TIC SWITCH 8:1 105 OHM 16QFN |
3,824 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | 8:1 | - | 1 | 105Ohm | 0.8V ~ 5.25V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
