Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IH5341EWE+DUAL/QUAD RF/VIDEO SWITCHES |
6,720 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Video | 1:1 | SPST | 2 | 75Ohm | - | ±5V ~ 15V | - | Break-Before-Make | -40°C ~ 85°C | - | - | Surface Mount | 16-SOIC |
|
MAX9393ETJ+ANYTHING-TO-LVDS DUAL 2 X 2 CROS |
9,648 |
|
- |
- | 32-WFQFN Exposed Pad | Tube | Obsolete | LVDS | 2:2 | DPDT | 1 | - | 3V ~ 3.6V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-TQFN (5x5) |
|
|
IH5341EWE+TDUAL/QUAD RF/VIDEO SWITCHES |
2,080 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Video | 1:1 | SPST | 2 | 75Ohm | - | ±5V ~ 15V | - | Break-Before-Make | -40°C ~ 85°C | - | - | Surface Mount | 16-SOIC |
|
MAX4903EBL+TG2BLOW-RON, DUAL-SPST/SINGLE-SPDT C |
3,452 |
|
- |
- | 9-WFBGA, WLBGA | Tape & Reel (TR) | Obsolete | Audio | 2:1 | SPDT | 1 | 1Ohm | 1.8V ~ 5.5V | - | 27MHz | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 9-WLP |
|
BA7603F-BZE2IC VIDEO SIGNAL SWITCHERS 16SOP |
9,028 |
|
- |
- | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Video | 2:1 | SPDT | 3 | - | 4.5V ~ 5.5V | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | 16-SOP |
|
AK4708EQIC AV SCART SWITCH 48LQFP |
8,784 |
|
Datasheet |
- | 48-LQFP | Tape & Reel (TR) | Obsolete | Audio, Video | 2:2 | DPDT | 1 | - | 4.75V ~ 5.25V | - | - | RGB, SCART | -10°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|
|
TS5USBA33402YZPRBIC USB SWITCH DSBGA |
6,832 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

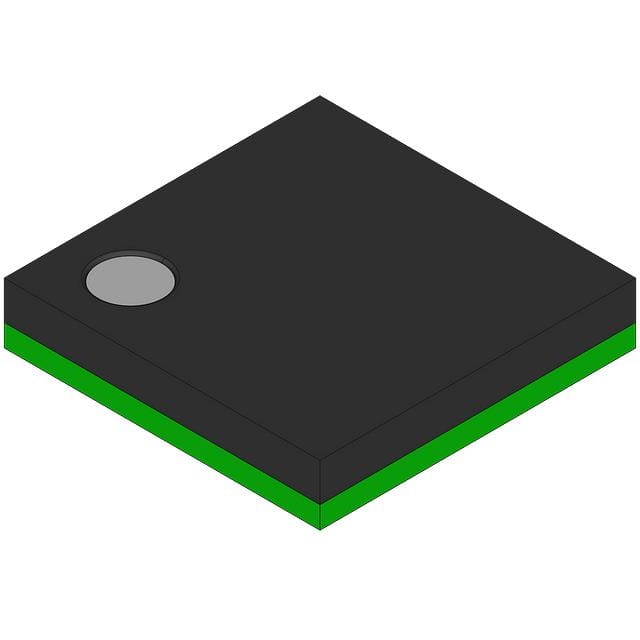

CBTV24DD12ET51812-BIT BUS SWITCH/MULTIPLEXER FO |
5,814 |
|
Datasheet |
- | 48-TFBGA | Bulk | Active | Memory | 2:1 | SPDT | 12 | 9Ohm | 1.62V ~ 3.63V | - | 7.4GHz | - | -10°C ~ 85°C | - | - | - | 48-TFBGA (3x8) |
|
|
NLAS7223CMUTBGIC USB SWITCH DPDT |
6,572 |
|
Datasheet |
- | 10-UFQFN | Bulk | Active | USB | 1:2 | DPDT | 2 | 9.3Ohm (Typ) | 1.65V ~ 4.5V | - | 900MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.4x1.8) |
|
|
SR05-0B00-00SAS3504B0-4-DB |
5,424 |
|
- |
* | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EL4544IGZS2714IC CROSSPOINT VID |
5,402 |
|
- |
- | 356-BBGA | Tray | Obsolete | Video | 16:5 | - | 1 | - | 2.4V ~ 3.6V, 4.75V ~ 5.25V | - | 300MHz | - | -40°C ~ 85°C | - | - | Surface Mount | 356-PBGA (27x27) |
|
|
FSA642SUMXMOSFET |
8,736 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SN55LVCP22W/EM2X2 CROSSPOINT SWITCH : LVDS OUT |
9,474 |
|
- |
- | 16-CFlatPack | Tube | Active | Networking | 2:1, 1:2 | - | 2 | - | 3V ~ 3.6V | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | 16-CFP |
|
|
PEB7084MV12ETHERNET ICS |
3,168 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FSA557UCXMODULE |
9,418 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FSA4486UCXUSB TYPE-C ANALOG AUDIO SWITCH W |
3,582 |
|
Datasheet |
- | 25-UFBGA, WLCSP | Bulk | Discontinued at Digi-Key | Audio, USB | 1:1, 2:1, 3:1 | SPST, SPDT, SP3T | 5 | 6.2Ohm | 2.7V ~ 5.5V | - | 50MHz | I2C, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 25-WLCSP (2.24x2.28) |
|
FSA3051TMX-F147HIGH PERFORMANCE SPDT ANALOG SWI |
3,662 |
|
Datasheet |
- | 6-XFDFN | Bulk | Discontinued at Digi-Key | Telecommunications | 2:1 | SPDT | 1 | 10Ohm | 1.6V ~ 5.5V | - | 1GHz | Bi-Directional, Break-Before-Make | -40°C ~ 85°C | - | - | Surface Mount | 6-TMLP (1X1) |
|
NCN7201MTTWG2:1 GIGABIT ETHERNET LAN SWITCH |
5,566 |
|
- |
- | 42-WFQFN Exposed Pad | Bulk | Discontinued at Digi-Key | Networking | 2:1 | - | 8 | 6Ohm | 3V ~ 3.6V | - | 750MHz | - | -40°C ~ 85°C | - | - | Surface Mount | 42-WQFN (3.5x9) |
