Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MT8815AE1IC ANLG SWITCH ARRAY 8X12 40DIP |
6,946 |
|
Datasheet |
- | 40-DIP (0.600", 15.24mm) | Tube | Obsolete | Telecommunications | 8:12 | - | 1 | 65Ohm | 4.5V ~ 13.2V | ±4.5V | 45MHz | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 40-PDIP |
|
MT8815AP1IC ANLG SWITCH ARRAY 8X12 44PLCC |
6,194 |
|
Datasheet |
- | 44-LCC | Tube | Obsolete | Telecommunications | 8:12 | - | 1 | 65Ohm | 4.5V ~ 13.2V | ±4.5V | 45MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC |
|
|
MT093AP1IC ANALOG SWITCH ARRAY 44PLCC |
8,140 |
|
Datasheet |
- | 44-LCC | Tube | Active | Telecommunications | 8:12 | - | 1 | 65Ohm | 4.5V ~ 14.5V | - | 45MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC |
|
|
MT093APR1IC ANALOG SWITCH ARRAY 44PLCC |
4,112 |
|
Datasheet |
- | 44-LCC | Tape & Reel (TR) | Active | Telecommunications | 8:12 | - | 1 | 65Ohm | 4.5V ~ 14.5V | - | 45MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC |
|

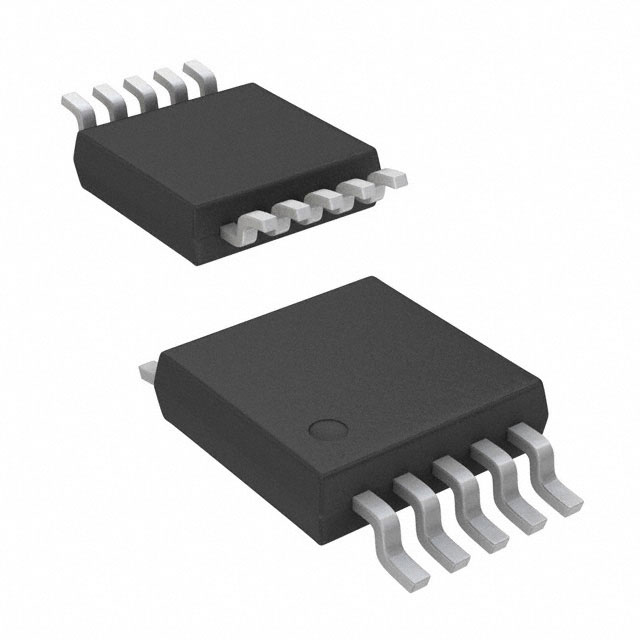

CLCUSB30IMP10XIC USB SWITCH 2X2 10MSOP |
2,146 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | USB | - | DPDT | 1 | 6.5Ohm | 3V ~ 4.3V | - | 720MHz | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
DG540DJIC SWITCH QUAD SPST 20DIP |
4,394 |
|
Datasheet |
- | 20-DIP (0.300", 7.62mm) | Tube | Obsolete | Video | 1:1 | SPST | 4 | 60Ohm | 3V ~ 15V | ±3V ~ 15V | 500MHz | RGB, T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Through Hole | 20-PDIP |
|
DG541DYIC SWITCH QUAD SPST 16SOIC |
5,530 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Video | 1:1 | SPST | 4 | 60Ohm | 3V ~ 15V | ±3V ~ 15V | 500MHz | RGB, T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
TC7WB67CL8X,LFIC BUS SWITCH SPST DUAL MP8 |
4,468 |
|
- |
- | 8-UFLGA | Tape & Reel (TR) | Active | - | 1:1 | SPST | 2 | 10Ohm | 1.65V ~ 5.5V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | MP8 |
|

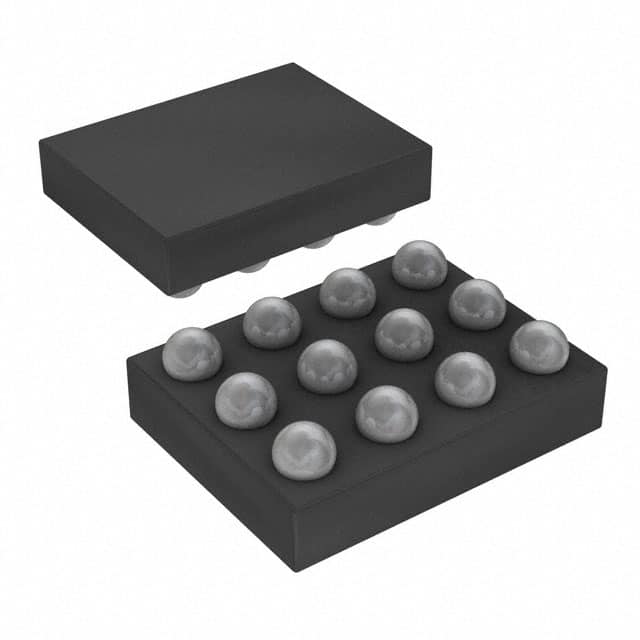

FSA550UCXIC ISOLATION SWITCH 4PST 12WLCSP |
3,752 |
|
Datasheet |
- | 12-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Audio | - | 4PST | 1 | 800mOhm (Typ) | 1.6V ~ 3V | - | 50MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-WLCSP (1.16x1.56) |
|
|
FSA550BUCXIC ISOLATION SWITCH 4PST 12WLCSP |
3,354 |
|
Datasheet |
- | 12-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Audio | - | 4PST | 1 | 800mOhm (Typ) | 1.6V ~ 3V | - | 50MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-WLCSP (1.16x1.56) |
|
PI2DDR3212NCEXIC MUX/DEMUX 2:1 DDE3 48TFBGA |
3,518 |
|
- |
- | 48-TFBGA | Tape & Reel (TR) | Obsolete | Memory | 2:1 | - | 14 | 8Ohm (Typ) | 1.5V, 1.8V | - | 2.7GHz | DDR3 | - | - | - | Surface Mount | 48-TFBGA (4.5x4.5) |
 Exp Pad.jpg)
|
PI2DDR3212ZLEXIC SWITCH 2:1 DDR3 14BIT 52TQFN |
5,530 |
|
- |
- | 52-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Memory | 2:1 | - | 14 | 8Ohm (Typ) | 1.5V, 1.8V | - | 2.7GHz | DDR3 | - | - | - | Surface Mount | 52-TQFN (3.5x9) |
|
PI2PCIE2214ZHEXIC MUX/DEMUX 4:1 2.6GHZ 42TQFN |
7,096 |
|
Datasheet |
- | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | PCI Express® | 4:1 | - | 2 | - | 1.8V | - | 2.6GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
|
PI2PCIE2442ZHEXIC SWITCH 8 X 2:4 42TQFN |
8,894 |
|
Datasheet |
- | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | PCI Express® | 4:2 | - | 8 | 10Ohm | 1.5V ~ 1.8V | - | 2.5GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
|
PI3PCIE3412ZHEXIC MUX/DEMUX 2:1 ETHERNET 42TQFN |
5,186 |
|
Datasheet |
PCI Express® (PCIe) | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | PCI Express® | 2:1 | - | 4 | 5Ohm (Typ) | 3V ~ 3.6V | - | 8.2GHz | Bi-Directional, SATA, USB 3.0 | - | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
|
PI3PCIE3413ZHEXIC MUX/DEMUX 3:1 8.3GHZ 42TQFN |
5,242 |
|
Datasheet |
PCI Express® (PCIe) | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | PCI Express® | 3:1 | - | 1 | - | 3V ~ 3.6V | - | 8.3GHz | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
|
PI3PCIE3415ZHEXIC PCIE 3.0 SIGNAL SWITCH 42TQFN |
8,654 |
|
Datasheet |
PCI Express® (PCIe) | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | PCI Express® | 2:1 | - | 4 | - | 3V ~ 3.6V | - | 8.7GHz | Bi-Directional, SATA, USB 3.0 | - | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
|
PI3PCIE3422ZHEXIC MUX/DEMUX 8 X SPST 42TQFN |
9,544 |
|
Datasheet |
- | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | PCI Express® | 2:1 | - | 2 | 15Ohm | 3V ~ 3.6V | - | 7GHz | Bi-Directional | - | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
PI3USB14-ALEIC USB SWITCH 4:1 16TSSOP |
3,756 |
|
- |
- | 16-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | USB | 4:1 | - | 2 | 8Ohm | 3.3V | - | 815MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
PI3USB14-AQEIC USB SWITCH 4:1 16QSOP |
4,156 |
|
- |
- | 16-SSOP (0.154", 3.90mm Width) | Tube | Obsolete | USB | 4:1 | - | 2 | 8Ohm | 3.3V | - | 815MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
