Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PI5V330AQEXIC SWITCH 2:1 10 OHM RGB 16SSOP |
8,138 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Video | 2:1 | - | 4 | 10Ohm | 5V | - | 400MHz | Bi-Directional, RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
MAX4740HETE+TIC SWITCH QUAD SPDT 16TQFN |
3,638 |
|
- |
- | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Audio | 2:1 | SPDT | 4 | 900mOhm | 1.6V ~ 5.5V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
|
MAX4887ETE+IC SWITCH VIDEO TRPL 16TQFN |
7,784 |
|
- |
- | 16-WFQFN Exposed Pad | Strip | Obsolete | Video | 2:1 | SPDT | 3 | 6.5Ohm | 4.5V ~ 5.5V | - | 500MHz | Break-Before-Make, RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
MAX4888AETI/V+TIC SWITCH QUAD SPDT 28TQFN |
2,002 |
|
Datasheet |
- | 28-TQFN Exposed Pad | Tape & Reel (TR) | Obsolete | PCI Express® | 2:1 | SPDT | 4 | 7Ohm (Typ) | 1.65V ~ 3.6V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-QFN |
|
DG534ADJ-E3IC AMP/VIDEO/MUX LP 4/8CH 20DIP |
8,664 |
|
Datasheet |
- | 20-DIP (0.300", 7.62mm) | Bulk | Obsolete | Ultrasound, Video | 2:1 | SPDT | 2 | 90Ohm | 10V ~ 21V | - | 500MHz | T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Through Hole | 20-PDIP |
|
PI3PCIE3242ZLEXIC MUX/DEMUX 2:2 30TQFN |
3,314 |
|
Datasheet |
- | 30-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | 2:2 | DPDT | 4 | - | 3V ~ 3.6V | - | 6.5GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 30-TQFN (2.5x4.5) |
|
STMUX1800EQTRIC MUX/DEMUX 16X8 42QFN |
4,576 |
|
Datasheet |
- | 42-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Audio, Telecommunications, Video | 2:1 | SPDT | 11 | 6.5Ohm | 3V ~ 3.6V | - | 600MHz | 10/100/1000, Bi-Directional, LAN | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-QFN-EP (3.5x9) |
|
PI3L301DAEXIC MUX/DEMUX 2:1 8 OHM 48TSSOP |
2,940 |
|
Datasheet |
- | 48-TFSOP (0.240", 6.10mm Width) | Tape & Reel (TR) | Obsolete | Telecommunications | 2:1 | - | 8 | 8Ohm | 3V ~ 3.6V | - | 700MHz | 10/100/1000 Base-T | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-TSSOP |
|
MAX4546CPEIC SW BIDIRECT RF VIDEO 16-DIP |
6,976 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Bag | Obsolete | Video | 1:1 | SPST | 2 | 20Ohm | 2.7V ~ 12V | ±2.7V ~ 6V | 300MHz | Bi-Directional, Break-Before-Make, T-Switch Configuration | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
MAX4546CSEIC SW BIDIRECT RF VIDEO 16-SOIC |
8,062 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Video | 1:1 | SPST | 2 | 20Ohm | 2.7V ~ 12V | ±2.6V ~ 6V | 300MHz | Bi-Directional, Break-Before-Make, T-Switch Configuration | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX4547CPEIC VIDEO SWITCH DUAL SPDT 16DIP |
9,382 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Video | 2:1 | SPDT | 2 | 20Ohm | 2.7V ~ 12V | ±2.7V ~ 6V | 300MHz | Bi-Directional, Break-Before-Make, T-Switch Configuration | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
MAX4547CSEIC SW BIDIRECT RF VIDEO 16-SOIC |
4,726 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Video | 2:1 | SPDT | 2 | 20Ohm | 2.7V ~ 12V | ±2.7V ~ 6V | 300MHz | Bi-Directional, Break-Before-Make, T-Switch Configuration | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG540DJ-E3IC SWITCH QUAD SPST 20DIP |
9,484 |
|
Datasheet |
- | 20-DIP (0.300", 7.62mm) | Bulk | Obsolete | Video | 1:1 | SPST | 4 | 60Ohm | 3V ~ 15V | ±3V ~ 15V | 500MHz | RGB, T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Through Hole | 20-PDIP |
|
MAX4587EUB+IC AUDIO/VIDEO MUXI 4X1 10UMAX |
7,246 |
|
- |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Obsolete | Audio, Video | 4:1 | - | 1 | 65Ohm | 2.7V ~ 5.5V | - | 300MHz | Break-Before-Make, SPI | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|

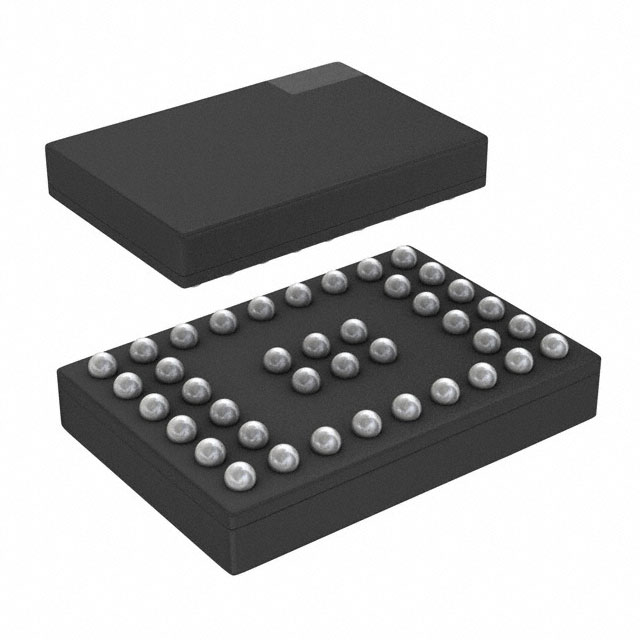

CBTL08GP053EVYIC MUX CROSSBAR SW USB VFBGA40 |
7,342 |
|
Datasheet |
- | 40-VFBGA | Tape & Reel (TR) | Obsolete | USB | - | - | - | 10Ohm | 1.8V | - | 8.5GHz | - | -40°C ~ 105°C (TA) | - | - | Surface Mount | 40-VFBGA (4.75x3.25) |
|
CBTL06GP212EE,118IC MUX 6CH DISPLAY PORT 48TFBGA |
5,778 |
|
Datasheet |
- | 48-TFBGA | Tape & Reel (TR) | Obsolete | DisplayPort, PCIe | 2:1, 4:1 | - | 6 | 6Ohm | 3.3V | - | 5GHz | Bi-Directional | -40°C ~ 105°C (TA) | - | - | Surface Mount | 48-TFBGA (5x5) |
|
|
MAX4764EUB+TIC SWITCH DUAL SPDT 10UMAX |
5,156 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Audio | 2:1 | SPDT | 2 | 850mOhm | 1.8V ~ 5.5V | - | 27MHz | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
MAX14885EETL+TIC SWITCH 2:2 DUAL GRAPH 40TQFN |
6,444 |
|
- |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Video | 2:2 | - | 1 | 8Ohm | 4.5V ~ 5.5V | - | 700MHz | Buffered, RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 40-TQFN (5x5) |
|
MAX4565CAPIC VIDEO SWITCH QUAD SPST 20SSOP |
6,752 |
|
Datasheet |
- | 20-SSOP (0.209", 5.30mm Width) | Tube | Obsolete | Video | 1:1 | SPST | 4 | 60Ohm | 2.7V ~ 12V | ±2.7V ~ 6V | 350MHz | Bi-Directional, T-Switch Configuration | 0°C ~ 70°C (TA) | - | - | Surface Mount | 20-SSOP |
|
MAX4565EWPIC VIDEO SWITCH QUAD SPST 20SOIC |
4,426 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Video | 1:1 | SPST | 4 | 60Ohm | 2.7V ~ 12V | ±2.7V ~ 6V | 350MHz | Bi-Directional, T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-SOIC |
