Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSAV430QSCXIC VIDEO SWITCH QUAD 2X1 16QSOP |
6,942 |
|
- |
- | 16-LSSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Video | 2:1 | SPDT | 4 | 6Ohm | 3V ~ 3.6V | - | 1.1GHz | Bi-Directional, RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
FSUSB40L10XIC USB SWITCH DPDT 10MICROPAK |
6,812 |
|
Datasheet |
- | 10-UFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | - | DPDT | 1 | 6.5Ohm | 3V ~ 4.3V | - | 720MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MicroPak™ |
|
MAX4850ETE+TIC SWITCH DUAL SPDT 16TQFN |
3,234 |
|
- |
- | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Audio, USB | 2:1 | SPDT | 2 | 9Ohm | 2V ~ 5.5V | - | 135MHz | Break-Before-Make, USB 1.1, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
FSUSB22BQXIC USB SWITCH QUAD 2X1 16DQFN |
9,736 |
|
- |
- | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | 2:1 | SPDT | 4 | 6.5Ohm | 3V ~ 3.6V | - | 750MHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-DQFN (2.5x3.5) |
|

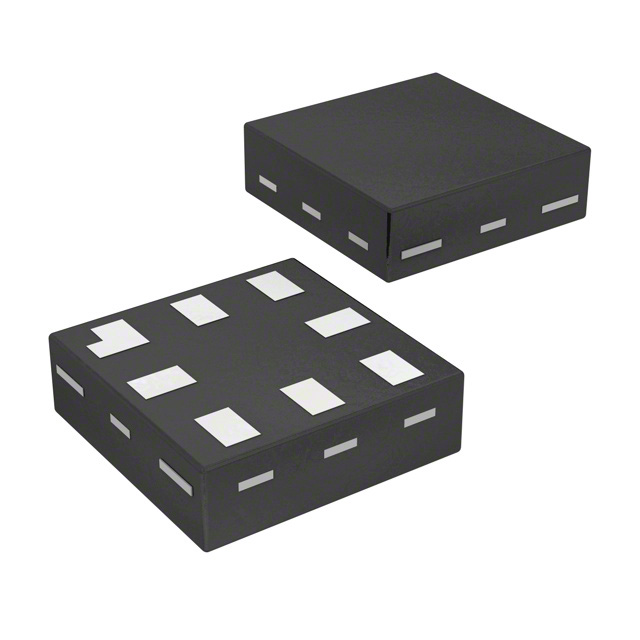

PI3USB32XAEXIC USB SWITCH 8TLLGA |
4,982 |
|
- |
- | 8-UFLGA | Tape & Reel (TR) | Obsolete | USB | 2:1 | - | 1 | 10Ohm | 3V ~ 4.3V | - | 2.11GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TLLGA (1.5x1.5) |
|
MAX4906FELB+TG24IC USB SWITCH DUAL 1X2 10UDFN |
9,698 |
|
Datasheet |
- | 10-WFDFN | Tape & Reel (TR) | Obsolete | USB | 2:1 | SPDT | 2 | 7Ohm | 3V ~ 3.6V | - | 1GHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-µDFN (2x2) |
|
MAX4764ETB+TG104IC SWITCH DUAL SPDT 10TDFN |
7,544 |
|
Datasheet |
- | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Audio | 2:1 | SPDT | 2 | 850mOhm | 1.8V ~ 5.5V | - | 27MHz | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
CBTU04082BS,518IC MUX 4 X 2:1 42HVQFN |
6,628 |
|
Datasheet |
- | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | DisplayPort, PCIe, Video | 2:1 | - | 4 | - | 1.8V ~ 2V | - | 4.1GHz | LVDS, SATA | -40°C ~ 105°C (TA) | - | - | Surface Mount | 42-HVQFN (3.5x9) |
|
PI3V514BEIC VIDEO MUX/DEMUX 4X1 48BQSOP |
8,512 |
|
Datasheet |
- | 48-FSOP (0.154", 3.90mm Width) | Tube | Obsolete | Video | 4:1 | - | 5 | 8Ohm | 2.5V, 3.3V | - | 400MHz | RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-BQSOP |
|
PI3VDP3212ZLE+DAIC DEMULTIPLEXER 2LANE 32TQFN |
4,672 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tray | Obsolete | Video | 2:1 | - | 1 | 10Ohm (Typ) | 3.3V | - | 4.7GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-TQFN (3x6) |
|
|
MAX4745HELB+TIC SWITCH DUAL SPDT 10UDFN |
3,828 |
|
- |
- | 10-WFDFN | Tape & Reel (TR) | Obsolete | Audio | 2:1 | SPDT | 2 | 950mOhm | 1.8V ~ 5.5V | - | - | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-µDFN (2x2) |
|
MAX4587EUB+TIC AUDIO/VIDEO MUXI 4X1 10UMAX |
3,128 |
|
- |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Audio, Video | 4:1 | - | 1 | 65Ohm | 2.7V ~ 5.5V | - | 300MHz | Break-Before-Make, SPI | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
MAX14510EEVB+TIC AUD SWITCH USB 2.0 HS 10UTQFN |
2,152 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Active | Audio, USB | 2:1, 2:2 | - | 2 | 5Ohm | 2.7V ~ 5V | - | 950MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.4x1.8) |
|
MAX4908EBC+TIC MULTIPLEXER DUAL 3X1 12UCSP |
7,378 |
|
Datasheet |
- | 12-WFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | Audio | 3:1 | SP3T | 2 | 750mOhm | 1.8V ~ 5.5V | - | - | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UCSP |
|
PI3CH1012QEIC SWITCH SPST 500MHZ 24QSOP |
4,432 |
|
Datasheet |
- | 24-SSOP (0.154", 3.90mm Width) | Tube | Obsolete | - | 1:1 | SPST | 10 | 8Ohm | 3.3V | - | 500MHz | Differential Compatibility | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-QSOP |
|
PI3WVR31313AZLEXIC MUX/DEMUX 3:1 15 OHM 60TQFN |
6,034 |
|
Datasheet |
- | 60-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | HDMI | 3:1 | - | 4 | 50Ohm | 3V ~ 3.6V | - | 5.6GHz | - | - | - | - | Surface Mount | 60-TQFN (5x9) |
|
|
PI3L110QEXIC ETHERNET SWITCH QUAD 16QSOP |
6,868 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Telecommunications | 2:1 | - | 4 | 8Ohm | 3V ~ 3.6V | - | 350MHz | 10/100 Base-T | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
NJU7311AM#IC SWITCH DUAL SPST 30DMP |
6,246 |
|
Datasheet |
- | - | Tube | Obsolete | - | - | - | 1 | 200Ohm | - | ±8V ~ 16V | - | - | -30°C ~ 75°C (TA) | - | - | Surface Mount | 30-SO |
|
MAX4908EWC+TIC MULTIPLEXER DUAL 3X1 12WLP |
8,622 |
|
Datasheet |
- | 12-WFBGA, WLBGA | Tape & Reel (TR) | Active | Audio | 3:1 | SP3T | 2 | 750mOhm | 1.8V ~ 5.5V | - | - | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-WLP (2.14x1.56) |
|
TS5L100DG4IC ETHERNET SWITCH QUAD 16SOIC |
6,376 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Discontinued at Digi-Key | Networking | 2:1 | SPDT | 4 | 19Ohm | 6V ~ 6.5V | - | 350MHz | 10/100 Base-T | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
