Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4570EAI+IC CROSSPOINT SWITCH DUAL 28SSOP |
828 |
|
Datasheet |
- | 28-SSOP (0.209", 5.30mm Width) | Tube | Active | Audio, Video | 4:2 | - | 2 | 80Ohm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 14MHz | Break-Before-Make, Clickless, SPI | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SSOP |
|
ADG2128BCPZ-HS-RL7IC CROSSPOINT SWIT 8X12 32LFCSP |
624 |
|
Datasheet |
- | 32-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Telecommunications, Ultrasound | 12:8 | - | 1 | 50Ohm | 12V | ±5V | 210MHz | I2C | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-LFCSP-VQ (5x5) |
|
|
ADG2128YCPZ-REEL7IC CROSSPOINT SWIT 8X12 32LFCSP |
6,962 |
|
Datasheet |
- | 32-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Telecommunications, Ultrasound | 12:8 | - | 1 | 50Ohm | 12V | ±5V | 210MHz | I2C | -40°C ~ 125°C (TA) | - | - | Surface Mount | 32-LFCSP-VQ (5x5) |
|
HV2761FG-GIC SWITCH SPST 50MHZ 48LQFP |
580 |
|
Datasheet |
- | 48-LQFP | Tray | Active | Ultrasound | 1:1 | SPST | 24 | 26Ohm (Typ) | 40V ~ 200V | ±40V ~ 160V | 50MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|
|
HV20220FG-GIC ULTRASOUND SWITCH 1:1 48LQFP |
472 |
|
Datasheet |
- | 48-LQFP | Tray | Active | Ultrasound | 1:1 | SPST | 8 | 38Ohm | 40V ~ 200V | ±40V ~ 160V | 50MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|

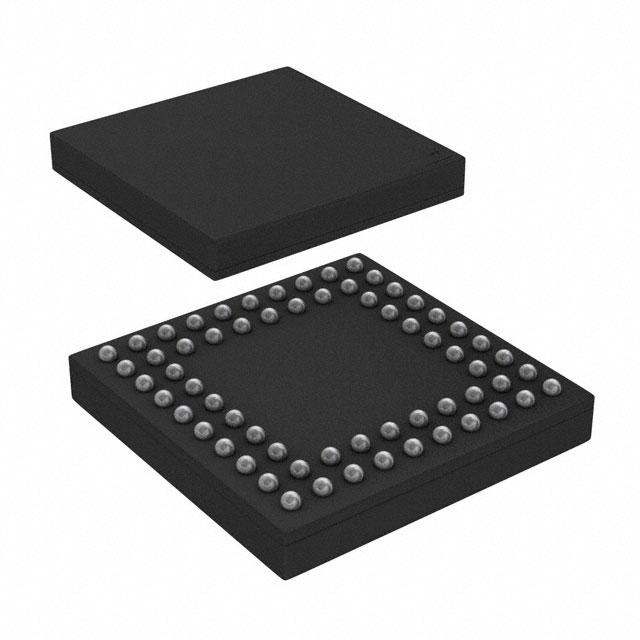

HV2662GA-GIC SWITCH 24 X SPST 78VFBGA |
1,996 |
|
Datasheet |
- | 64-VFBGA | Tray | Active | Ultrasound | 1:1 | SPST | 24 | 26Ohm (Typ) | 40V ~ 200V | ±40V ~ 160V | 50MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 64-VFBGA (7x7) |
|
|
HV2631FG-GIC SWITCH SPST 32 OHM 48LQFP |
3,382 |
|
Datasheet |
- | 48-LQFP | Tray | Active | Ultrasound | 1:1 | SPST | 16 | 32Ohm | 50V ~ 110V | ±10V ~ 220V | 50MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|
MAX4359EWG+IC VIDEO CROSSPOINT SWIT 24SOIC |
9,704 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Video | 4:4 | - | 1 | - | - | ±4.5V ~ 5.5V | 65MHz | Bi-Directional, Buffered, T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-SOIC |
|
MAX311CWN+IC VIDEO MULTIPLEXER 4X1 18SOIC |
4,678 |
|
Datasheet |
- | 18-SOIC (0.295", 7.50mm Width) | Tube | Active | Video | 4:1 | - | 2 | 250Ohm | 9V ~ 36V | ±4.5V ~ 18V | - | Break-Before-Make | 0°C ~ 70°C (TA) | - | - | Surface Mount | 18-SOIC |
|
MAX4986ETO+IC MUX/DEMUX SAS/SATA 42TQFN |
1,274 |
|
Datasheet |
- | 42-WFQFN Exposed Pad | Tray | Active | Telecommunications | 2:1 | - | 1 | - | 3V ~ 3.6V | - | - | SAS/SATA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (3.5x9) |
|

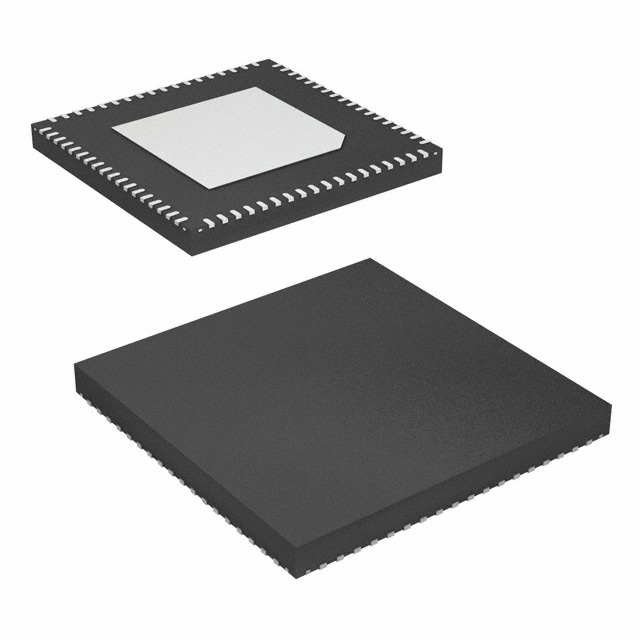

ADV3229ACPZIC CROSSPOINT SW 16X8 72LFCSP |
6,540 |
|
Datasheet |
- | 72-VFQFN Exposed Pad, CSP | Bulk | Active | Telecommunications, Video | 8:8 | - | 1 | - | - | ±4.5V ~ 5.5V | 900MHz | Buffered | -40°C ~ 85°C (TA) | - | - | Surface Mount | 72-LFCSP-VQ (10x10) |
|
AD8113JSTZIC VIDEO CROSSPOINT SWIT 100LQFP |
7,930 |
|
Datasheet |
- | 100-LQFP | Tray | Active | Audio, Video | 16:16 | - | 1 | - | - | ±5V ~ 12V | 60MHz | Buffered | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-LQFP (14x14) |
|
|
ADV3224ACPZIC CROSSPOINT SW 16X8 72LFCSP |
9,150 |
|
Datasheet |
- | 72-VFQFN Exposed Pad, CSP | Tray | Active | Telecommunications, Video | 16:8 | - | 1 | - | - | ±4.5V ~ 5.5V | 1.2GHz | Buffered | -40°C ~ 85°C (TA) | - | - | Surface Mount | 72-LFCSP-VQ (10x10) |
|
AD8111ASTZIC VIDEO CROSSPOINT SWIT 80LQFP |
4,100 |
|
Datasheet |
- | 80-LQFP | Bulk | Active | Video | 16:8 | - | 1 | - | - | ±4.5V ~ 5.5V | 260MHz | Buffered | -40°C ~ 85°C (TA) | - | - | Surface Mount | 80-LQFP (12x12) |
|
|
AD8110ASTZIC VIDEO CROSSPOINT SWIT 80LQFP |
8,378 |
|
Datasheet |
- | 80-LQFP | Tray | Active | Video | 16:8 | - | 1 | - | - | ±4.5V ~ 5.5V | 260MHz | Buffered | -40°C ~ 85°C (TA) | - | - | Surface Mount | 80-LQFP (12x12) |
|
VSC3316YYPIC CROSSPOINT SWITCH 16X16 |
2,786 |
|
Datasheet |
- | - | Tray | Active | Backplane, Telecommunications, Video | 16:16 | - | 16 | - | 2.5V | - | - | Advanced Signal Equalization | - | - | - | Surface Mount | 196-FCBGA (15x15) |
|
VSC7549TSN-V/5CC90G INDUSTRIAL ETHERNET SWITCH |
6,162 |
|
Datasheet |
- | 888-BFBGA, FCBGA | Tube | Active | Networking | - | - | - | - | 0.9V ~ 1.9V, 1.5V ~ 3.3V | - | - | - | -40°C ~ 110°C | - | - | Surface Mount | 888-FCBGA (25x25) |
|
ADV3227ACPZIC CROSSPOINT SW 16X16 100LFCSP |
8,860 |
|
Datasheet |
- | 100-VFQFN Exposed Pad | Tray | Active | Telecommunications, Video | 16:16 | - | 1 | - | - | ±4.5V ~ 5.5V | 750MHz | Buffered | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-LFCSP-VQ (12x12) |
|
|
ADV3226ACPZIC CROSSPOINT SW 16X16 100LFCSP |
9,226 |
|
Datasheet |
- | 100-VFQFN Exposed Pad | Tray | Active | Telecommunications, Video | 16:16 | - | 1 | - | - | ±4.5V ~ 5.5V | 820MHz | Buffered | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-LFCSP-VQ (12x12) |
|
|
AD8115ASTZIC VIDEO CROSSPOINT SWIT 100LQFP |
8,200 |
|
Datasheet |
- | 100-LQFP | Bulk | Active | Video | 16:16 | - | 1 | - | - | ±4.5V ~ 5.5V | 225MHz | Buffered | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-LQFP (14x14) |
