Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HV20220PJ-G-M904IC ULTRASOUND SWITCH 1:1 28PLCC |
2,320 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tape & Reel (TR) | Active | Ultrasound | 1:1 | SPST | 8 | 38Ohm | 40V ~ 200V | ±40V ~ 160V | 50MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 28-PLCC (11.5x11.5) |
|
HV2601FG-GIC SWITCH SPST 38 OHM 48LQFP |
808 |
|
Datasheet |
- | 48-LQFP | Tray | Active | Ultrasound | 1:1 | SPST | 16 | 38Ohm | 40V ~ 200V | ±40V ~ 160V | 50MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|
MAX4360EAX+IC VIDEO CROSSPOINT SWIT 36SSOP |
4,478 |
|
Datasheet |
- | 36-BSOP (0.295", 7.50mm Width) | Tube | Active | Video | 8:4 | - | 1 | - | - | ±4.5V ~ 5.5V | 65MHz | Bi-Directional, Buffered, T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-SSOP |
|
HV2802GA-GIC SWITCH 32 X SPST 78VFBGA |
848 |
|
Datasheet |
- | 78-VFBGA | Tray | Active | Ultrasound | 1:1 | SPST | 32 | 38Ohm | 40V ~ 200V | ±40V ~ 160V | - | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 78-VFBGA (9x9) |
|
HV2901K6-GIC SWITCH 2:1 50MHZ 64VFQFN |
1,278 |
|
Datasheet |
- | 64-VFQFN Exposed Pad | Tray | Active | Ultrasound | 2:1 | - | 32 | 38Ohm | 40V ~ 200V | ±40V ~ 160V | 50MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 64-QFN (9x9) |
|
|
HV2733FG-GIC SWITCH SPDT 38 OHM 48LQFP |
404 |
|
Datasheet |
- | 48-LQFP | Tray | Active | Ultrasound | 2:1 | SPDT | 16 | 38Ohm | 40V ~ 200V | ±40V ~ 160V | 50MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|

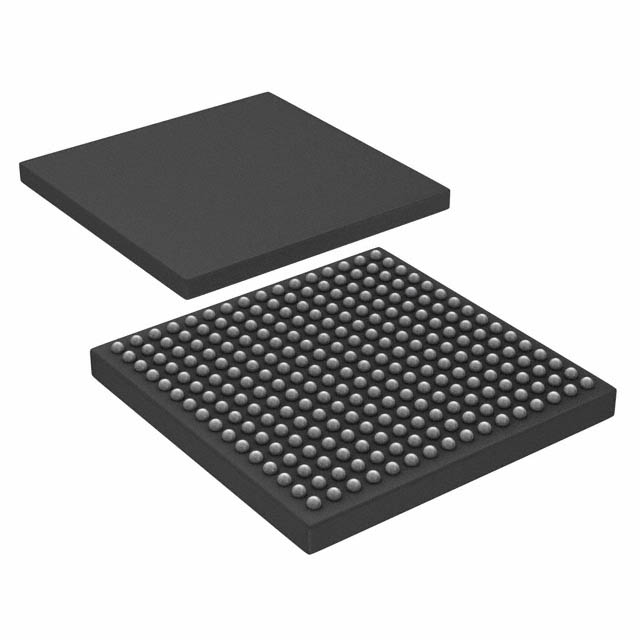

VSC7514XKSIC ETHERNET SWITCH 10-PORT |
266 |
|
Datasheet |
Ocelot™-10 | 256-BGA | Tray | Active | Networking | - | - | 10 | - | - | - | - | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 256-PBGA (17x17) |
|
HV2903/AHAHV MUX (SPST) |
324 |
|
Datasheet |
- | 132-TFBGA | Tray | Active | Ultrasound | 1:1 | SPST | 32 | 15Ohm | - | ±4.5V ~ 6.3V | 50MHz | - | 0°C ~ 70°C | - | - | Surface Mount | 132-TFBGA (12x12) |
|
AD8109ASTZIC VIDEO CROSSPOINT SWIT 80LQFP |
498 |
|
Datasheet |
- | 80-LQFP | Tray | Active | Video | 8:8 | - | 1 | - | - | ±4.5V ~ 5.5V | 250MHz | Buffered | -40°C ~ 85°C (TA) | - | - | Surface Mount | 80-LQFP (12x12) |
|
PEX8747-CA80BC GIC PCI EXPRESS SWITCH 676FCBGA |
1,086 |
|
Datasheet |
ExpressLane™ | - | Tray | Active | PCI Express® | - | - | - | - | - | - | - | Configurable | - | - | - | Surface Mount | 676-FCBGA (27x27) |
|
|
PEX8732-CA80BC GIC PCI EXPRESS SWITCH 676FCBGA |
894 |
|
Datasheet |
ExpressLane™ | - | Tray | Active | PCI Express® | - | - | - | - | - | - | - | Configurable | - | - | - | Surface Mount | 676-FCBGA (27x27) |
|
TC7W53FK,LFIC MUX/DEMUX 2:1 100OHM 8SSOP |
48,836 |
|
- |
- | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | - | - | - | 2 | 100Ohm | 2V ~ 6V | ±2V ~ 6V | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SSOP |
|
NX3DV221TKXIC USB 2.0 SWITCH HS 10HVSON |
19,324 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | - | 1 | 7Ohm | 2.3V ~ 3.6V | - | 1GHz | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-HVSON (3x3) |
|
TS3USB3200RSVRIC SW USB/MHL DPDT 16UQFN |
16,974 |
|
Datasheet |
- | 16-UFQFN | Tape & Reel (TR) | Active | USB | - | SPDT, DPDT | 2 | 4.6Ohm (USB), 5.7Ohm (MHL) (Typ) | 2.7V ~ 4.3V | - | 5.5GHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UQFN (2.6x1.8) |
|

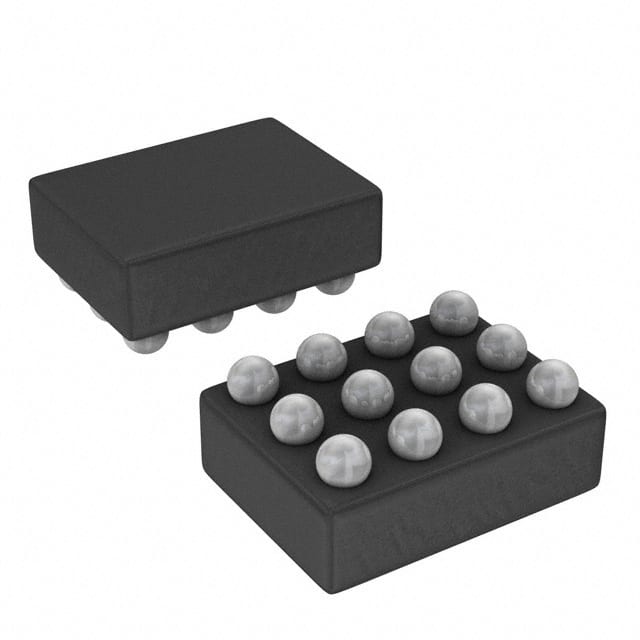

TS5USBC400IYFPRTS5USBC400 |
29,444 |
|
Datasheet |
- | 12-XFBGA, DSBGA | Tape & Reel (TR) | Active | USB, UART | 2:1, 1:2 | - | 2 | 9Ohm | 2.3V ~ 5.5V | - | 1.1GHz | Bi-Directional | -40°C ~ 85°C | - | - | Surface Mount | 12-DSBGA |
|
TS5V330PWRIC VIDEO SWIT QUAD SPDT 16TSSOP |
2,692 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Video | 2:1 | SPDT | 4 | 10Ohm | 4V ~ 5.5V | - | 300MHz (Min) | Bi-Directional, RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
TS3USBCA410RSVTSBU MUX 3TO1 W/ MIC AND GND |
23,070 |
|
Datasheet |
- | 16-UFQFN | Tape & Reel (TR) | Active | USB | 3:1 | - | 1 | 7.1Ohm | 2.4V ~ 5.5V | - | 550MHz | USB 2.0 | 0°C ~ 70°C | - | - | Surface Mount | 16-UQFN (2.6x1.8) |
|
TPS66020YBGRSOURCE AND SINK POWER MULTIPEXER |
6,432 |
|
Datasheet |
- | 28-XFBGA, DSBGA | Tape & Reel (TR) | Active | - | - | - | 1 | - | 2.85V ~ 3.6V | - | - | - | -10°C ~ 85°C (TA) | - | - | Surface Mount | 28-DSBGA (1.61x2.81) |
|
|
TPS66021YBGRSOURCE AND SINK POWER MULTIPEXER |
5,798 |
|
Datasheet |
- | 28-XFBGA, DSBGA | Tape & Reel (TR) | Active | - | - | - | 1 | - | 4.5V ~ 5.5V | - | - | - | -10°C ~ 85°C (TA) | - | - | Surface Mount | 28-DSBGA (1.61x2.81) |
|
|
TS3USBCA410IRSVTSBU MUX 3TO1 W/ MIC AND GNDIND T |
950 |
|
Datasheet |
- | 16-UFQFN | Tape & Reel (TR) | Active | USB | 3:1 | - | 1 | 7.1Ohm | 2.4V ~ 5.5V | - | 550MHz | USB 2.0 | -40°C ~ 85°C | - | - | Surface Mount | 16-UQFN (2.6x1.8) |
