IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTCV40H60CT1GIGBT MODULE 600V 80A 176W SP1 |
11,346 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Full Bridge | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|

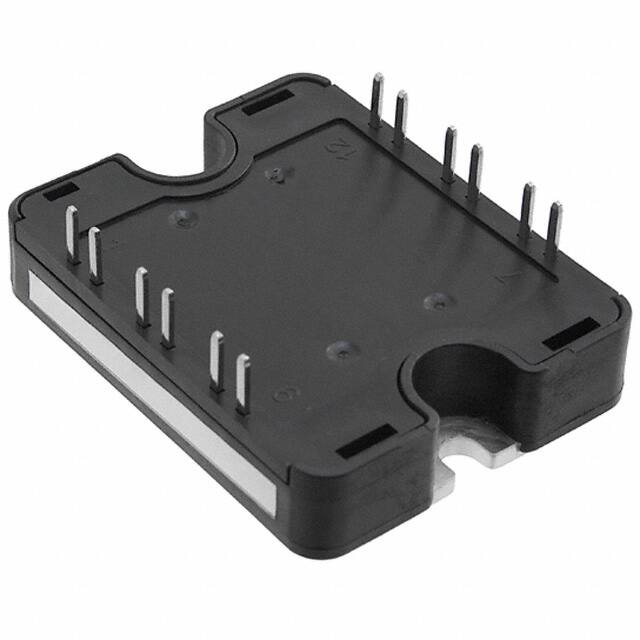

APTGT75H60T1GIGBT MODULE 600V 100A 250W SP1 |
14,624 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTGT30X60T3GIGBT MODULE 600V 50A 90W SP3 |
19,082 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Three Phase Inverter | 600 V | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
FP30R06YE3B4BOMA1IGBT MODULE LOW PWR EASY2-1 |
15,536 |
|
- |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS150R12N2T7BPSA2LOW POWER ECONO |
16,436 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 1.2 µA | 30.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2 |
|
APTGT50DDA120T3GIGBT MODULE 1200V 75A 270W SP3 |
15,576 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Dual Boost Chopper | 1200 V | 75 A | 270 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
MKI75-12E8IGBT MODULE 1200V 130A 500W E3 |
8,570 |
|
- |
- | E3 | Box | Obsolete | NPT | Full Bridge Inverter | 1200 V | 130 A | 500 W | 2.5V @ 15V, 75A | 1.1 mA | 5.7 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
APTGL325DA120D3GIGBT MODULE 1200V 420A 1500W D3 |
8,120 |
|
- |
- | D-3 Module | Bulk | Obsolete | Trench Field Stop | Single | 1200 V | 420 A | 1500 W | 2.2V @ 15V, 300A | 5 mA | 18.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
|
APTGL325SK120D3GIGBT MODULE 1200V 420A 1500W D3 |
10,894 |
|
- |
- | D-3 Module | Bulk | Obsolete | Trench Field Stop | Single | 1200 V | 420 A | 1500 W | 2.2V @ 15V, 300A | 5 mA | 18.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
|
MIXG360RF1200P-PCIGBT MODULE MIXG360RF1200PTED-PC |
10,114 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS150R12N2T7B15BPSA1LOW POWER ECONO |
13,886 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 12 µA | 30.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
APTGF360U60D4GIGBT MODULE 600V 450A 1560W D4 |
19,088 |
|
- |
- | D4 | Bulk | Obsolete | NPT | Single | 600 V | 450 A | 1560 W | 2.45V @ 15V, 360A | 500 µA | 17 nF @ 25 V | Standard | No | - | Chassis Mount | D4 |
|
APTGF150DU120TGIGBT MODULE 1200V 200A 961W SP4 |
17,788 |
|
- |
- | SP4 | Bulk | Obsolete | NPT | Dual, Common Source | 1200 V | 200 A | 961 W | 3.7V @ 15V, 150A | 350 µA | 10.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
|
APTGT300DA120D3GIGBT MODULE 1200V 440A 1250W D3 |
11,672 |
|
- |
- | D-3 Module | Bulk | Obsolete | Trench Field Stop | Single | 1200 V | 440 A | 1250 W | 2.1V @ 15V, 300A | 8 mA | 20 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
APTGT300SK120D3GIGBT MODULE 1200V 440A 1250W D3 |
17,000 |
|
- |
- | D-3 Module | Bulk | Obsolete | Trench Field Stop | Single | 1200 V | 440 A | 1250 W | 2.1V @ 15V, 300A | 8 mA | 20 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
APTGT50TL60T3GIGBT MODULE 600V 80A 176W SP3 |
13,984 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Three Level Inverter | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
APTGF150A120TGIGBT MODULE 1200V 200A 961W SP4 |
14,918 |
|
- |
- | SP4 | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 200 A | 961 W | 3.7V @ 15V, 150A | 350 µA | 10.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
|
FP50R12N2T7B76BPSA1LOW POWER ECONO |
12,638 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | 1.5V @ 15V, 50A | 10 µA | 11100 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
APTGT75A120T1GIGBT MODULE 1200V 110A 357W SP1 |
14,438 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 110 A | 357 W | 2.1V @ 15V, 75A | 250 µA | 5.34 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
CM150DX-24AIGBT MOD 1200V 150A 960W |
14,276 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 150 A | 960 W | 2.6V @ 15V, 150A | 1 mA | 23 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
