IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIP40R12E1TN-BPIGBT MODULES |
8,070 |
|
- |
- | Module | Tape & Reel (TR) | Active | - | Three Phase Inverter | 1200 V | 40 A | 227 W | 2.05V @ 15V, 40A | 1 mA | 2250 pF @ 25 V | Three Phase Bridge Rectifier | Yes | 175°C (TJ) | Chassis Mount | - |
|
|
APTGT200DA170D3GIGBT MODULE 1700V 400A 1250W D3 |
9,518 |
|
- |
- | D-3 Module | Bulk | Obsolete | Trench Field Stop | Single | 1700 V | 400 A | 1250 W | 2.4V @ 15V, 200A | 5 mA | 17 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
APTGT200SK170D3GIGBT MODULE 1700V 400A 1250W D3 |
19,386 |
|
- |
- | D-3 Module | Bulk | Obsolete | Trench Field Stop | Single | 1700 V | 400 A | 1250 W | 2.4V @ 15V, 200A | 5 mA | 17 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
MG12150S-BN2MMIGBT MODULE 1200V 200A 625W S3 |
16,374 |
|
- |
- | S-3 Module | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 200 A | 625 W | 1.7V @ 15V, 150A (Typ) | 1 mA | 10.5 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | S3 |
|
APTGF75H120TGIGBT MODULE 1200V 100A 500W SP4 |
19,718 |
|
- |
- | SP4 | Bulk | Obsolete | NPT | Full Bridge Inverter | 1200 V | 100 A | 500 W | 3.7V @ 15V, 75A | 250 µA | 5.1 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
CM150DUS-12FIGBT MOD 600V 150A 520W |
13,462 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 600 V | 150 A | 520 W | 2.7V @ 15V, 150A | 1 mA | 41 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
APTCV60TLM99T3GIGBT MODULE 600V 50A 90W SP3 |
4,160 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Three Level Inverter - IGBT, FET | 600 V | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
FF75R12RT4HOSA1IGBT MOD 1200V 75A 395W |
8,418 |
|
- |
PrimePACK™2 | Module | Tray | Obsolete | Trench Field Stop | 2 Independent | 1200 V | 75 A | 395 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
MG12100D-BA1MMIGBT MODULE 1200V 160A 1000W D3 |
9,606 |
|
- |
- | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 160 A | 1000 W | 1.8V @ 15V, 100A (Typ) | 1 mA | 8.58 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
CM200EXS-24SIGBT MOD 1200V 200A 1500W |
18,780 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | Single | 1200 V | 200 A | 1500 W | 2.15V @ 15V, 200A | 1 mA | 20 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
|
IFS75B12N3E4B31BOSA1IGBT MOD 1200V 150A 385W |
13,082 |
|
- |
MIPAQ™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1200 V | 150 A | 385 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
MDI200-12A4IGBT MOD 1200V 270A 1130W Y3DCB |
5,072 |
|
- |
- | Y3-DCB | Box | Obsolete | NPT | Single | 1200 V | 270 A | 1130 W | 2.7V @ 15V, 150A | 10 mA | 11 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Y3-DCB |
|
|
APTGT50A170T1GIGBT MODULE 1700V 75A 312W SP1 |
14,110 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
IFF300B12N2E4PB11BPSA1IGBT MOD 1200V 600A 20MW |
19,340 |
|
- |
MIPAQ™ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | - | 2.1V @ 15V, 300A | 1 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
CM50BU-24HIGBT MOD 1200V 50A 400W |
18,368 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Full Bridge Inverter | 1200 V | 50 A | 400 W | 3.7V @ 15V, 50A | 1 mA | 7.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGLQ50H65T3GIGBT MODULE 650V 70A 175W SP3F |
13,824 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Full Bridge | 650 V | 70 A | 175 W | 2.3V @ 15V, 50A | 50 µA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|

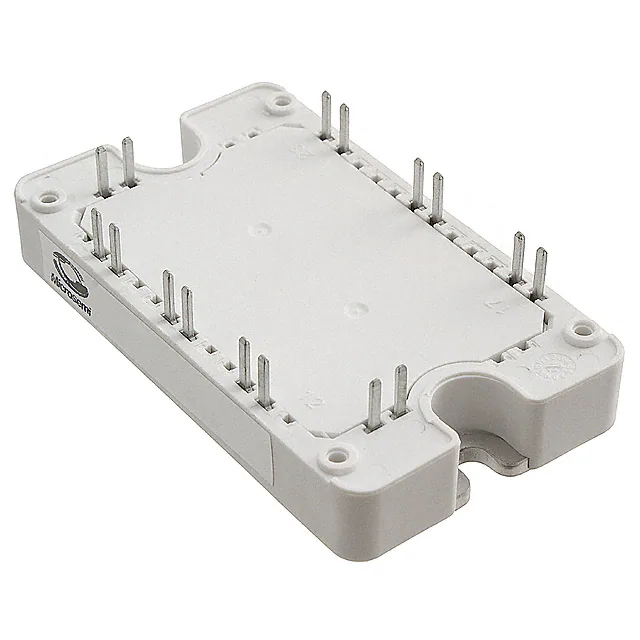

APTGT100BB60T3GIGBT MODULE 600V 150A 340W SP3 |
10,012 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
|

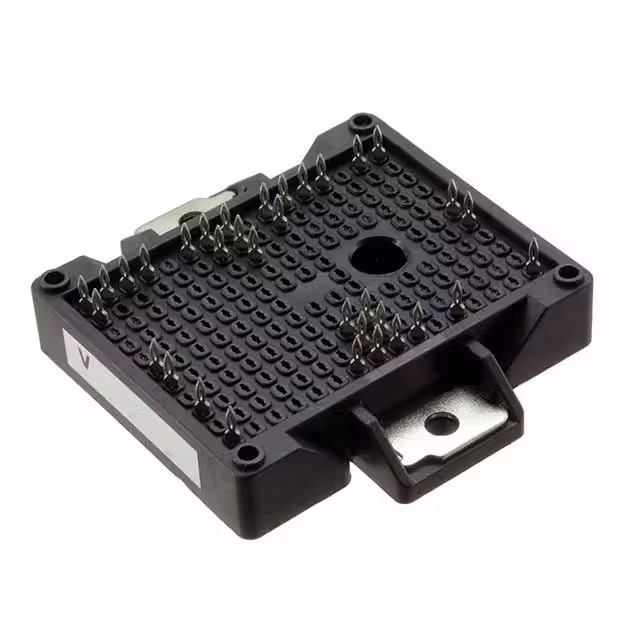

VS-ETF075Y60UIGBT MOD 600V 109A EMIPAK-2B |
4,590 |
|
- |
- | EMIPAK-2B | Bulk | Obsolete | Trench | Three Level Inverter | 600 V | 100 A | 294 W | 1.93V @ 15V, 75A | 100 µA | 4.44 nF @ 30 V | Standard | Yes | 175°C (TJ) | Chassis Mount | EMIPAK-2B |
|
|
MIP50R12E2TN-BPIGBT MODULES |
4,916 |
|
- |
- | Module | Tape & Reel (TR) | Active | - | Three Phase Inverter | 1200 V | 35 A | 227 W | 1.95V @ 15V, 35A | 1 mA | 2000 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
FP100R12N2T7B11BPSA1LOW POWER ECONO |
6,814 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | - | 1.5V @ 15V, 100A | 10 µA | 21.7 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
