IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT400A120GIGBT MODULE 1200V 560A 1785W SP6 |
9,710 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 560 A | 1785 W | 2.1V @ 15V, 400A | 750 µA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|

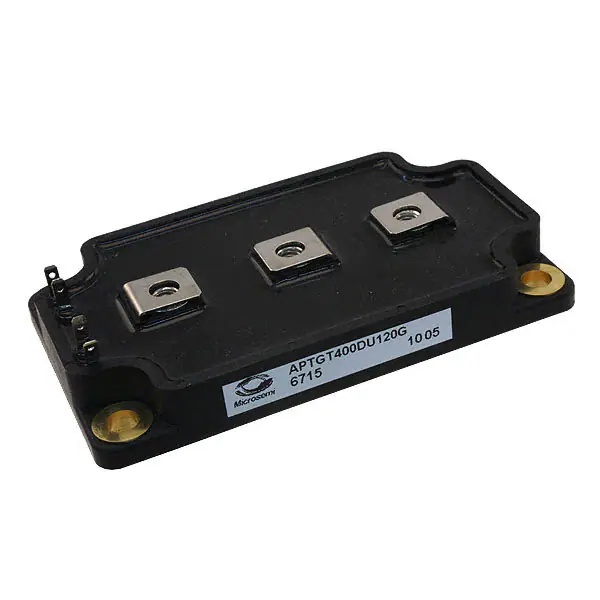

APTGT400DU120GIGBT MODULE 1200V 560A 1785W SP6 |
12,696 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 560 A | 1785 W | 2.1V @ 15V, 400A | 750 µA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT200H120GIGBT MODULE 1200V 280A 890W SP6 |
14,350 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 280 A | 890 W | 2.1V @ 15V, 200A | 350 µA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
DF900R12IP4DBOSA1IGBT MOD 1200V 900A 5100W |
13,668 |
|
- |
PrimePACK™2 | Module | Tray | Active | Trench Field Stop | Single Chopper | 1200 V | 900 A | 5100 W | 2.05V @ 15V, 900A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
APTGLQ200H120GIGBT MODULE 1200V 350A 1000W SP6 |
5,288 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Full Bridge | 1200 V | 350 A | 1000 W | 2.4V @ 15V, 200A | 100 µA | 12.3 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
APTGLQ400A120T6GIGBT MODULE 1200V 700A 1900W SP6 |
13,434 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 700 A | 1900 W | 2.4V @ 15V, 400A | 200 µA | 24.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP6 |
|
APTGL240TL120GIGBT MODULE 1200V 305A 1000W SP6 |
15,312 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Three Level Inverter | 1200 V | 305 A | 1000 W | 2.2V @ 15V, 200A | 2 mA | 12.3 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
CM800DY-24SIGBT MOD 1200V 790A 5355W |
16,258 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 790 A | 5355 W | 2.4V @ 15V, 800A | 1 mA | 80 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FS225R12KE3BOSA1IGBT MOD 1200V 325A 1150W |
15,352 |
|
- |
EconoPACK™+ | Module | Tray | Not For New Designs | Trench Field Stop | Full Bridge | 1200 V | 325 A | 1150 W | 2.15V @15V, 225A | 5 mA | 16 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FS200R07A5E3S6BPSA1IGBT MODULE HYBRID PACK LIGHT |
7,986 |
|
- |
HybridPACK™ | Module | Tray | Obsolete | Trench | Full Bridge Inverter | 705 V | 200 A | 630 W | 1.7V @ 15V, 200A | 100 µA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
FS100R12KS4BOSA1IGBT MOD 1200V 130A 660W |
5,876 |
|
- |
- | Module | Tray | Obsolete | - | Three Phase Inverter | 1200 V | 130 A | 660 W | 3.7V @ 15V, 100A | 5 mA | 6.8 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
APTGT400TL65GIGBT MODULE 650V SP6C |
17,426 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
QID1210006IGBT MODULE 1200V 100A 570W |
17,502 |
|
- |
- | - | Bulk | Discontinued at Digi-Key | - | 2 Independent | 1200 V | 100 A | 570 W | 6.5V @ 15V, 100A | 1 mA | 16 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | - |
|
|
FF600R12IE4VBOSA1IGBT MOD 1200V 600A 3350W |
15,232 |
|
- |
PrimePACK™2 | Module | Tray | Not For New Designs | Trench Field Stop | 2 Independent | 1200 V | 600 A | 3350 W | 2.05V @ 15V, 600A | 5 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
NVH950S75L4SPBAUTOMOTIVE 750V, 950A SSDC POWER |
19,658 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 750 V | 950 A | 1300 W | 1.55V @ 15V, 600A | 500 µA | 60000 pF @ 30 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SSDC33 |
|
|
NVH950S75L4SPCAUTOMOTIVE 750V, 950A SSDC POWER |
16,590 |
|
- |
- | Module | Bulk | Active | Field Stop | Three Phase Inverter | 750 V | 950 A | 1325 W | 1.55V @ 15V, 600A | 500 µA | 60000 pF @ 30 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SSDC33 |
|
APTGL475A120D3GIGBT MODULE 1200V 610A 2080W D3 |
19,982 |
|
- |
- | D-3 Module | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 610 A | 2080 W | 2.2V @ 15V, 400A | 5 mA | 24.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
|
DF600R12IP4DVBOSA1IGBT MODULE VCES 1200V 600A |
14,142 |
|
- |
PrimePACK™2 | - | Tray | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTGT400A120D3GIGBT MODULE 1200V 580A 2100W D3 |
6,762 |
|
- |
- | D-3 Module | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 580 A | 2100 W | 2.1V @ 15V, 400A | 750 µA | 29 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
APTGT300A170GIGBT MODULE 1700V 400A 1660W SP6 |
19,384 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 400 A | 1660 W | 2.4V @ 15V, 300A | 750 µA | 26.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
