IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

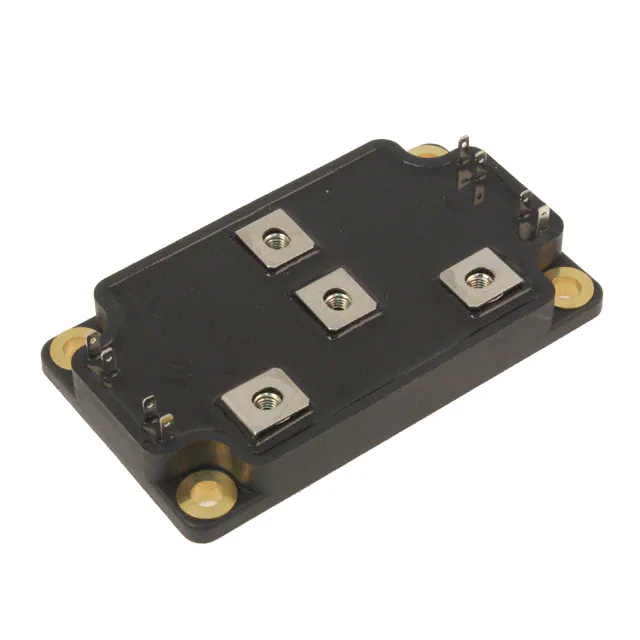

APTGT200TL60GIGBT MODULE 600V 300A 652W SP6 |
9,122 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Three Level Inverter | 600 V | 300 A | 652 W | 1.9V @ 15V, 200A | 350 µA | 12.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
APTGT100H120GIGBT MODULE 1200V 140A 480W SP6 |
4,758 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT200DH120GIGBT MODULE 1200V 280A 890W SP6 |
8,426 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 1200 V | 280 A | 890 W | 2.1V @ 15V, 200A | 350 µA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGL475DA120D3GIGBT MODULE 1200V 610A 2080W D3 |
7,854 |
|
- |
- | D-3 Module | Bulk | Active | Trench Field Stop | Single | 1200 V | 610 A | 2080 W | 2.2V @ 15V, 400A | 5 mA | 24.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
|
APTGL475SK120D3GIGBT MODULE 1200V 610A 2080W D3 |
9,994 |
|
- |
- | D-3 Module | Bulk | Active | Trench Field Stop | Single | 1200 V | 610 A | 2080 W | 2.2V @ 15V, 400A | 5 mA | 24.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
|
CM600HU-24HIGBT MOD 1200V 600A 3100W |
6,412 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Single | 1200 V | 600 A | 3100 W | 3.7V @ 15V, 600A | 2 mA | 90 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100TU-24HIGBT MOD 1200V 100A 650W |
14,072 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 100 A | 650 W | 3.7V @ 15V, 100A | 1 mA | 15 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FF450R17ME3BOSA1IGBT MOD 1700V 605A 2250W |
15,132 |
|
- |
EconoDUAL™ 3 | Module | Tray | Not For New Designs | Trench Field Stop | Half Bridge Inverter | 1700 V | 605 A | 2250 W | 2.45V @ 15V, 450A | 3 mA | 40.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
APTGT400U120D4GIGBT MODULE 1200V 600A 2250W D4 |
13,440 |
|
- |
- | D4 | Bulk | Active | Trench Field Stop | Single | 1200 V | 600 A | 2250 W | 2.1V @ 15V, 400A | 8 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D4 |
|
|
CM300DY-34AIGBT MOD 1700V 300A 2900W |
17,810 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1700 V | 300 A | 2900 W | 2.8V @ 15V, 300A | 1 mA | 74 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF900R17ME7PB11BPSA1MEDIUM POWER ECONO |
12,730 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF600R12ME4CPBPSA1IGBT MODULE VCES 600V 600A |
6,220 |
|
- |
EconoDUAL™3 | Module | Tray | Not For New Designs | Trench Field Stop | Half Bridge Inverter | 1200 V | 1060 A | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
|
FF600R12ME4CPB11BPSA1IGBT MODULE VCES 600V 600A |
4,910 |
|
- |
EconoDUAL™3 | Module | Tray | Not For New Designs | Trench Field Stop | Half Bridge Inverter | 1200 V | 1060 A | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
|
APTGT50TDU170PGIGBT MODULE 1700V 70A 310W SP6P |
17,894 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Triple, Dual - Common Source | 1700 V | 70 A | 310 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGLQ200H65GIGBT MODULE 650V 270A 680W SP6 |
6,736 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Full Bridge | 650 V | 270 A | 680 W | 2.3V @ 15V, 200A | 75 µA | 12.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT200A120D3GIGBT MODULE 1200V 300A 1040W D3 |
7,998 |
|
- |
- | D-3 Module | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 300 A | 1040 W | 2.1V @ 15V, 200A | 6 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
APTGT300DA170GIGBT MODULE 1700V 400A 1660W SP6 |
15,788 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Single | 1700 V | 400 A | 1660 W | 2.4V @ 15V, 300A | 750 µA | 26.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT300SK170GIGBT MODULE 1700V 400A 1660W SP6 |
18,946 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Single | 1700 V | 400 A | 1660 W | 2.4V @ 15V, 300A | 750 µA | 26.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT300DA170D3GIGBT MODULE 1700V 530A 1470W D3 |
11,364 |
|
- |
- | D-3 Module | Bulk | Active | Trench Field Stop | Single | 1700 V | 530 A | 1470 W | 2.4V @ 15V, 300A | 8 mA | 26 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
CM400DY-24NFIGBT MOD 1200V 400A 1470W |
11,988 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 400 A | 1470 W | 2.5V @ 15V, 400A | 1 mA | 94 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
