IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGLQ300A120GIGBT MODULE 1200V 500A 1500W SP6 |
5,842 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 500 A | 1500 W | 2.42V @ 15V, 300A | 200 µA | 17.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
CM200TL-24NFIGBT MOD 1200V 200A 1160W |
5,252 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 1200 V | 200 A | 1160 W | 3.1V @ 15V, 200A | 1 mA | 35 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

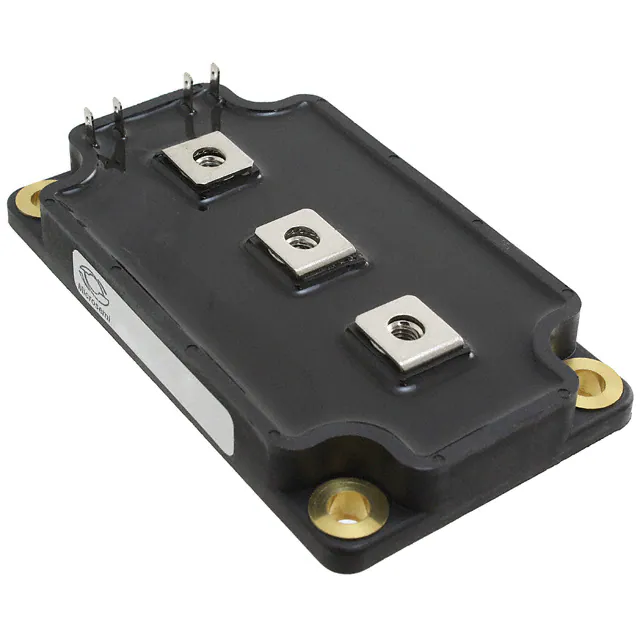

APTGT450A60GIGBT MODULE 600V 550A 1750W SP6 |
4,736 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 550 A | 1750 W | 1.8V @ 15V, 450A | 500 µA | 37 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGLQ150H120GIGBT MODULE 1200V 250A 750W SP6 |
19,920 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Full Bridge | 1200 V | 250 A | 750 W | 2.4V @ 15V, 150A | 100 µA | 8.8 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
CM600DY-24AIGBT MOD 1200V 600A 3670W |
17,392 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 600 A | 3670 W | 3V @ 15V, 600A | 1 mA | 94 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGT150DH170GIGBT MODULE 1700V 250A 890W SP6 |
7,206 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 1700 V | 250 A | 890 W | 2.4V @ 15V, 150A | 350 µA | 13.5 nF @ 25 V | Standard | No | - | Chassis Mount | SP6 |
|
|
NVH640S75L4SPCAUTOMOTIVE 750V, 640A SSDC POWER |
11,856 |
|
- |
- | Module | Bulk | Active | - | Three Phase Inverter | 750 V | 640 A | 680 W | 1.64V @ 15V, 450A | 500 µA | 47000 pF @ 30 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SSDC33 |
|
|
NVH640S75L4SPBAUTOMOTIVE 750V, 640A SSDC POWER |
17,664 |
|
- |
- | Module | Bulk | Active | Field Stop | Three Phase Inverter | 750 V | 450 A | 680 W | 1.64V @ 15V, 450A | 500 µA | 47000 pF @ 30 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SSDC33 |
|
|
APTGTQ150TA65TPGIGBT MODULE 650V 150A 365W SP6P |
16,752 |
|
- |
- | Module | Bulk | Active | - | Three Phase Inverter | 650 V | 150 A | 365 W | 2.2V @ 15V, 150A | 150 µA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
APTGL120TA120TPGIGBT MODULE 1200V 140A 517W SP6P |
10,768 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Three Phase | 1200 V | 140 A | 517 W | 2.15V @ 15V, 100A | 250 µA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGL120TDU120TPGIGBT MODULE 1200V 140A 517W SP6P |
15,590 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Triple, Dual - Common Source | 1200 V | 140 A | 517 W | 2.15V @ 15V, 100A | 250 µA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGT100TA120TPGIGBT MODULE 1200V 140A 480W SP6P |
9,642 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Three Phase | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
|
NVH660S75L4SPFBAUTOMOTIVE 750V, 660A SSDC POWER |
13,438 |
|
- |
- | Module | Bulk | Active | Field Stop | Three Phase Inverter | 750 V | 660 A | 733 W | 1.44V @ 15V, 450A | 500 µA | 63000 pF @ 30 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SSDC33 |
|
|
NVH660S75L4SPFCAUTOMOTIVE 750V, 660A SSDC POWER |
18,272 |
|
- |
- | Module | Bulk | Active | - | Three Phase Inverter | 750 V | 660 A | 733 W | 1.44V @ 15V, 450A | 500 µA | - | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SSDC33 |
|
|
CM600DU-5FIGBT MOD 250V 600A 1100W |
15,040 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 250 V | 600 A | 1100 W | 1.7V @ 10V, 600A | 1 mA | 170 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGT300A120GIGBT MODULE 1200V 420A 1380W SP6 |
16,392 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 420 A | 1380 W | 2.1V @ 15V, 300A | 500 µA | 21 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT300DU120GIGBT MODULE 1200V 420A 1380W SP6 |
16,838 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 420 A | 1380 W | 2.1V @ 15V, 300A | 500 µA | 21 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGL700U120D4GIGBT MODULE 1200V 910A 3000W D4 |
15,014 |
|
- |
- | D4 | Bulk | Active | Trench Field Stop | Single | 1200 V | 910 A | 3000 W | 2.2V @ 15V, 600A | 4 mA | 37.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D4 |
|
|
MG800J2YS50AIGBT MOD 600V 800A 2900W |
4,560 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 800 A | 2900 W | 3V @ 15V, 800A | 1 mA | 93 nF @ 10 V | Standard | No | -20°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM800DU-12HIGBT MOD 600V 800A 1500W |
5,756 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 800 A | 1500 W | 3.15V @ 15V, 800A | 2 mA | 70.4 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
