    Home > Products  > Connectors, Interconnects > Card Edge Connectors > Edgeboard Connectors

    Edgeboard Connectors

    Photo Mfr. Part # Availability Price Quantity Datasheet Series Packaging Product Status Card Type Gender Number of Positions/Bay/Row Number of Positions Card Thickness Number of Rows Pitch Read Out Features Mounting Type Termination Contact Material Contact Finish Contact Finish Thickness Contact Type Color Flange Feature Operating Temperature
    857-048-556-204

    857-048-556-204

    CONN EDGE DUAL FMALE 48POS 0.156

    EDAC Inc.

    		 2,706
    RFQ
    		857-048-556-204

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 24 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C

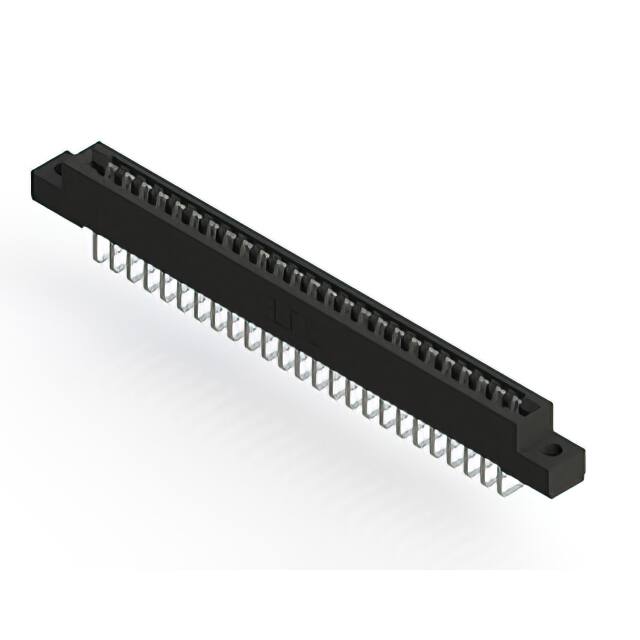

    857-025-458-102

    857-025-458-102

    CONN EDGE SGL FML 25POS 0.156

    EDAC Inc.

    		 5,052
    RFQ
    		857-025-458-102

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 25 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    807-022-458-112

    807-022-458-112

    CONN EDGE SGL FML 22POS 0.156

    EDAC Inc.

    		 7,144
    RFQ
    		807-022-458-112

    Datasheet

         		807 Bulk Active Non Specified - Single Edge Female 22 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Green Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    807-022-459-112

    807-022-459-112

    CONN EDGE SGL FML 22POS 0.156

    EDAC Inc.

    		 2,562
    RFQ
    		807-022-459-112

    Datasheet

         		807 Bulk Active Non Specified - Single Edge Female 22 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Green Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    887-080-555-804

    887-080-555-804

    CONN EDGE DUAL FMALE 80POS 0.156

    EDAC Inc.

    		 5,382
    RFQ
    		887-080-555-804

    Datasheet

         		887 Bulk Active Non Specified - Dual Edge Female 40 80 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    857-025-459-101

    857-025-459-101

    CONN EDGE SGL FML 25POS 0.156

    EDAC Inc.

    		 9,226
    RFQ
    		857-025-459-101

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 25 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black - -40°C ~ 125°C
    887-080-558-204

    887-080-558-204

    CONN EDGE DUAL FMALE 80POS 0.156

    EDAC Inc.

    		 3,980
    RFQ
    		887-080-558-204

    Datasheet

         		887 Bulk Active Non Specified - Dual Edge Female 40 80 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C

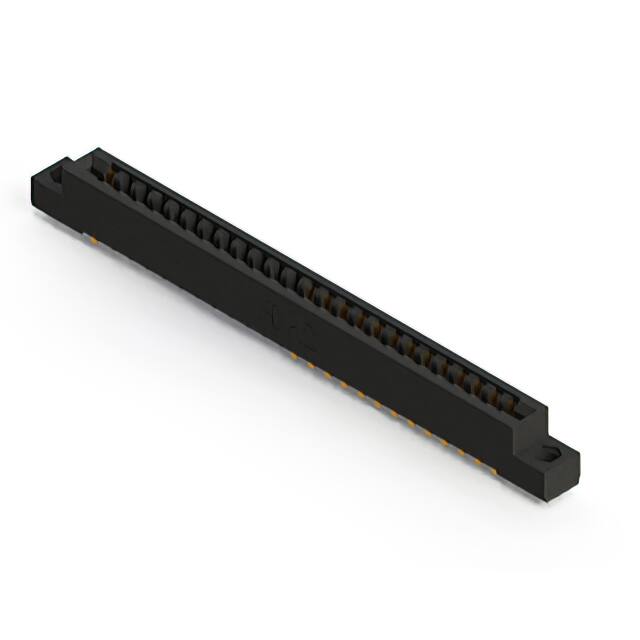

    857-025-559-104

    857-025-559-104

    CONN EDGE SGL FMALE 25POS 0.156

    EDAC Inc.

    		 6,224
    RFQ
    		857-025-559-104

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 25 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    887-080-556-804

    887-080-556-804

    CONN EDGE DUAL FMALE 80POS 0.156

    EDAC Inc.

    		 9,180
    RFQ
    		887-080-556-804

    Datasheet

         		887 Bulk Active Non Specified - Dual Edge Female 40 80 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C

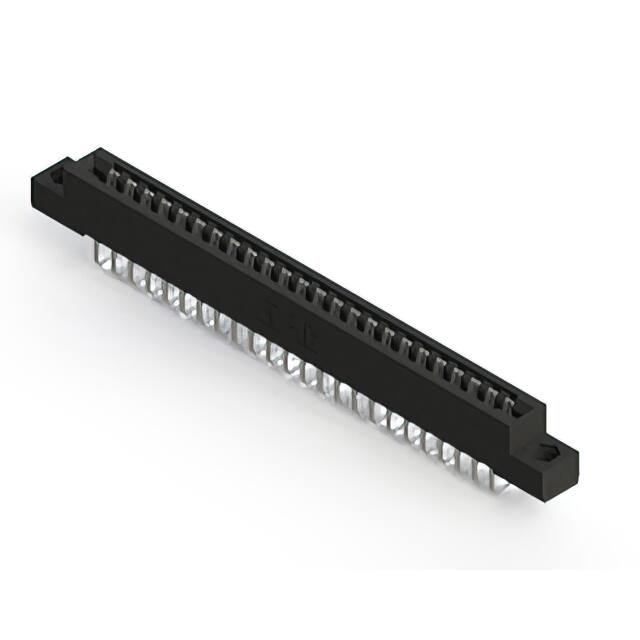

    857-048-459-204

    857-048-459-204

    CONN EDGE DUAL FMALE 48POS 0.156

    EDAC Inc.

    		 9,230
    RFQ
    		857-048-459-204

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 24 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    887-080-559-201

    887-080-559-201

    CONN EDGE DUAL FMALE 80POS 0.156

    EDAC Inc.

    		 8,608
    RFQ
    		887-080-559-201

    Datasheet

         		887 Bulk Active Non Specified - Dual Edge Female 40 80 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black - -40°C ~ 125°C
    857-048-558-202

    857-048-558-202

    CONN EDGE DUAL FMALE 48POS 0.156

    EDAC Inc.

    		 5,350
    RFQ
    		857-048-558-202

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 24 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    887-080-560-202

    887-080-560-202

    CONN EDGE DUAL FMALE 80POS 0.156

    EDAC Inc.

    		 6,926
    RFQ
    		887-080-560-202

    Datasheet

         		887 Bulk Active Non Specified - Dual Edge Female 40 80 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    887-080-559-802

    887-080-559-802

    CONN EDGE DUAL FMALE 80POS 0.156

    EDAC Inc.

    		 8,584
    RFQ
    		887-080-559-802

    Datasheet

         		887 Bulk Active Non Specified - Dual Edge Female 40 80 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    857-048-556-202

    857-048-556-202

    CONN EDGE DUAL FMALE 48POS 0.156

    EDAC Inc.

    		 4,140
    RFQ
    		857-048-556-202

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 24 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C

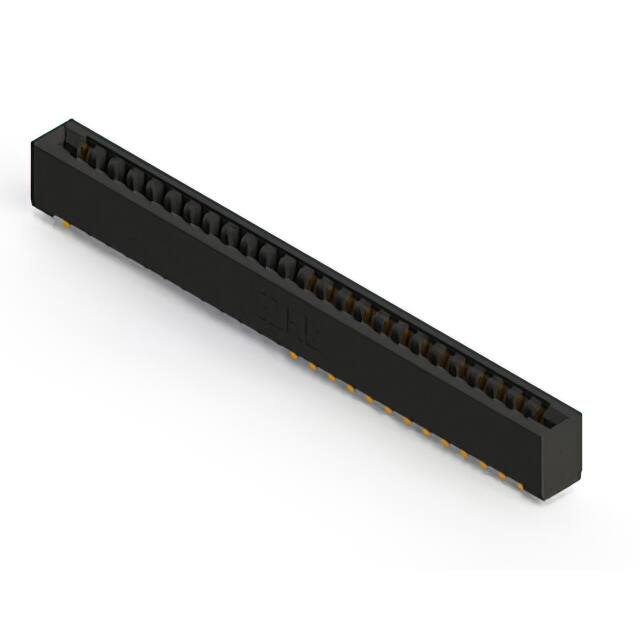

    857-025-558-101

    857-025-558-101

    CONN EDGE SGL FMALE 25POS 0.156

    EDAC Inc.

    		 8,952
    RFQ
    		857-025-558-101

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 25 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black - -40°C ~ 125°C
    892-070-556-212

    892-070-556-212

    CONN EDGE DUAL FMALE 70POS 0.100

    EDAC Inc.

    		 6,338
    RFQ
    		892-070-556-212

    Datasheet

         		892 Bulk Active Non Specified - Dual Edge Female 35 70 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    887-014-500-108

    887-014-500-108

    CONN EDGE SGL FMALE 14POS 0.156

    EDAC Inc.

    		 2,836
    RFQ
    		887-014-500-108

    Datasheet

         		887 Bulk Active Non Specified - Single Edge Female 14 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    837-082-544-212

    837-082-544-212

    CONN EDGE DUAL FMALE 82POS 0.156

    EDAC Inc.

    		 9,170
    RFQ
    		837-082-544-212

    Datasheet

         		837 Box Active Non Specified - Dual Edge Female 41 82 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    807-024-559-101

    807-024-559-101

    CONN EDGE SGL FMALE 24POS 0.156

    EDAC Inc.

    		 3,342
    RFQ
    		807-024-559-101

    Datasheet

         		807 Box Active Non Specified - Single Edge Female 24 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green - -40°C ~ 125°C
    Total 619256 Record«Prev1... 2900129002290032900429005290062900729008...30963Next»
