Edgeboard Connectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Card Type | Gender | Number of Positions/Bay/Row | Number of Positions | Card Thickness | Number of Rows | Pitch | Read Out | Features | Mounting Type | Termination | Contact Material | Contact Finish | Contact Finish Thickness | Contact Type | Color | Flange Feature | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
857-048-460-202CONN EDGE DUAL FMALE 48POS 0.156 |
3,368 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 24 | 48 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-048-558-201CONN EDGE DUAL FMALE 48POS 0.156 |
7,200 |
|
Datasheet |

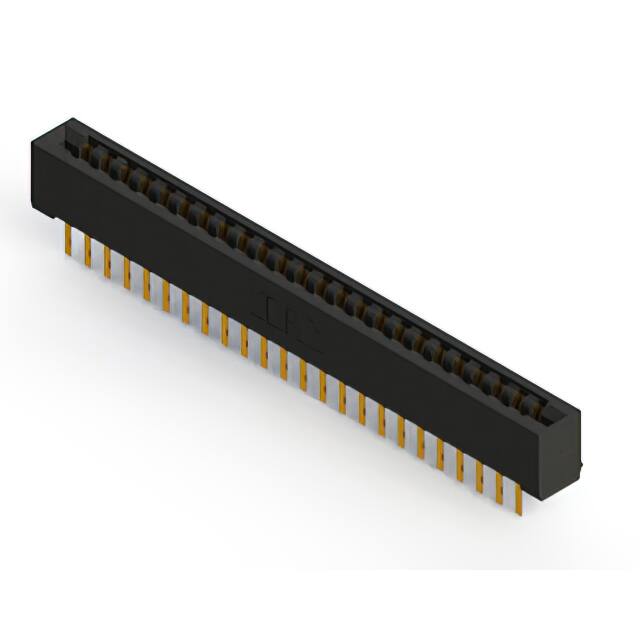

857 | Bulk | Active | Non Specified - Dual Edge | Female | 24 | 48 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | - | -40°C ~ 125°C |
|
857-025-458-104CONN EDGE SGL FML 25POS 0.156 |
7,894 |
|
Datasheet |

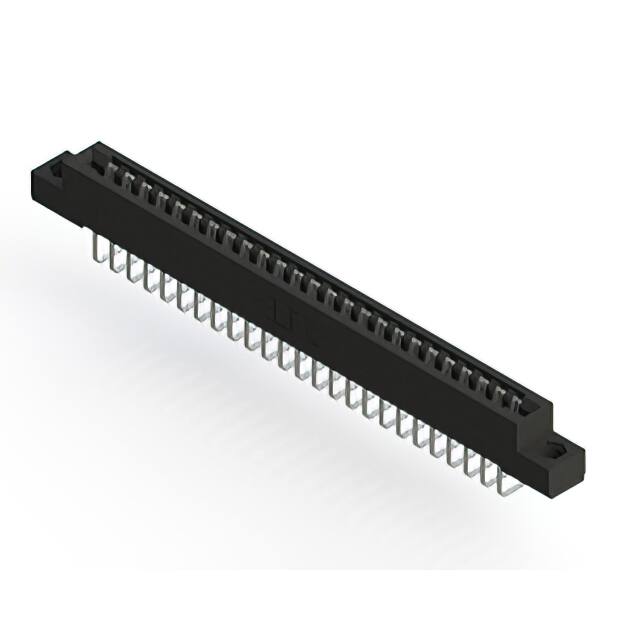

857 | Bulk | Active | Non Specified - Single Edge | Female | 25 | 25 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-025-559-102CONN EDGE SGL FMALE 25POS 0.156 |
7,872 |
|
Datasheet |

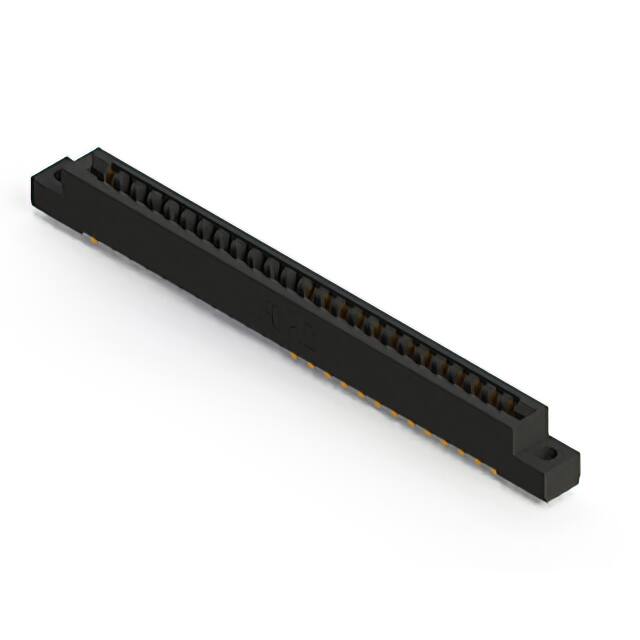

857 | Bulk | Active | Non Specified - Single Edge | Female | 25 | 25 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
887-080-555-802CONN EDGE DUAL FMALE 80POS 0.156 |
5,682 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Dual Edge | Female | 40 | 80 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
887-080-556-202CONN EDGE DUAL FMALE 80POS 0.156 |
2,796 |
|
Datasheet |

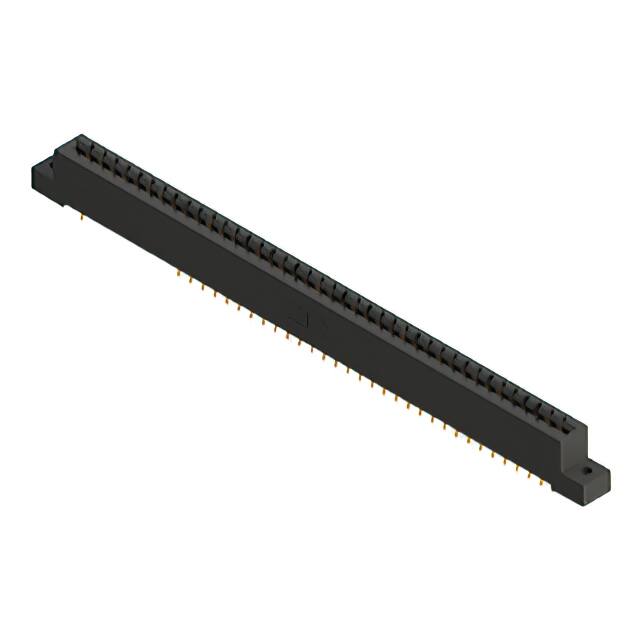

887 | Bulk | Active | Non Specified - Dual Edge | Female | 40 | 80 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
892-104-523-202CONN EDGE DUAL FML 104POS 0.100 |
2,936 |
|
Datasheet |

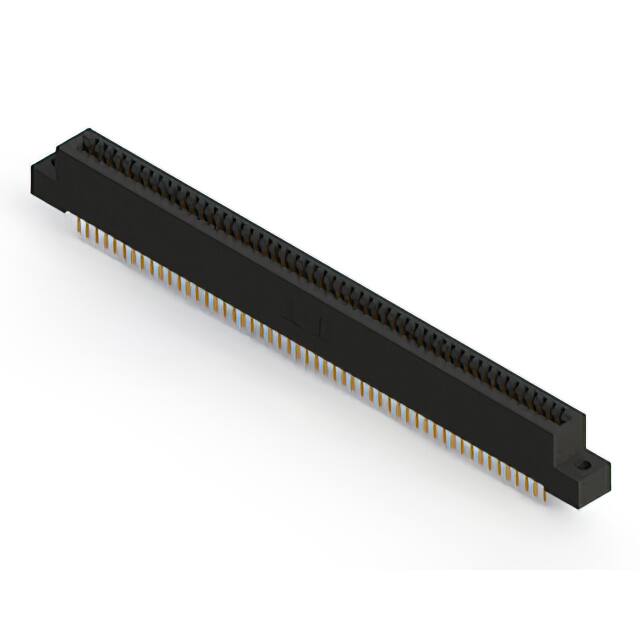

892 | Bulk | Active | Non Specified - Dual Edge | Female | 52 | 104 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
892-104-524-202CONN EDGE DUAL FML 104POS 0.100 |
4,294 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Dual Edge | Female | 52 | 104 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
892-104-541-204CONN EDGE DUAL FML 104POS 0.100 |
2,664 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Dual Edge | Female | 52 | 104 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
892-104-521-204CONN EDGE DUAL FML 104POS 0.100 |
6,434 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Dual Edge | Female | 52 | 104 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-048-460-204CONN EDGE DUAL FMALE 48POS 0.156 |
6,178 |
|
Datasheet |

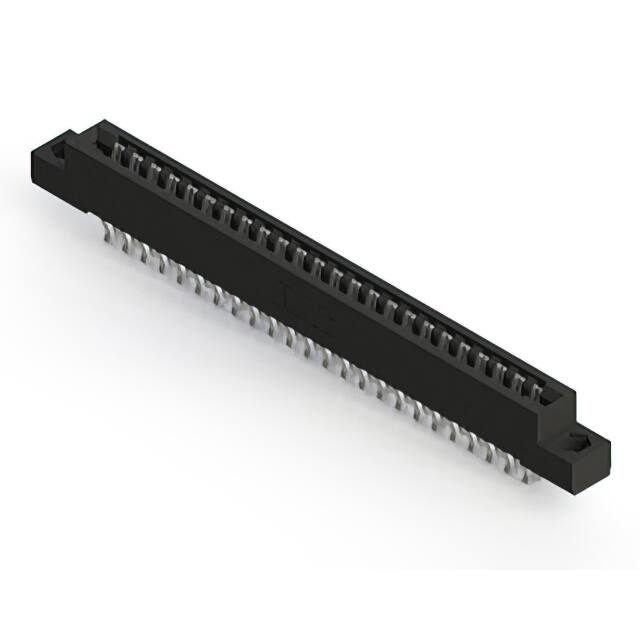

857 | Bulk | Active | Non Specified - Dual Edge | Female | 24 | 48 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
892-104-542-204CONN EDGE DUAL FML 104POS 0.100 |
9,592 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Dual Edge | Female | 52 | 104 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-048-560-201CONN EDGE DUAL FMALE 48POS 0.156 |
3,430 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 24 | 48 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | - | -40°C ~ 125°C |
|
857-048-458-204CONN EDGE DUAL FMALE 48POS 0.156 |
2,372 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 24 | 48 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-048-455-202CONN EDGE DUAL FMALE 48POS 0.156 |
7,574 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 24 | 48 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-048-459-201CONN EDGE DUAL FMALE 48POS 0.156 |
4,750 |
|
Datasheet |

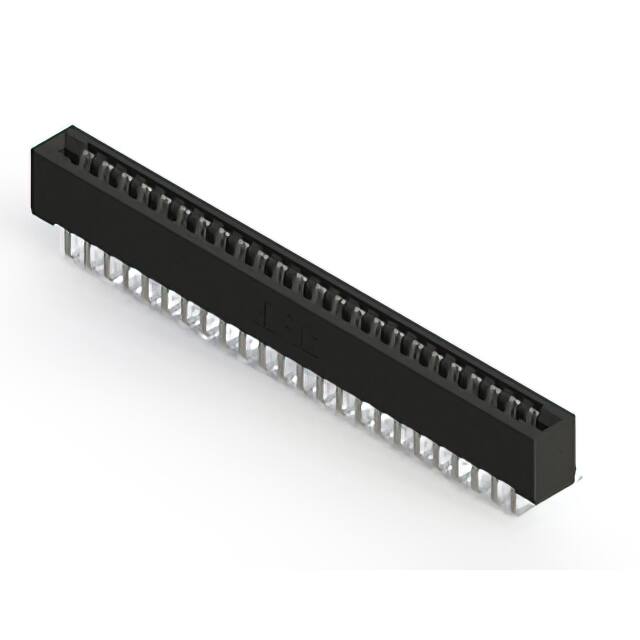

857 | Bulk | Active | Non Specified - Dual Edge | Female | 24 | 48 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | - | -40°C ~ 125°C |
|
857-048-458-202CONN EDGE DUAL FMALE 48POS 0.156 |
7,028 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 24 | 48 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
887-080-559-202CONN EDGE DUAL FMALE 80POS 0.156 |
2,890 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Dual Edge | Female | 40 | 80 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-048-455-201CONN EDGE DUAL FMALE 48POS 0.156 |
7,366 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 24 | 48 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | - | -40°C ~ 125°C |
|
887-014-500-603CONN EDGE SGL FMALE 14POS 0.156 |
2,160 |
|
Datasheet |

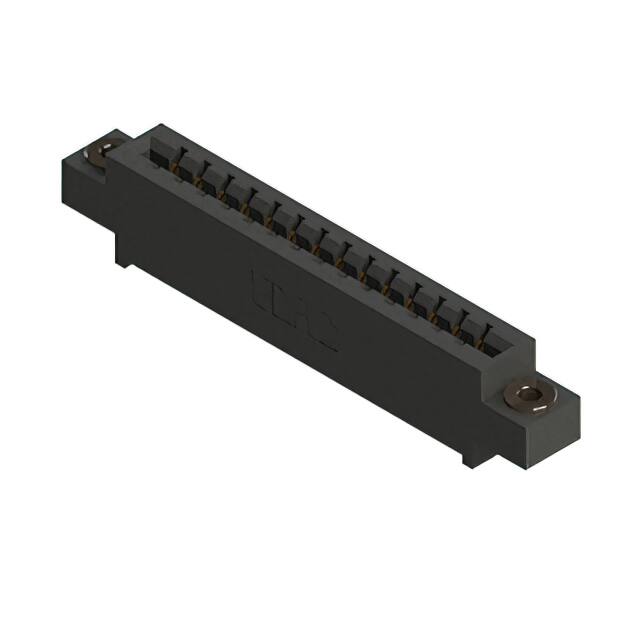

887 | Bulk | Active | Non Specified - Single Edge | Female | 14 | 14 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
