    Home > Products  > Connectors, Interconnects > Card Edge Connectors > Edgeboard Connectors

    Edgeboard Connectors

    Photo Mfr. Part # Availability Price Quantity Datasheet Series Packaging Product Status Card Type Gender Number of Positions/Bay/Row Number of Positions Card Thickness Number of Rows Pitch Read Out Features Mounting Type Termination Contact Material Contact Finish Contact Finish Thickness Contact Type Color Flange Feature Operating Temperature
    837-074-560-201

    837-074-560-201

    CONN EDGE DUAL FMALE 74POS 0.156

    EDAC Inc.

    		 4,730
    RFQ
    		837-074-560-201

    Datasheet

         		837 Box Active Non Specified - Dual Edge Female 37 74 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green - -40°C ~ 125°C
    807-058-556-202

    807-058-556-202

    CONN EDGE DUAL FMALE 58POS 0.156

    EDAC Inc.

    		 6,084
    RFQ
    		807-058-556-202

    Datasheet

         		807 Box Active Non Specified - Dual Edge Female 29 58 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C

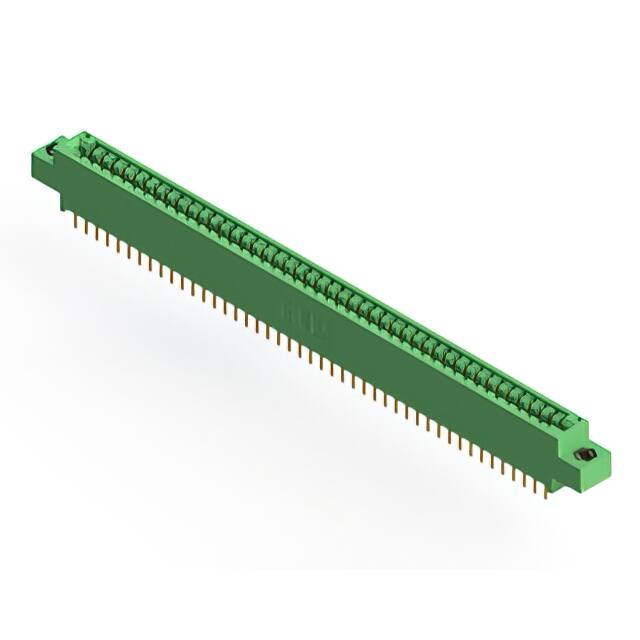

    846-090-521-808

    846-090-521-808

    CONN EDGE DUAL FMALE 90POS 0.125

    EDAC Inc.

    		 6,234
    RFQ
    		846-090-521-808

    Datasheet

         		846 Box Active Non Specified - Dual Edge Female 45 90 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    842-013-500-104

    842-013-500-104

    CONN EDGE SINGLE FML 13POS 0.100

    EDAC Inc.

    		 2,914
    RFQ
    		842-013-500-104

    Datasheet

         		842 Box Active Non Specified - Single Edge Female 13 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    807-058-555-204

    807-058-555-204

    CONN EDGE DUAL FMALE 58POS 0.156

    EDAC Inc.

    		 9,874
    RFQ
    		807-058-555-204

    Datasheet

         		807 Box Active Non Specified - Dual Edge Female 29 58 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    837-074-560-804

    837-074-560-804

    CONN EDGE DUAL FMALE 74POS 0.156

    EDAC Inc.

    		 6,630
    RFQ
    		837-074-560-804

    Datasheet

         		837 Box Active Non Specified - Dual Edge Female 37 74 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    837-074-558-802

    837-074-558-802

    CONN EDGE DUAL FMALE 74POS 0.156

    EDAC Inc.

    		 9,524
    RFQ
    		837-074-558-802

    Datasheet

         		837 Box Active Non Specified - Dual Edge Female 37 74 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    837-074-555-202

    837-074-555-202

    CONN EDGE DUAL FMALE 74POS 0.156

    EDAC Inc.

    		 9,732
    RFQ
    		837-074-555-202

    Datasheet

         		837 Box Active Non Specified - Dual Edge Female 37 74 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    846-090-540-808

    846-090-540-808

    CONN EDGE DUAL FMALE 90POS 0.125

    EDAC Inc.

    		 2,094
    RFQ
    		846-090-540-808

    Datasheet

         		846 Box Active Non Specified - Dual Edge Female 45 90 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    807-058-555-201

    807-058-555-201

    CONN EDGE DUAL FMALE 58POS 0.156

    EDAC Inc.

    		 3,270
    RFQ
    		807-058-555-201

    Datasheet

         		807 Box Active Non Specified - Dual Edge Female 29 58 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green - -40°C ~ 125°C
    846-090-526-808

    846-090-526-808

    CONN EDGE DUAL FMALE 90POS 0.125

    EDAC Inc.

    		 8,068
    RFQ
    		846-090-526-808

    Datasheet

         		846 Box Active Non Specified - Dual Edge Female 45 90 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    807-058-555-202

    807-058-555-202

    CONN EDGE DUAL FMALE 58POS 0.156

    EDAC Inc.

    		 4,532
    RFQ
    		807-058-555-202

    Datasheet

         		807 Box Active Non Specified - Dual Edge Female 29 58 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C

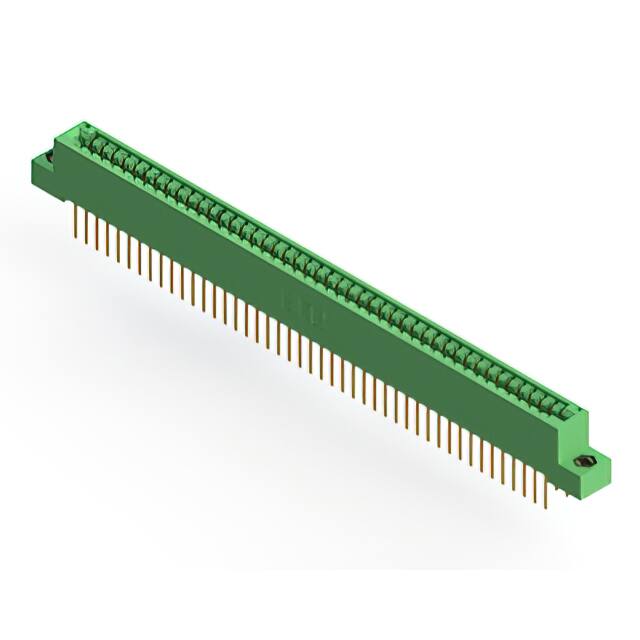

    846-090-526-208

    846-090-526-208

    CONN EDGE DUAL FMALE 90POS 0.125

    EDAC Inc.

    		 4,460
    RFQ
    		846-090-526-208

    Datasheet

         		846 Box Active Non Specified - Dual Edge Female 45 90 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    AMM43DREH

    AMM43DREH

    CONN EDGE DUAL FMALE 86POS 0.156

    Sullins Connector Solutions

    		 6,702
    RFQ
    		AMM43DREH

    Datasheet

         		- Tray Active Non Specified - Dual Edge Female 43 86 0.062" (1.57mm) 2 0.156" (3.96mm) Dual - Panel Mount Solder Eyelet(s) Beryllium Copper Gold 30.0µin (0.76µm) Full Bellows Green Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia -65°C ~ 150°C
    AMM43DREN

    AMM43DREN

    CONN EDGE DUAL FMALE 86POS 0.156

    Sullins Connector Solutions

    		 2,136
    RFQ
    		AMM43DREN

    Datasheet

         		- Tray Active Non Specified - Dual Edge Female 43 86 0.062" (1.57mm) 2 0.156" (3.96mm) Dual - Free Hanging (In-Line) Solder Eyelet(s) Beryllium Copper Gold 30.0µin (0.76µm) Full Bellows Green - -65°C ~ 150°C
    842-037-520-112

    842-037-520-112

    CONN EDGE SINGLE FML 37POS 0.100

    EDAC Inc.

    		 4,568
    RFQ
    		842-037-520-112

    Datasheet

         		842 Box Active Non Specified - Single Edge Female 37 37 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    807-066-556-203

    807-066-556-203

    CONN EDGE DUAL FMALE 66POS 0.156

    EDAC Inc.

    		 6,436
    RFQ
    		807-066-556-203

    Datasheet

         		807 Box Active Non Specified - Dual Edge Female 33 66 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    807-066-558-207

    807-066-558-207

    CONN EDGE DUAL FMALE 66POS 0.156

    EDAC Inc.

    		 8,476
    RFQ
    		807-066-558-207

    Datasheet

         		807 Box Active Non Specified - Dual Edge Female 33 66 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    807-066-558-208

    807-066-558-208

    CONN EDGE DUAL FMALE 66POS 0.156

    EDAC Inc.

    		 5,078
    RFQ
    		807-066-558-208

    Datasheet

         		807 Box Active Non Specified - Dual Edge Female 33 66 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Green Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    842-037-542-112

    842-037-542-112

    CONN EDGE SINGLE FML 37POS 0.100

    EDAC Inc.

    		 5,958
    RFQ
    		842-037-542-112

    Datasheet

         		842 Box Active Non Specified - Single Edge Female 37 37 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    Total 619256 Record«Prev1... 2899728998289992900029001290022900329004...30963Next»
