    Home > Products  > Connectors, Interconnects > Card Edge Connectors > Edgeboard Connectors

    Edgeboard Connectors

    Photo Mfr. Part # Availability Price Quantity Datasheet Series Packaging Product Status Card Type Gender Number of Positions/Bay/Row Number of Positions Card Thickness Number of Rows Pitch Read Out Features Mounting Type Termination Contact Material Contact Finish Contact Finish Thickness Contact Type Color Flange Feature Operating Temperature
    896-096-555-204

    896-096-555-204

    CONN EDGE DUAL FMALE 96POS 0.125

    EDAC Inc.

    		 7,338
    RFQ
    		896-096-555-204

    Datasheet

         		896 Bulk Active Non Specified - Dual Edge Female 48 96 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual Card Extender Board Edge, Straddle Mount Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    895-114-521-207

    895-114-521-207

    CONN EDGE DUAL FML 114POS 0.100

    EDAC Inc.

    		 2,414
    RFQ
    		895-114-521-207

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 57 114 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    895-114-521-508

    895-114-521-508

    CONN EDGE DUAL FML 114POS 0.100

    EDAC Inc.

    		 4,054
    RFQ
    		895-114-521-508

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 57 114 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    896-096-555-201

    896-096-555-201

    CONN EDGE DUAL FMALE 96POS 0.125

    EDAC Inc.

    		 3,030
    RFQ
    		896-096-555-201

    Datasheet

         		896 Bulk Active Non Specified - Dual Edge Female 48 96 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual Card Extender Board Edge, Straddle Mount Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black - -40°C ~ 125°C
    896-096-556-204

    896-096-556-204

    CONN EDGE DUAL FMALE 96POS 0.125

    EDAC Inc.

    		 8,990
    RFQ
    		896-096-556-204

    Datasheet

         		896 Bulk Active Non Specified - Dual Edge Female 48 96 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    895-124-541-201

    895-124-541-201

    CONN EDGE DUAL FML 124POS 0.100

    EDAC Inc.

    		 9,862
    RFQ
    		895-124-541-201

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 62 124 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black - -40°C ~ 125°C
    896-096-560-204

    896-096-560-204

    CONN EDGE DUAL FMALE 96POS 0.125

    EDAC Inc.

    		 4,342
    RFQ
    		896-096-560-204

    Datasheet

         		896 Bulk Active Non Specified - Dual Edge Female 48 96 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    895-124-525-502

    895-124-525-502

    CONN EDGE DUAL FML 124POS 0.100

    EDAC Inc.

    		 6,126
    RFQ
    		895-124-525-502

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 62 124 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C

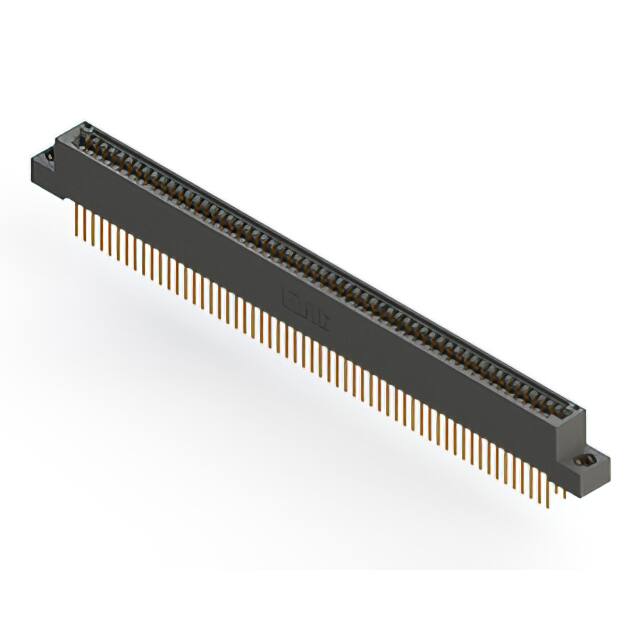

    895-114-523-208

    895-114-523-208

    CONN EDGE DUAL FML 114POS 0.100

    EDAC Inc.

    		 7,602
    RFQ
    		895-114-523-208

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 57 114 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C

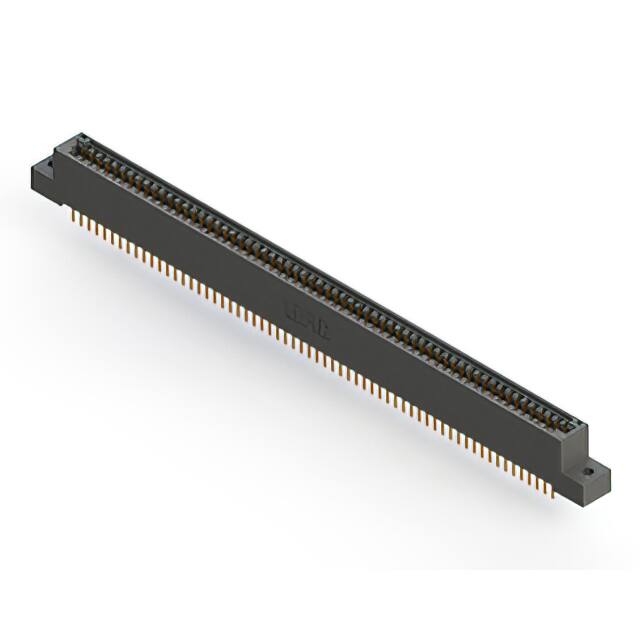

    895-124-520-202

    895-124-520-202

    CONN EDGE DUAL FML 124POS 0.100

    EDAC Inc.

    		 9,630
    RFQ
    		895-124-520-202

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 62 124 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    845-114-525-503

    845-114-525-503

    CONN EDGE DUAL FML 114POS 0.100

    EDAC Inc.

    		 7,350
    RFQ
    		845-114-525-503

    Datasheet

         		845 Bulk Active Non Specified - Dual Edge Female 57 114 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    895-116-525-503

    895-116-525-503

    CONN EDGE DUAL FML 116POS 0.100

    EDAC Inc.

    		 5,860
    RFQ
    		895-116-525-503

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 58 116 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    895-124-520-201

    895-124-520-201

    CONN EDGE DUAL FML 124POS 0.100

    EDAC Inc.

    		 5,248
    RFQ
    		895-124-520-201

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 62 124 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black - -40°C ~ 125°C
    857-054-440-212

    857-054-440-212

    CONN EDGE DUAL FMALE 54POS 0.156

    EDAC Inc.

    		 6,666
    RFQ
    		857-054-440-212

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 27 54 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Wire Wrap Copper Alloy Tin - Semi Bellows Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C

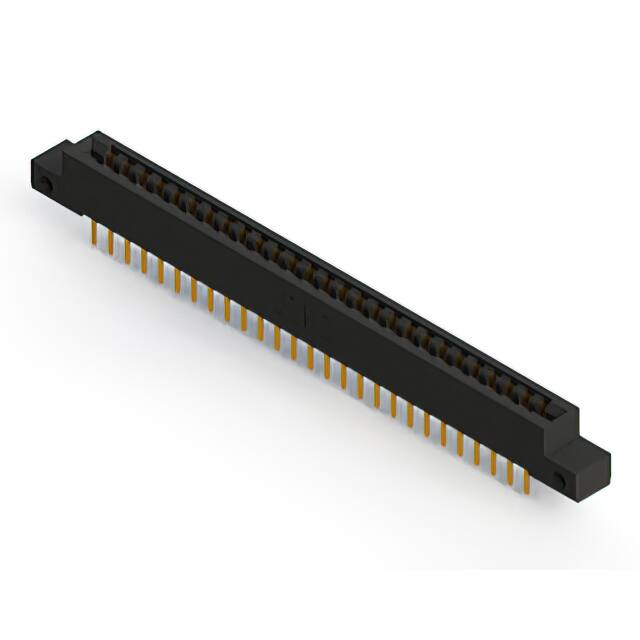

    857-054-520-212

    857-054-520-212

    CONN EDGE DUAL FMALE 54POS 0.156

    EDAC Inc.

    		 7,580
    RFQ
    		857-054-520-212

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 27 54 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    895-116-520-507

    895-116-520-507

    CONN EDGE DUAL FML 116POS 0.100

    EDAC Inc.

    		 7,908
    RFQ
    		895-116-520-507

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 58 116 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Threaded Insert, M3 -40°C ~ 125°C
    895-114-523-203

    895-114-523-203

    CONN EDGE DUAL FML 114POS 0.100

    EDAC Inc.

    		 6,804
    RFQ
    		895-114-523-203

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 57 114 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    895-116-541-803

    895-116-541-803

    CONN EDGE DUAL FML 116POS 0.100

    EDAC Inc.

    		 8,292
    RFQ
    		895-116-541-803

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 58 116 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    895-124-521-804

    895-124-521-804

    CONN EDGE DUAL FML 124POS 0.100

    EDAC Inc.

    		 3,046
    RFQ
    		895-124-521-804

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 62 124 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C

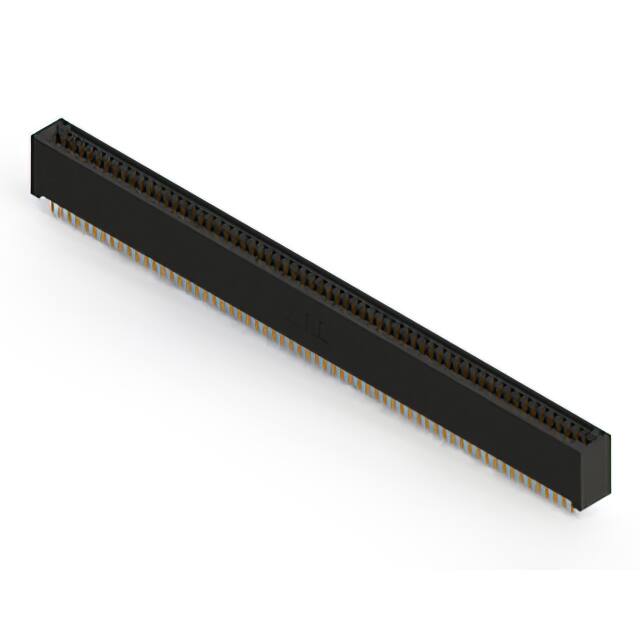

    895-124-525-201

    895-124-525-201

    CONN EDGE DUAL FML 124POS 0.100

    EDAC Inc.

    		 4,360
    RFQ
    		895-124-525-201

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 62 124 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black - -40°C ~ 125°C
    Total 619256 Record«Prev1... 2899428995289962899728998289992900029001...30963Next»
