Specialized
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Connector Usage | Connector Type | Connector Style | Number of Positions | Number of Positions Loaded | Pitch | Number of Rows | Number of Columns | Mounting Type | Termination | Contact Layout, Typical | Features | Contact Finish | Contact Finish Thickness | Color | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
73983-1011LLFCONN HEADER HIGH SPEED 36POS PCB |
2,244 |
|
Datasheet |
Metral® 1000 | Tube | Active | - | Header, Male Pins | High Speed | 36 | All | 0.079" (2.00mm) | 5 | - | Through Hole | Press-Fit | 30 Signal, 6 Ground | Shielded | Gold | 30.0µin (0.76µm) | Natural |
|
HM1L41AAP000H6PLFCONN HEADER 24POS EDGE MNT |
948 |
|
Datasheet |
Metral® | Tray | Active | - | Header, Male Pins | - | 24 | All | 0.079" (2.00mm) | 4 | - | Board Edge, Through Hole, Right Angle | Solder | - | Board Guide | Gold | 30.0µin (0.76µm) | Natural, White |
|
6643269-1CONN RCPT POWER 1POS PCB |
612 |
|
Datasheet |
ICCON, Elcon | Bulk | Active | - | Receptacle, Female Sockets | Power | 1 | All | - | - | - | Through Hole | Press-Fit | 1 Power | - | Silver | 200.0µin (5.08µm) | Black |
|
1724520002CONN PLUG TEN60 2POS PCB |
12,558 |
|
Datasheet |
EXTreme Ten60Power 172452 | Tray | Active | - | Plug, Male Blades | EXTreme Ten60Power | 2 | All | - | - | - | Through Hole, Right Angle | Solder | 2 Power | Board Guide | Gold | 30.0µin (0.76µm) | Black |
|
6450123-3CONN HEADER MULTI-BEAM 3POS PCB |
516 |
|
Datasheet |
Multimate XI | Bulk | Active | - | Header, Male Blades | Multi-Beam | 3 | All | - | 1 | - | Through Hole, Right Angle | Solder | 3 Power | Board Lock, Mating Guide | Gold | 30.0µin (0.76µm) | - |
|
0465629202VERT REC TEN60 2CKT DC AS |
1,110 |
|
Datasheet |
EXTreme Ten60Power 46562 | Tray | Active | - | Receptacle, Female Blade Sockets | EXTreme Ten60Power | 2 | All | 0.217" (5.50mm) | 1 | - | Through Hole | Press-Fit | 2 Power | - | Gold | 30.0µin (0.76µm) | Black |
|
10153301-32211LF2.54MM PC104,2*32P,DIP=3.4,TH,GO |
2,028 |
|
Datasheet |
- | Tube | Active | - | Stackthrough, (PC/104) | PC/104 | 64 | All | 0.100" (2.54mm) | 2 | - | Through Hole | Solder | - | - | Gold | Flash | Black |
|
10153302-32211LF2.54MM PC104,2*32P,DIP=3.4,PRESS |
1,170 |
|
Datasheet |
- | Tube | Active | - | Stackthrough, (PC/104) | PC/104 | 64 | All | 0.100" (2.54mm) | 2 | - | Through Hole | Press-Fit | - | - | Gold | Flash | Black |
|
PLA04F300A1/AABACKPLANE |
3,548 |
|
Datasheet |
PLA | Bulk | Active | - | Receptacle, Female Sockets | Power | 4 | All | 0.197" (5.00mm) | 1 | - | Through Hole | Solder | - | - | Gold | Flash | Blue |
|
MP2-H024-41S1-S-LRCONN HEADER FUTUREBUS+ 24POS PCB |
1,866 |
|
Datasheet |
MetPak™ MP2 | Tube | Active | Backplane | Header, Male Pins | Futurebus+® | 24 | All | 0.079" (2.00mm) | 4 | - | Through Hole | Solder | - | Board Guide, Mating Guide | Gold | 3.00µin (0.076µm) | Beige |
|
MP2-S030-51M1-C-LRCONN RCPT FUTUREBUS+ 30P EDGE MT |
1,128 |
|
Datasheet |
MetPak™ MP2 | Tube | Active | Backplane | Receptacle, Female Sockets | Futurebus+® | 30 | All | 0.079" (2.00mm) | 5 | - | Board Edge, Through Hole, Right Angle | Solder | - | Board Guide, Board Lock, Spacer | Gold | 3.00µin (0.076µm) | Beige |
|
5536603-1CONN HEADER FUTUREBUS 8POS PCB |
870 |
|
Datasheet |
Z-PACK | Bulk | Active | - | Header, Male Blades | Futurebus | 8 | All | 0.236" (6.00mm) | 4 | - | Through Hole | Press-Fit | 8 Power | - | Gold | Flash | - |
|
0465629201VERT REC TEN60 1CKT DC AS |
2,784 |
|
Datasheet |
EXTreme Ten60Power 46562 | Tray | Active | - | Receptacle, Female Blade Sockets | EXTreme Ten60Power | 1 | All | - | 1 | - | Through Hole | Press-Fit | 1 Power | - | Gold | 30.0µin (0.76µm) | Black |
|
51720-10201202AALFCONN HDR BLADE PWR 16POS EDGE MT |
284 |
|
Datasheet |
PwrBlade® | Tray | Active | - | Header, Male Pins and Blades | Blade Power | 16 | All | 0.100" (2.54mm) | 4 | - | Board Edge, Through Hole, Right Angle | Solder | 12 Signal, 4 Power | Board Lock, Mating Guide | Gold or Gold, GXT™ | 30.0µin (0.76µm) | Black |
|
0461120403CONN RCPT LPHPOWER 4POS PCB |
5,404 |
|
Datasheet |
EXTreme LPHPower 46112 | Tube | Active | - | Receptacle, Outer Shroud Contacts | LPHPower | 4 | All | 0.472" (12.00mm) | 2 | - | Through Hole | Press-Fit | 4 Power | Guide Pin | Gold | 30.0µin (0.76µm) | Black |
|
1-6450550-5CONN RCPT MULTI-BEAM 26POS PCB |
1,890 |
|
Datasheet |
MULTI-BEAM XL | Tray | Active | - | Receptacle, Female Sockets and Blade Sockets | Multi-Beam | 26 | All | 0.100" (2.54mm) | 4 | - | Through Hole | Press-Fit | 24 Signal, 4 Power | Board Lock, Guide Pin | Gold | 30.0µin (0.76µm) | Black |
|

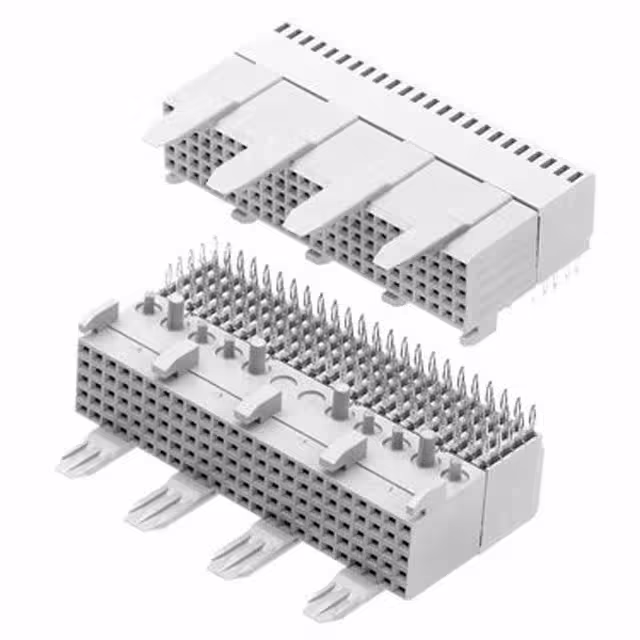

MP2-S030G-51M1-C-KRCONN RCPT FUTUREBUS+ 30P EDGE MT |
1,274 |
|
Datasheet |
MetPak™ MP2 | Bulk | Active | Backplane | Receptacle, Female Sockets | Futurebus+® | 30 | All | 0.079" (2.00mm) | 5 | - | Board Edge, Through Hole, Right Angle | Solder | - | Board Guide, Board Lock, Spacer | Gold | 30.0µin (0.76µm) | Beige |
|

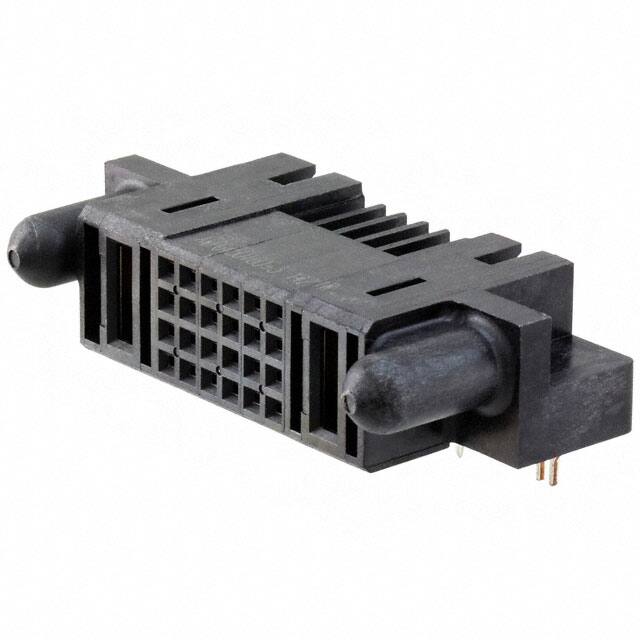

6450160-3CONN RCPT MULTI-BEAM 26POS PCB |
1,228 |
|
Datasheet |
MULTI-BEAM XL | Bulk | Active | - | Receptacle, Female Sockets and Blade Sockets | Multi-Beam | 26 | All | 0.100" (2.54mm) | 4 | - | Through Hole, Right Angle | Solder | 24 Signal, 2 Power | Board Lock, Guide Pin | Gold | 30.0µin (0.76µm) | Black |
|

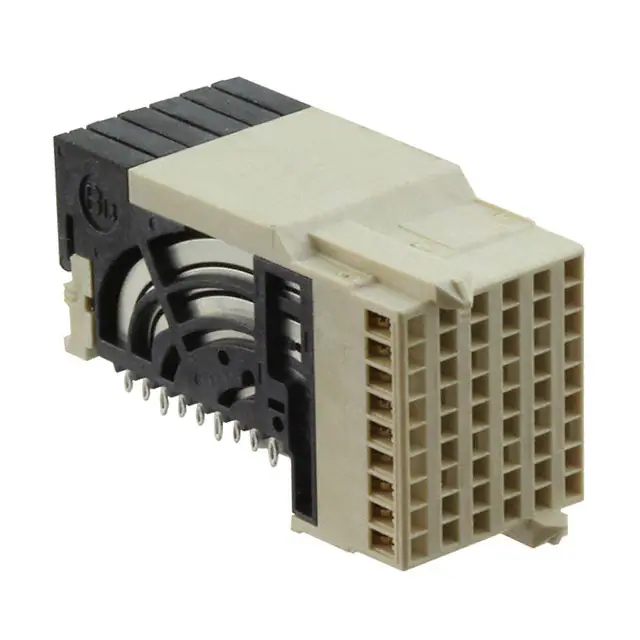

10123420-101LFCONN RCPT HIGH SPEED 54P EDGE MT |
440 |
|
Datasheet |
Airmax VS2™ | Tube | Active | Daughtercard | Receptacle, Female Sockets | High Speed | 54 | All | 0.079" (2.00mm) | - | 6 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | Gold | - | Natural |
|
0465629203VERT REC TEN60 3CKT DC AS |
648 |
|
Datasheet |
EXTreme Ten60Power 46562 | Tray | Active | - | Receptacle, Female Blade Sockets | EXTreme Ten60Power | 3 | All | 0.217" (5.50mm) | 1 | - | Through Hole | Press-Fit | 3 Power | - | Gold | 30.0µin (0.76µm) | Black |
