| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Connector Usage | Connector Type | Connector Style | Number of Positions | Number of Positions Loaded | Pitch | Number of Rows | Number of Columns | Mounting Type | Termination | Contact Layout, Typical | Features | Contact Finish | Contact Finish Thickness | Color | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2170245-1CONN HEADER HIGH SPEED 90POS PCB |
570 |
|
Datasheet |
Z-PACK HM-Zd | Tube | Active | - | Header, Male Pins | High Speed | 90 | All | 0.098" (2.50mm) | 6 | 10 | Through Hole | Press-Fit | - | - | Gold | 30.0µin (0.76µm) | - |
|
10039851-101LFCONN HDR HI SPEED 54POS EDGE MT |
784 |
|
Datasheet |
Airmax VS® | Bulk | Active | Daughtercard | Header, Male Pins | High Speed | 54 | All | 0.055" (1.40mm) | 9 | 6 | Board Edge, Through Hole, Right Angle | Press-Fit | 18 Differential Pairs, 18 Ground | - | Gold | 30.0µin (0.76µm) | Natural |
|
0740611004CONN HEADER VHDM 80POS PCB |
1,356 |
|
Datasheet |
VHDM 74061 | Tube | Active | - | Header, Male Pins | VHDM, Guide Left | 80 | All | 0.079" (2.00mm) | 8 | 10 | Through Hole | Press-Fit | - | Shielded | Gold | 30.0µin (0.76µm) | Black |
|
120943-6CONN RCPT BLADE PWR 8POS EDGE MT |
674 |
|
Datasheet |
UPM (Universal Power Modules) | Bulk | Active | Backplane | Receptacle, Female Blade Sockets | Blade Power | 8 | All | - | 1 | - | Board Edge, Through Hole, Right Angle | Press-Fit | 8 Power | - | Gold | 50.0µin (1.27µm) | Gray |
|
84688-101LFCONN RCPT HIGH SPEED 36P EDGE MT |
358 |
|
Datasheet |
Metral® 1000 | Tube | Active | - | Receptacle, Female Sockets | High Speed | 36 | All | 0.079" (2.00mm) | 5 | - | Board Edge, Through Hole, Right Angle | Press-Fit | 30 Signal, 6 Ground | Board Guide, Shielded, Spacer | Gold | 30.0µin (0.76µm) | Natural |
|
10052824-101LFCONN HDR HI SPEED 72POS EDGE MT |
792 |
|
Datasheet |
Airmax VS® | Tube | Active | Daughtercard | Header, Male Pins | High Speed | 72 | All | - | 12 | 6 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | Gold | - | Natural |
|

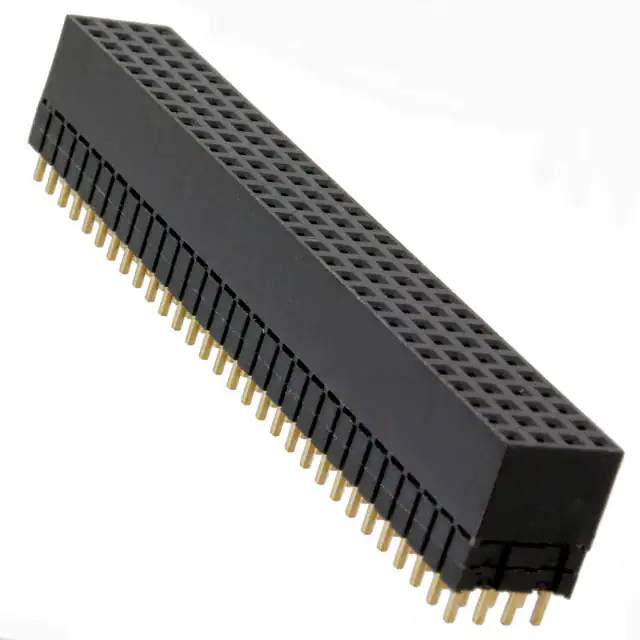

M22-6013005CONN NON-STKTHR PC/104+ 120P PCB |
3,712 |
|
Datasheet |
M22 | Tube | Active | - | Non-Stackthrough, Unkeyed (PC/104) | PC/104 Plus | 120 | All | 0.079" (2.00mm) | 4 | - | Through Hole | Solder | - | - | Gold | 3.00µin (0.076µm) | Black |
|
51625-XX001LFCONN RCPT BLADE PWR 35P EDGE MNT |
324 |
|
Datasheet |
PwrBlade® | Tray | Active | - | Receptacle, Female Sockets and Blade Sockets | Blade Power | 35 | All | 0.100" (2.54mm) | 4 | - | Board Edge, Through Hole, Right Angle | Solder | 24 Signal, 11 Power | Board Lock, Guide Pin | Gold or Gold, GXT™ | 30.0µin (0.76µm) | Black |
|
10114633-101LFCONN BACKPLANE |
536 |
|
Datasheet |
Airmax VS® | Tube | Active | - | Receptacle, Female Sockets | High Speed | 72 | All | 0.079" (2.00mm) | 12 | 6 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | Gold | - | Natural |
|
51939-667LFCONN HDR BLADE PWR 33POS EDGE MT |
376 |
|
Datasheet |
PwrBlade® | Tray | Active | - | Header, Male Pins and Blades | Blade Power | 33 | All | 0.100" (2.54mm) | 4 | - | Board Edge, Through Hole, Right Angle | Solder | 24 Signal, 9 Power | Mating Guide | Gold or Gold, GXT™ | 30.0µin (0.76µm) | Black |
|
2007705-1CONN RCPT IMPACT 90POS EDGE MNT |
950 |
|
Datasheet |
Impact | Tube | Active | Daughtercard | Receptacle, Female Sockets | Impact | 90 | All | 0.075" (1.91mm) | 9 | 10 | Board Edge, Through Hole, Right Angle | Press-Fit | 30 Differential Pairs | - | Gold | 30.0µin (0.76µm) | Black |
|
1-1410271-1CONN HEADER 4POS EDGE MNT |
412 |
|
Datasheet |
- | Tube | Active | Daughtercard | Header, Male Blades | - | 4 | All | 0.142" (3.60mm) | 1 | - | Board Edge, Through Hole, Right Angle | Press-Fit | 4 Power | - | Gold | 50.0µin (1.27µm) | Black |
|

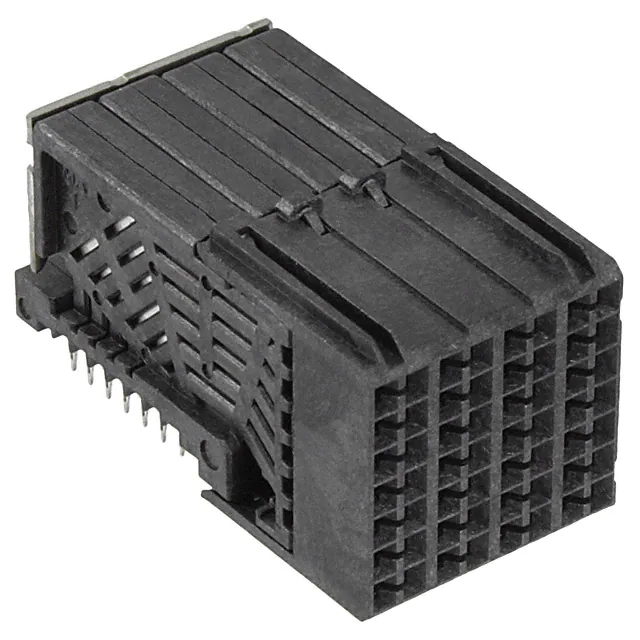

0760201004CONN RCPT I-TRAC 56POS EDGE MNT |
258 |
|
Datasheet |
GbX I-Trac 76020 | Tray | Active | Coplanar, Daughtercard | Receptacle, Female Sockets | I-Trac | 56 | All | - | 7 | 4 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | Gold | 30.0µin (0.76µm) | Black |
|

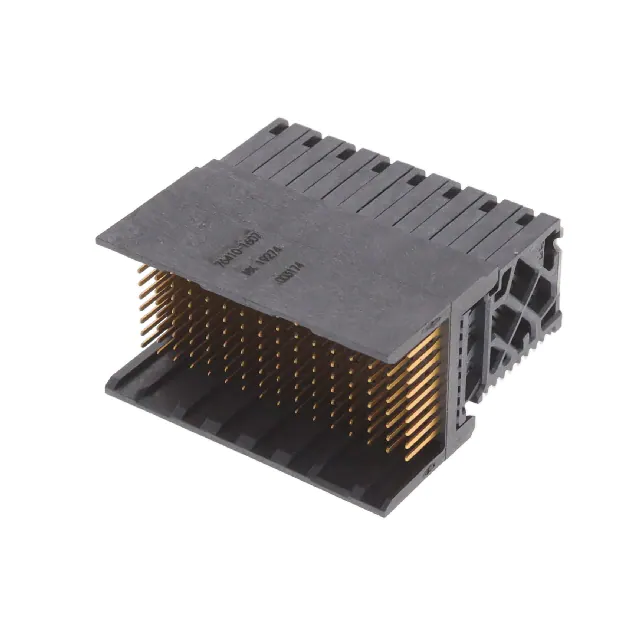

0764101607CONN HDR IMPACT 144POS EDGE MNT |
1,230 |
|
Datasheet |
Impact 76410 | Tray | Active | - | Header, Male Pins | Impact | 144 | All | - | 9 | 16 | Board Edge, Through Hole, Right Angle | Press-Fit | 48 Differential Pairs | - | Gold | 30.0µin (0.76µm) | Black |
|
2057410-1CONN RCPT IMPACT 96POS EDGE MNT |
1,148 |
|
Datasheet |
Impact | Tube | Active | Daughtercard | Receptacle, Female Sockets | Impact, Guide Right | 96 | All | 0.075" (1.91mm) | 6 | 16 | Board Edge, Through Hole, Right Angle | Press-Fit | - | Board Guide | Gold | 30.0µin (0.76µm) | Black |
|

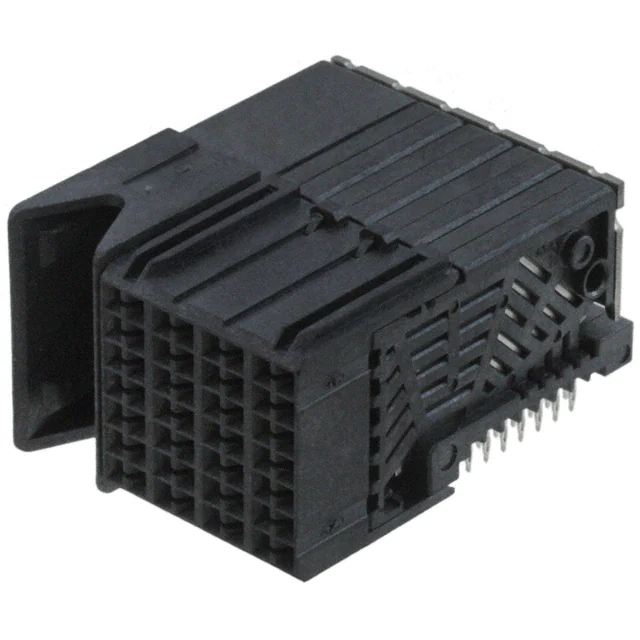

0760203004CONN RCPT I-TRAC 56POS EDGE MNT |
1,006 |
|
Datasheet |
GbX I-Trac 76020 | Tray | Active | Coplanar, Daughtercard | Receptacle, Female Sockets | I-Trac, Guide Left | 56 | All | - | 7 | 4 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | Gold | 30.0µin (0.76µm) | Black |
|

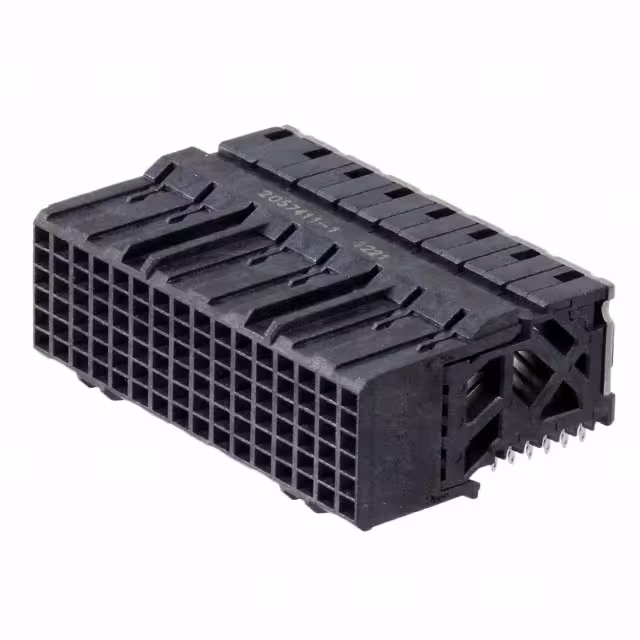

2057411-1CONN RCPT IMPACT 96POS EDGE MNT |
722 |
|
Datasheet |
Impact | Tube | Active | Daughtercard | Receptacle, Female Sockets | Impact | 96 | All | 0.075" (1.91mm) | 6 | 16 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | Gold | 30.0µin (0.76µm) | Black |
|
2057409-1CONN RCPT IMPACT 96POS PCB |
202 |
|
Datasheet |
Impact | Tube | Active | Daughtercard | Receptacle, Female Sockets | Impact, Guide Left | 96 | All | 0.075" (1.91mm) | 6 | 16 | Through Hole | Press-Fit | - | Board Guide | Gold | 30.0µin (0.76µm) | Black |
|
HM1F44TAP000H6LFCONN RCPT HI SPEED 192P EDGE MT |
372 |
|
Datasheet |
Metral® T | Tray | Active | - | Receptacle, Female Sockets | High Speed | 192 | All | 0.079" (2.00mm) | 4 | - | Board Edge, Through Hole, Right Angle | Solder | - | Board Guide, Spacer | Gold | 29.5µin (0.75µm) | Natural |
|
6469085-1CONN HEADER HIGH SPEED 90POS PCB |
640 |
|
Datasheet |
Z-PACK HM-Zd | Tube | Active | Backplane | Header, Male Pins and Blades | High Speed | 90 | All | 0.098" (2.50mm) | 6 | 10 | Through Hole | Press-Fit | 60 Signal, 30 Ground | - | Gold | 30.0µin (0.76µm) | - |
