| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Connector Usage | Connector Type | Connector Style | Number of Positions | Number of Positions Loaded | Pitch | Number of Rows | Number of Columns | Mounting Type | Termination | Contact Layout, Typical | Features | Contact Finish | Contact Finish Thickness | Color | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2042274-1CONN HEADER 2POS PCB |
980 |
|
Datasheet |
Elcon Mini | Tape & Reel (TR) | Active | - | Header, Male Blades | - | 2 | All | - | 1 | - | Through Hole | Solder | 2 Power | Board Lock | Silver | 118.1µin (3.00µm) | Black |
|

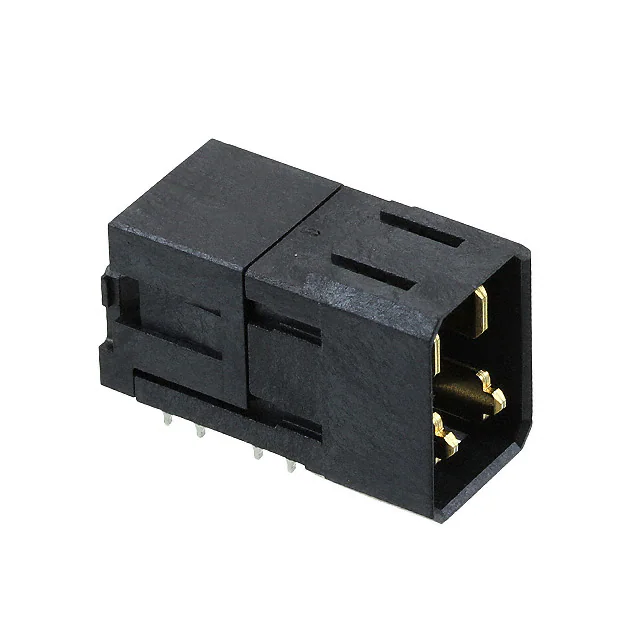

2169797-4CONN HEADER BLADE PWR 4P EDGE MT |
1,580 |
|
Datasheet |
Impact | Bulk | Active | - | Header, Male Blades | Blade Power | 4 | All | - | - | 2 | Board Edge, Through Hole, Right Angle | Press-Fit | 4 Power | - | Gold | - | Black |
|
0761651308CONN HEADER IMPACT 54POS PCB |
1,282 |
|
Datasheet |
Impact 76165 | Tray | Active | - | Header, Male Pins | Impact | 54 | All | 0.053" (1.35mm) | 9 | 6 | Through Hole | Press-Fit | 18 Differential Pairs | - | Gold | 30.0µin (0.76µm) | Black |
|
51666-001LFCONN RCPT BLADE PWR 26POS PCB |
748 |
|
Datasheet |
PwrBlade® | Tray | Active | - | Receptacle, Female Sockets and Blade Sockets | Blade Power | 26 | All | 0.100" (2.54mm) | 4 | - | Through Hole | Press-Fit | 24 Signal, 2 Power | Guide Pin | Gold or Gold, GXT™ | 30.0µin (0.76µm) | Black |
|
0464379201TEN60 R/A RECEPT ASSY 1-C |
1,678 |
|
Datasheet |
EXTreme Ten60Power 46437 | Tray | Active | - | Plug, Male Blades | EXTreme Ten60Power | 1 | All | - | 1 | - | Through Hole, Right Angle | Press-Fit | 1 Power | - | Gold | 30.0µin (0.76µm) | Black |
|
ET60T-000-3-08-000-L-R1-S.100" EXTREME TEN60POWER 60 AMP |
254 |
|
Datasheet |
EXTreme Ten60Power™ | Bulk | Active | - | Header, Male Pins | EXTreme Ten60Power | 24 | All | 0.100" (2.54mm) | 3 | 8 | Through Hole, Right Angle | Solder | - | Board Guide, Guide Pin | Gold | 10.0µin (0.25µm) | Black |
|
0461130201CONN RCPT LPHPOWER 20POS PCB |
1,540 |
|
Datasheet |
EXTreme LPHPower 46113 | Tray | Active | - | Receptacle, Outer Shroud Contacts | LPHPower | 20 | All | 0.050" (1.27mm) | 2 | - | Through Hole | Press-Fit | - | - | Gold | 30.0µin (0.76µm) | Black |
|
120953-2CONN RCPT BLADE PWR 5POS PCB |
1,764 |
|
Datasheet |
UPM (Universal Power Modules) | Tube | Active | Backplane | Receptacle, Female Blade Sockets | Blade Power | 5 | All | - | 1 | - | Through Hole | Press-Fit | 5 Power | - | Gold or Gold-Palladium | - | Gray |
|
51762-10402400ABLFCONN RCPT BLADE PWR 28P EDGE MNT |
918 |
|
Datasheet |
PwrBlade® | Tray | Active | - | Receptacle, Female Sockets and Blade Sockets | Blade Power | 28 | All | 0.100" (2.54mm) | 4 | - | Board Edge, Through Hole, Right Angle | Solder | 24 Signal, 4 Power | Guide Pin | Gold or Gold, GXT™ | 30.0µin (0.76µm) | Black |
|
0464379203RA REC TEN60 3CKT DC ASSY |
1,108 |
|
Datasheet |
EXTreme Ten60Power 46437 | Tray | Active | - | Plug, Male Blades | EXTreme Ten60Power | 3 | All | 0.217" (5.50mm) | 1 | - | Through Hole, Right Angle | Press-Fit | 3 Power | - | Gold | 30.0µin (0.76µm) | Black |
|

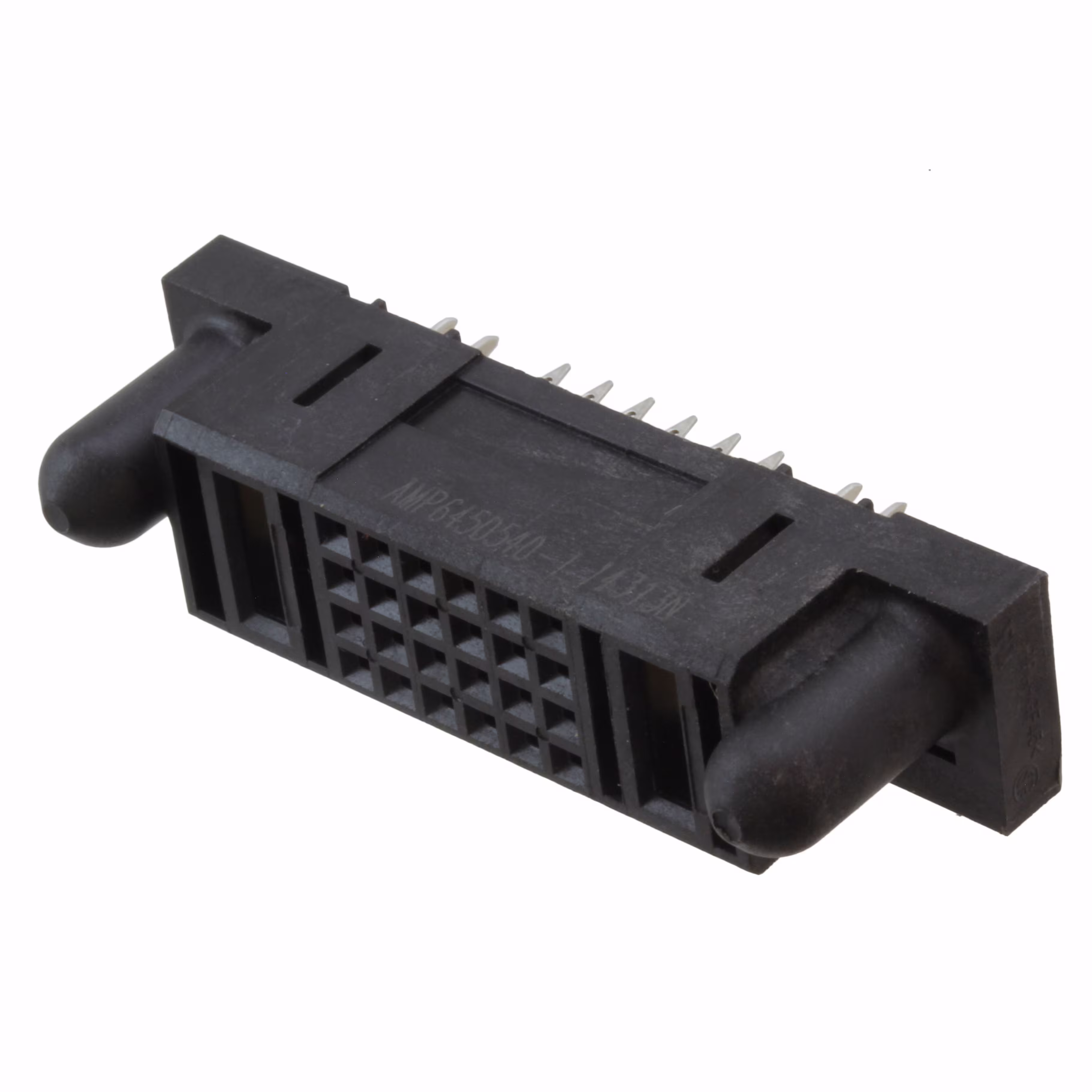

6450540-1CONN RCPT MULTI-BEAM 26POS PCB |
2,200 |
|
Datasheet |
MULTI-BEAM XL | Bulk | Active | - | Receptacle, Female Sockets and Blade Sockets | Multi-Beam | 26 | All | 0.100" (2.54mm) | 4 | - | Through Hole | Press-Fit | 24 Signal, 2 Power | Board Lock, Guide Pin | Gold | 30.0µin (0.76µm) | - |
|
5536511-2CONN RCPT FUTUREBUS 48P EDGE MNT |
2,530 |
|
Datasheet |
Z-PACK | Tube | Active | - | Receptacle, Female Sockets | Futurebus | 48 | All | 0.079" (2.00mm) | 4 | - | Board Edge, Through Hole, Right Angle | Press-Fit | - | Spacer | Gold | - | Natural |
|

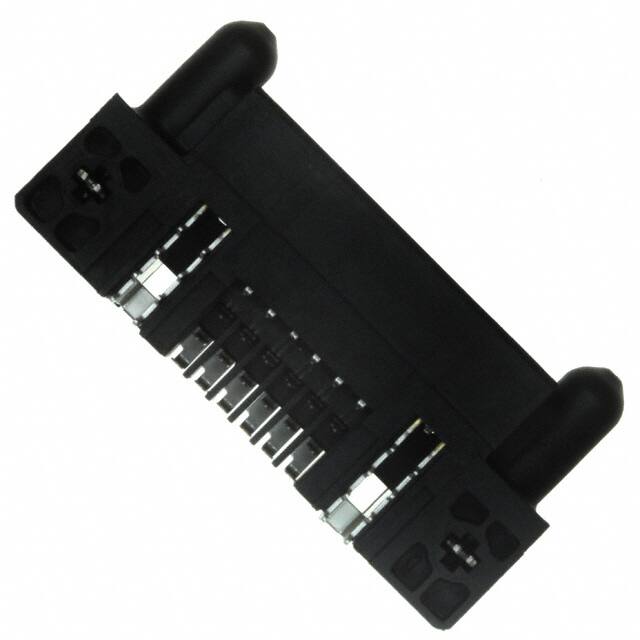

51416-001LFCONN RCPT BLADE PWR 26P EDGE MNT |
322 |
|
Datasheet |
PwrBlade® | Tray | Active | - | Receptacle, Female Sockets and Blade Sockets | Blade Power | 26 | All | 0.100" (2.54mm) | 4 | - | Board Edge, Through Hole, Right Angle | Solder | 24 Signal, 2 Power | Board Lock, Guide Pin | Gold or Gold, GXT™ | 30.0µin (0.76µm) | Black |
|
10153303-30111LF2.0MM PC104+,4*30P,DIP=3.0,TH,GO |
2,850 |
|
Datasheet |
- | Tube | Active | - | Stackthrough, Unkeyed (PC/104) | PC/104 | 120 | All | 0.079" (2.00mm) | 4 | - | Through Hole | Solder | - | - | Gold | Flash | Black |
|
88953-101LFCONN HEADER 96POS PCB |
308 |
|
Datasheet |
Metral® | Tube | Active | - | Header, Male Pins | - | 96 | All | 0.079" (2.00mm) | 4 | - | Through Hole | Solder | - | Board Guide | Gold | 30.0µin (0.76µm) | Natural, White |
|
51762-10602000AALFCONN RCPT BLADE PWR 26P EDGE MNT |
804 |
|
Datasheet |
PwrBlade® | Tray | Active | - | Receptacle, Female Sockets and Blade Sockets | Blade Power | 26 | All | 0.100" (2.54mm) | 4 | - | Board Edge, Through Hole, Right Angle | Solder | 20 Signal, 6 Power | Board Lock, Guide Pin | Gold or Gold, GXT™ | 30.0µin (0.76µm) | Black |
|
6450140-6CONN RCPT MULTI-BEAM 26POS PCB |
3,590 |
|
Datasheet |
MULTI-BEAM XL | Tray | Active | - | Receptacle, Female Sockets and Blade Sockets | Multi-Beam | 26 | All | 0.100" (2.54mm) | 4 | - | Through Hole | Solder | 24 Signal, 2 Power | Board Lock, Guide Pin | Gold | 30.0µin (0.76µm) | - |
|

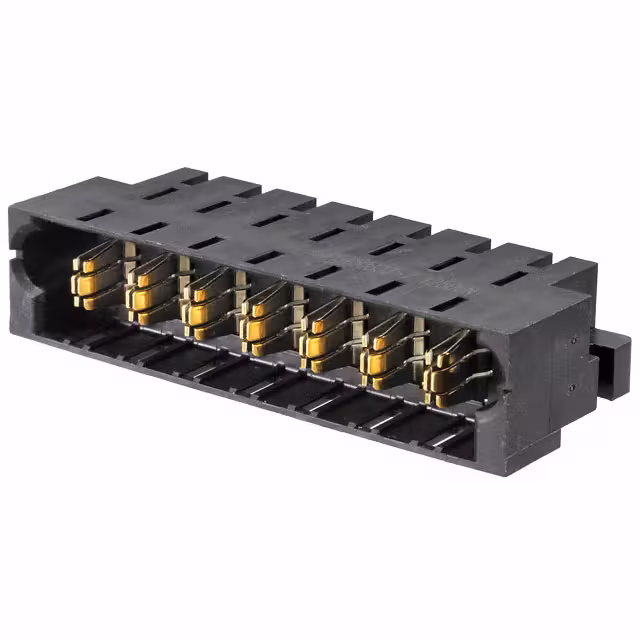

6450833-7CONN HDR MULTI-BEAM 7POS EDGE MT |
294 |
|
Datasheet |
MULTI-BEAM XLE | Tray | Active | - | Header, Male Blades | Multi-Beam | 7 | All | 0.118" (3.00mm) | 1 | - | Board Edge, Through Hole, Right Angle | Solder | 7 Power | Board Lock, Mating Guide | Gold | 30.0µin (0.76µm) | Black |
|
120943-2CONN RCPT BLADE PWR 4POS EDGE MT |
906 |
|
Datasheet |
UPM (Universal Power Modules) | Tube | Active | Backplane | Receptacle, Female Blade Sockets | Blade Power | 4 | All | - | 1 | - | Board Edge, Through Hole, Right Angle | Press-Fit | 4 Power | - | Gold | 50.0µin (1.27µm) | Gray |
|
5536504-2CONN HEADER FUTUREBUS 48POS PCB |
516 |
|
Datasheet |
Z-PACK | Tube | Active | - | Header, Male Pins | Futurebus | 48 | All | 0.079" (2.00mm) | 4 | - | Through Hole | Press-Fit | - | - | Gold | - | Natural |
