TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3.0SMCJ6.0A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
1,452 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 291.3A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
3.0SMCJ13A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
960 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 139.4A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SMBJ48CA R5GTVS DIODE 48VWM 77.4VC DO214AA |
6,560 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 48V | 53.3V | 77.4V | 8.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SRV05-4.TCTSOT23-6 |
2,930 |
|
Datasheet |
SOT-23-6 | UMW | Cut Tape (CT) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 20V | 3A (8/20µs) | 60W | Yes | Ethernet, USB | 0.8pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
BZW06-376RLTVS DIODE 376VWM 776VC DO15 |
2,118 |
|
Datasheet |
DO-204AC, DO-15, Axial | BZW06, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 376V | 418V | 776V | 5.7A (8/20µs) | 600W | No | General Purpose | 350pF @ 1MHz | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
L35UN-Q1PRESSFIT DIODE FOR AUTOMOTIVE AP |
480 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D35P-Q1PRESSFIT DIODE FOR AUTOMOTIVE AP |
480 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D35N-Q1PRESSFIT DIODE FOR AUTOMOTIVE AP |
480 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
L35UP-Q1PRESSFIT DIODE FOR AUTOMOTIVE AP |
472 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

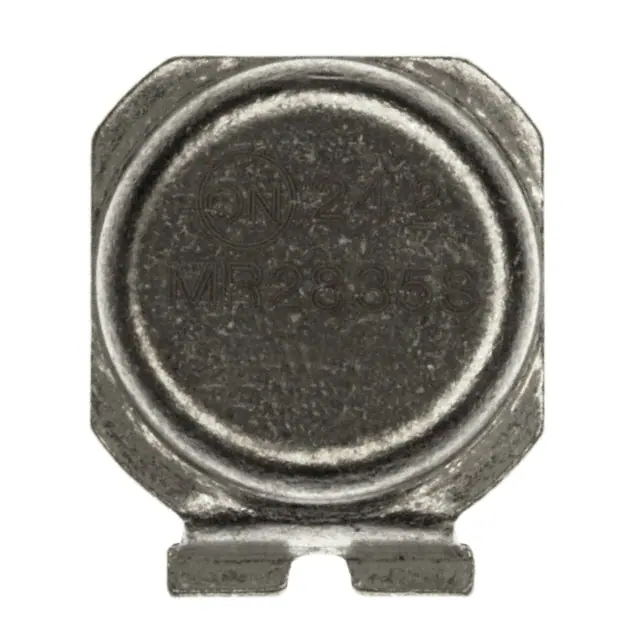

MR2835SKTVS DIODE 23VWM TOP CAN |
10,666 |
|
Datasheet |
Top Can | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 23V | 24V | - | - | - | No | General Purpose | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TOP CAN |
|
1.5SMC100A TR13 PBFREETVS DIODE 85.5VWM 137VC SMC |
5,940 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 85.5V | 95V | 137V | 11A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMB10J15CA R5GTVS DIODE 15VWM 24.4VC DO214AA |
5,100 |
|
Datasheet |
DO-214AA, SMB | SMB10J | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 15V | 16.7V | 24.4V | 41A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
3.0SMCJ12CATVS DIOD 3000W DO-214AB 12V |
3,436 |
|
Datasheet |
DO-214AB, SMC | 3.0SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 150.8A | 3000W (3kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
F35UP-Q1PRESSFIT DIODE FOR AUTOMOTIVE AP |
480 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F35UN-Q1PRESSFIT DIODE FOR AUTOMOTIVE AP |
478 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SMBJ15CA R5GTVS DIODE 15VWM 24.4VC DO214AA |
440 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 15V | 16.7V | 24.4V | 25.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMBJ58CA-13TVS DIODE 58VWM 93.6VC SMB |
18,000 |
|
- |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 58V | 64.4V | 93.6V | 6.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
P6KE540CA-TPTVS DIODE 459VWM 740VC DO15 |
7,850 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 459V | 513V | 740V | 810mA | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
|
SMBJ85CA-13TVS DIODE 85VWM 137VC SMB |
6,000 |
|
- |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 85V | 94.4V | 137V | 4.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMDJE40AHTVS DIODE 40VWM 64.5VC UNI |
5,600 |
|
Datasheet |
DO-214AB, SMC | SMDJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 46.5A | 3000W (3kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
