Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2801163SPD TYPE 1/TYPE 2 800VDC MCOV |
5,910 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 800VDC | 15 kA | 40 kA | 50 kA | 2 kV | 2.6 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
|
2024840000SPD TYPE 2 550VAC MCOV 1 POLE |
4,460 |
|
- |
VPU | Box | Obsolete | Type 2 | Base + Module | 1 | 550VAC | 20 kA | 40 kA | 200 kA | 1.8 kV | - | -40°C ~ 70°C | Remote Signaling Contacts | - | cURus |
|
2026360000SPD TYPE 2 180VAC MCOV 4 POLE |
16,574 |
|
- |
VPU | Box | Obsolete | Type 2 | Base + Module | 4 | 180VAC | 20 kA | 40 kA | 25 kA | - | 900 V | -40°C ~ 70°C | - | DIN Rail | - |
|
|
2026150000SPD TYPE 2 385VAC MCOV 1 POLE |
17,486 |
|
- |
VPU | Box | Obsolete | Type 2 | Base + Module | 1 | 385VAC | - | 40 kA | - | - | - | - | Remote Signaling Contacts | DIN Rail | - |
|
|
SP100-T2F-1203Y-LCSPD TYPE 2 150VAC MCOV 1 POLE |
17,714 |
|
Datasheet |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 150VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
SP100-T2F-4803D-LCSPD TYPE 2 550VAC MCOV 1 POLE |
16,112 |
|
Datasheet |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 550VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
SP100-T2F-2403D-LCSPD TYPE 2 320VAC MCOV 1 POLE |
7,416 |
|
Datasheet |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 320VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
SP100-T2F-2773Y-LCSPD TYPE 2 320VAC MCOV 1 POLE |
16,750 |
|
Datasheet |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 320VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
HBL3W100CSPD |
9,502 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HBL4W100CSPD |
9,258 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HBL10W100CSPD |
13,782 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSPMA3208WYGRSPD TYPE 1 208VAC MCOV 3 POLE |
5,142 |
|
Datasheet |
BSPMA | Bulk | Active | Type 1 | Base + Module | 3 | 208VAC | - | - | 200 kA | - | - | - | Remote Signaling Contacts | DIN Rail | CSA, UL |
|
|
2800671SPD TYPE 1/TYPE 2 264VAC MCOV |
12,368 |
|
Datasheet |
VAL-MS | Bulk | Obsolete | Type 1, Type 2 | Base + Module | 1 | 264VAC | 12.5 kA | 50 kA | 25 kA | - | 2 kV | -40°C ~ 80°C | - | DIN Rail | - |
|
|
BSPS1400WESPD TYPE 1 440VAC MCOV 1 POLE |
10,410 |
|
Datasheet |
BSPS | Bulk | Obsolete | Type 1 | Base + Module | 1 | 440VAC | 35 kA | - | 50 kA | - | 2.5 kV | -40°C ~ 80°C | - | DIN Rail | CE |
|
|
SP100-T2F-240SP-LCSPD TYPE 2 300VAC MCOV 1 POLE |
10,950 |
|
Datasheet |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 300VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
MA1IMA12SPD TYPE 2 150V MCOV 1 POLE |
19,520 |
|
Datasheet |
- | Box | Active | Type 2 | Module Only | 1 | 150V | 20 kA | 120 kA | 200 kA | - | - | 65°C | - | Panel Mount | - |
|

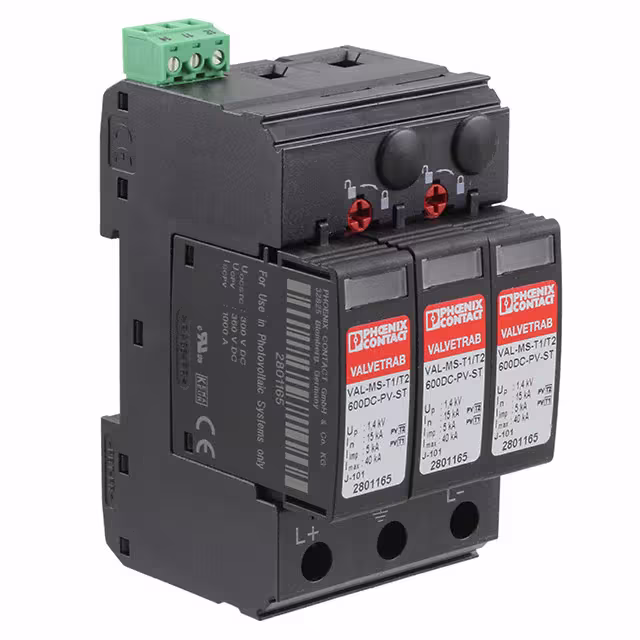

2801164SPD TYPE 1/TYPE 2 800VDC MCOV |
12,754 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 800VDC | 15 kA | 40 kA | 50 kA | 2 kV | 2.6 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cULus, EAC, UR |
|
|
SP200-T2F-1201P-TTSPD TYPE 2 150VAC MCOV 1 POLE |
17,206 |
|
Datasheet |
SP200 | Bulk | Active | Type 2 | Base + Module | 1 | 150VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
2025570000SPD TYPE 2 510VAC MCOV 1 POLE |
11,770 |
|
- |
VPU | Box | Obsolete | Type 2 | Base + Module | 1 | 510VAC | - | 40 kA | - | - | - | - | Remote Signaling Contacts | DIN Rail | - |
|
|
BSPS1400WERSPD TYPE 1 440VAC MCOV 1 POLE |
19,232 |
|
Datasheet |
BSPS | Bulk | Obsolete | Type 1 | Base + Module | 1 | 440VAC | 25 kA | - | 50 kA | - | 2.5 kV | -40°C ~ 80°C | Remote Signaling Contacts | DIN Rail | CE |
