Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS74US-480DSPD TYPE 1 550VAC MCOV 1 POLE |
11,288 |
|
- |
- | Active | Type 1 | Base + Module | 1 | 550VAC | - | - | 200 kA | 1.5 kV | - | -40°C ~ 85°C | - | DIN Rail | - | |
|
DS74US-600DSPD TYPE 1 840VAC MCOV 1 POLE |
5,766 |
|
- |
- | Active | Type 1 | Base + Module | 1 | 840VAC | 20 kA | 75 kA | 200 kA | 2.5 kV | - | -40°C ~ 85°C | - | DIN Rail | - | |
|
2736490000SPD TYPE 2 300VAC MCOV 4 POLE |
6,970 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 4 | 300VAC | 20 kA | 50 kA | 200 kA | 900 V | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
DS74US-277Y/GSPD TYPE 1 840VAC MCOV 1 POLE |
13,550 |
|
- |
- | Active | Type 1 | Base + Module | 1 | 840VAC | 20 kA | 75 kA | 200 kA | 1.5 kV | - | -40°C ~ 85°C | - | DIN Rail | - | |
|
|
SP100-T2F-1203Y-TTSPD TYPE 2 150VAC MCOV 1 POLE |
10,842 |
|
Datasheet |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 150VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
SP100-T2F-240SP-TTSPD TYPE 2 300VAC MCOV 1 POLE |
9,556 |
|
Datasheet |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 300VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
SP100-T2F-2773Y-TTSPD TYPE 2 320VAC MCOV 1 POLE |
11,262 |
|
Datasheet |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 320VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
SP100-T2F-4803D-TTSPD TYPE 2 550VAC MCOV 1 POLE |
7,638 |
|
Datasheet |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 550VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
SP100-T2F-2403D-TTSPD TYPE 2 320VAC MCOV 1 POLE |
16,402 |
|
Datasheet |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 320VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
SPD2-PV750-MSPD TYP 1/TYP 2 1.5KV MCOV 1POLE |
7,104 |
|
- |
SPD2 PV | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 1.5kV | 20 kA | 40 kA | 65 kA | 4 kV | 4.8 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
2905465SPD TYPE 1/TYPE 2 350VAC MCOV |
14,312 |
|
Datasheet |
FLT | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 350VAC | 25 kA | 100 kA | 25 kA | 1.2 kV | 1.5 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
|

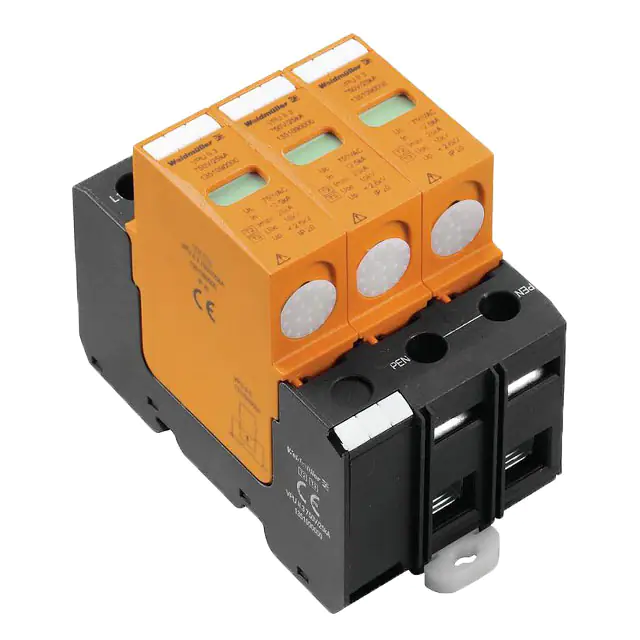

2025600000SPD TYPE 1 550VAC MCOV 1 POLE |
14,248 |
|
- |
VPU | Box | Obsolete | Type 1 | Base + Module | 1 | 550VAC | 20 kA | 40 kA | 25 kA | - | - | -40°C ~ 70°C | - | Chassis Mount | CE, cURus |
|
2024830000SPD TYPE 1 275VAC MCOV 1 POLE |
8,304 |
|
- |
VPU | Box | Obsolete | Type 1 | Base + Module | 1 | 275VAC | 20 kA | 40 kA | 25 kA | - | - | -40°C ~ 70°C | - | Chassis Mount | CE, cURus |
|
2024600000SPD TYPE 1 180VAC MCOV 1 POLE |
10,778 |
|
- |
VPU | Box | Obsolete | Type 1 | Base + Module | 1 | 180VAC | 20 kA | 40 kA | 25 kA | - | - | -40°C ~ 70°C | - | Chassis Mount | CE, cURus |
|

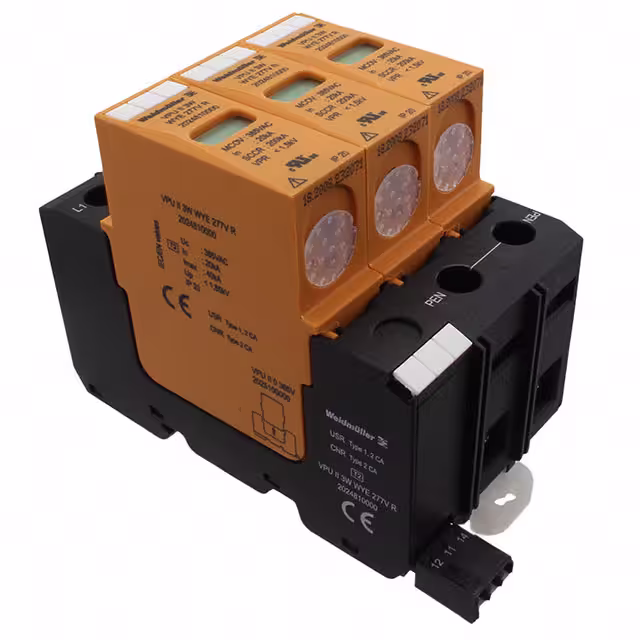

2024810000SPD TYPE 1 385VAC MCOV 1 POLE |
8,982 |
|
- |
VPU | Box | Obsolete | Type 1 | Base + Module | 1 | 385VAC | 20 kA | 40 kA | 25 kA | - | - | -40°C ~ 70°C | - | Chassis Mount | CE, cURus |
|
2910375SPD TYPE 2 385VAC MCOV 1 POLE |
8,574 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 385VAC | 40 kA | 40 kA | 25 kA | 2.5 kV | 4 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
|
SP100-T2F-1201P-LCSPD TYPE 2 150VAC MCOV 1 POLE |
11,926 |
|
Datasheet |
SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 150VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
BSPMA3240DLGRSPD TYPE 1/TYPE 4 550VAC MCOV |
13,904 |
|
Datasheet |
BSPMA | Bulk | Active | Type 1, Type 4 | Base + Module | 3 | 550VAC | 20 kA | 50 kA | 200 kA | 1.5 kV | - | -35°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CSA, UL |
|
|
15617.2SPD TYPE 1 255VAC MCOV 1 POLE |
13,748 |
|
Datasheet |
CP DS | Box | Active | Type 1 | Module Only | 1 | 255VAC | 30 kA | 70 kA | - | 400 V | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|

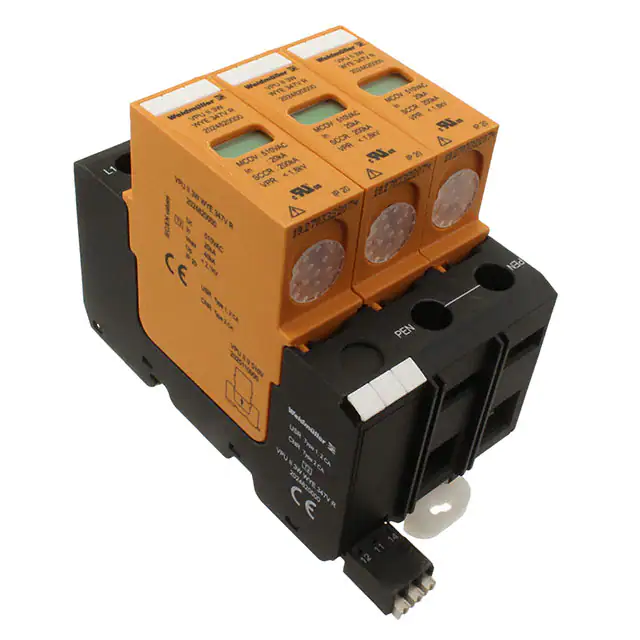

2024820000SPD TYPE 2 510VAC MCOV 1 POLE |
7,032 |
|
- |
VPU | Box | Obsolete | Type 2 | Base + Module | 1 | 510VAC | 20 kA | 40 kA | 200 kA | 1.8 kV | - | -40°C ~ 70°C | Remote Signaling Contacts | - | cURus |
