Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2908684SPD 150VAC/150VDC MCOV 1 POLE |
5,846 |
|
Datasheet |
BXT-4XP | Box | Active | - | Module Only | 1 | 150VAC, 150VDC | 5 kA | 10 kA | 10 kA | 1 kV | - | -40°C ~ 80°C | - | Wall Mount | cUL, UL |
|
STV25K-24SSPD TYPE 4 275VAC MCOV 1 POLE |
7,606 |
|
Datasheet |
STV25K | Bulk | Active | Type 4 | Module Only | 1 | 275VAC | - | - | - | 900 V | - | -40°C ~ 60°C | Visual Life Indicator | DIN Rail | cURus |
|
HFNF120IESE005SPD 150VAC MCOV 1 POLE |
4,986 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 150VAC | 3 kA | - | - | - | - | - | - | DIN Rail | - |
|
|
HFNF120IESE020SPD 150VAC MCOV 1 POLE |
4,348 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 150VAC | 3 kA | - | - | - | - | - | - | DIN Rail | - |
|
LSP05480LLPSPD TYPE 2/TYPE 4 510VAC MCOV |
3,434 |
|
Datasheet |
LSP | Tray | Active | Type 2, Type 4 | Module Only | 1 | 510VAC | 5 kA | 10 kA | - | - | 1.9 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
LSP05347PMSPD TYPE 2/TYPE 4 420VAC MCOV |
3,404 |
|
Datasheet |
LSP | Tray | Active | Type 2, Type 4 | Module Only | 1 | 420VAC | 5 kA | 10 kA | - | - | 1.7 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
LSP10GI277PSPD TYPE 2 320VAC MCOV 1 POLE |
2,442 |
|
Datasheet |
LSP | Bulk | Active | Type 2 | Module Only | 1 | 320VAC | 10 kA | 20 kA | - | - | 1.4 kV | -40°C ~ 85°C | Thermally Protected | Screw | UL |
|
LST2757VL2NT1SPD TYP 1/TYP 2/TYP4 275VAC MCOV |
2,568 |
|
Datasheet |
LST | Tray | Active | Type 1, Type 2, Type 4 | Module Only | 1 | 275VAC | 20 kA | - | 200 kA | 900 V | - | -40°C ~ 85°C | Thermally Protected | Through Hole | UL |
|
LSP10GIHP480SSPD TYPE 2/TYPE 3 510VAC MCOV |
8,496 |
|
Datasheet |
LSP | Bulk | Active | Type 2, Type 3 | Module Only | 1 | 510VAC | 10 kA | 20 kA | - | - | - | -45°C ~ 75°C | Thermally Protected | Screw | cURus, KEMA-KEUR, UL |
|
1250-1S-400SPD TYPE 2/TYPE 4 420VAC MCOV |
4,886 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 1 | 420VAC | 20 kA | 50 kA | 100 kA | 1.2 kV | 1.8 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|
1250-1S-480SPD TYPE 2/TYPE 4 550VAC MCOV |
5,308 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 1 | 550VAC | 20 kA | 50 kA | 100 kA | 1.8 kV | 2.5 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|
2907880SPD TYPE 2 450VDC MCOV 1 POLE |
3,844 |
|
Datasheet |
VAL | Bulk | Active | Type 2 | Module Only | 1 | 450VDC | 20 kA | 40 kA | 6 kA | - | 1.5 kV | -40°C ~ 80°C | - | Base Mount | cUL, EAC, UL |
|
2910341SPD TYPE 2 750VAC MCOV 1 POLE |
3,494 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Module Only | 1 | 750VAC | 15 kA | 30 kA | 25 kA | 2.5 kV | 2.9 kV | -40°C ~ 80°C | - | Base Mount | cUL, UL |
|

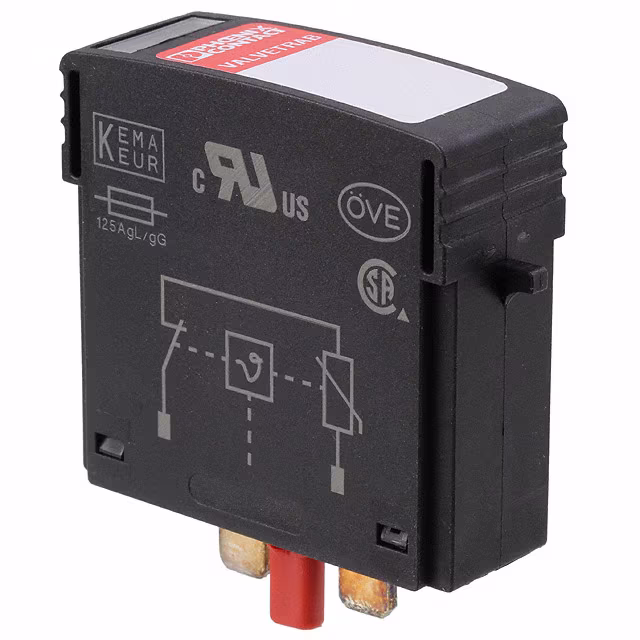

2807573SPD TYP2 75VAC/100VDC MCOV 1POLE |
7,546 |
|
Datasheet |
- | Bulk | Active | Type 2 | Module Only | 1 | 75VAC, 100VDC | 15 kA | 40 kA | 25 kA | - | 550 V | -40°C ~ 80°C | - | Base Mount | CB, CSA, cUR, cURus, EAC, UR |
|
2910343SPD TYPE 2 100VDC MCOV 1 POLE |
2,450 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 100VDC | 15 kA | 40 kA | 5 kA | - | 550 V | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
2856595SPD TYPE 2 350VAC MCOV 1 POLE |
3,416 |
|
Datasheet |
- | Bulk | Active | Type 2 | Module Only | 1 | 350VAC | 10 kA | 20 kA | 25 kA | - | 1.5 kV | -40°C ~ 80°C | - | Base Mount | CB, CCA, CSA, cUL, cULus, EAC, KEMA-KEUR, OVE, UL |
|

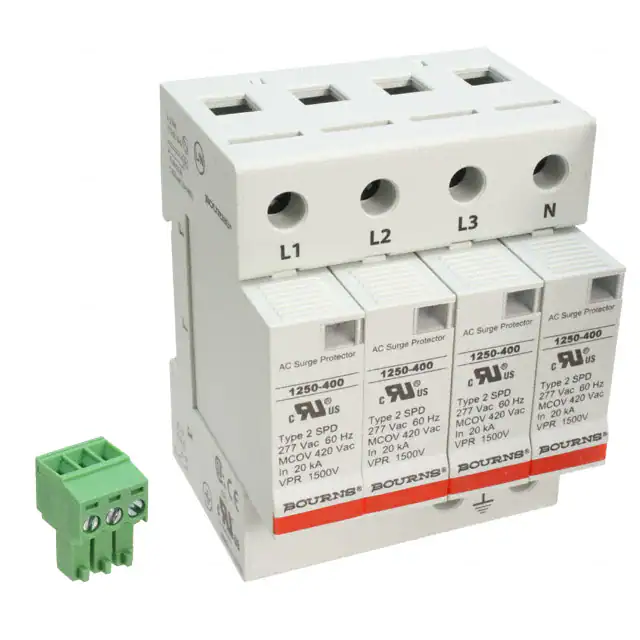

1250-4S-400SPD TYPE 2/TYPE 4 420VAC MCOV |
3,168 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 4 | 420VAC | 20 kA | 50 kA | 100 kA | 1.2 kV | 1.8 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|
2905341SPD TYPE 2 350VAC MCOV 1 POLE |
4,296 |
|
Datasheet |
VAL | Bulk | Active | Type 2 | Base + Module | 1 | 350VAC | 20 kA | 40 kA | 50 kA | - | 1.9 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
|
|
1220-10-I2-277M1SPD TYPE 2/TYPE 4 320VAC MCOV |
3,136 |
|
Datasheet |
1220 | Box | Active | Type 2, Type 4 | Module Only | 1 | 320VAC | 10 kA | 25 kA | 200 kA | 1 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | Surface Mount | cURus |
|
|
1220-10-I1-480M1SPD TYPE 2/TYPE 4 550VAC MCOV |
3,840 |
|
Datasheet |
1220 | Box | Active | Type 2, Type 4 | Module Only | 1 | 550VAC | 10 kA | 22 kA | 200 kA | 1.5 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | Surface Mount | cURus |
