Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2800191SPD TYPE 1/TYPE 2 264VAC MCOV |
5,308 |
|
Datasheet |
- | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 264VAC | 20 kA | 50 kA | - | - | 1.7 kV | -40°C ~ 80°C | - | Base Mount | CB, CCA, cUL, cULus, EAC, GL, KEMA-KEUR, OVE, UL |
|
2907917SPD TYP3 100VAC/80VDC MCOV 1POLE |
5,220 |
|
Datasheet |
PLT-SEC | Bulk | Active | Type 3 | Base + Module | 1 | 100VAC, 80VDC | 2 kA | 4 kA | 10 kA | - | 800 V | -40°C ~ 80°C | - | DIN Rail | CB, CSA, cUR, cURus, EAC, UR |
|
SPD2-550-1P0-RSPD TYPE 1/TYPE 2 550VAC MCOV |
2,318 |
|
Datasheet |
SPD2 1P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 550VAC | 20 kA | 50 kA | 200 kA | 2 kV | 2.5 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL, VDE |
|

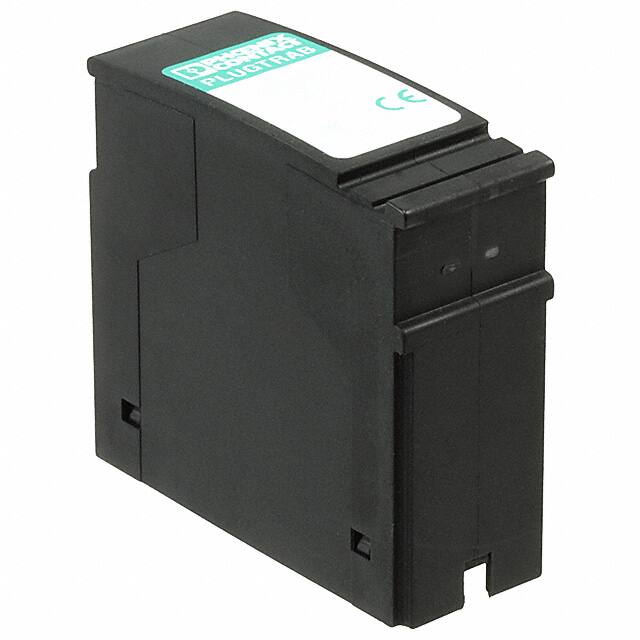

2856087SPD 20VAC/28VDC MCOV 1 POLE |
5,920 |
|
Datasheet |
- | Bulk | Active | - | Module Only | 1 | 20VAC, 28VDC | 10 kA | 20 kA | - | - | 80 V | -40°C ~ 85°C | - | Base Mount | EAC, UL |
|
2530620000SPD TYPE 2 MCOV 1 POLE |
9,672 |
|
Datasheet |
VPU | Box | Active | Type 2 | Base + Module | 1 | - | 20 kA | - | 50 kA | 2.5 kV | - | -40°C ~ 70°C | - | DIN Rail | UR |
|
2730670000SPD 350VAC MCOV 4 POLE |
3,662 |
|
Datasheet |
VPU | Box | Active | Surge Protection Module | Base + Module | 4 | 350VAC | 40 kA | 65 kA | 200 kA | 3 kV | 1.75 kV | -40°C ~ 85°C | - | DIN Rail | cULus, VDE |
|
2801296SPD 30VDC MCOV 1 POLE |
3,350 |
|
Datasheet |
PT | Bulk | Active | - | Base + Module | 1 | 30VDC | - | - | - | - | - | -40°C ~ 70°C | - | DIN Rail | cCSAus, CSA, CSAus, EAC, UL |
|
2910344SPD TYPE 2 100VDC MCOV 1 POLE |
7,408 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 100VDC | 15 kA | - | 5 kA | - | 550 V | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
2910385SPD TYPE 1 580VAC MCOV 1 POLE |
5,200 |
|
Datasheet |
VAL-US | Bulk | Active | Type 1 | Base + Module | 1 | 580VAC | 15 kA | 30 kA | 25 kA | 4 kV | 2.5 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
2907875SPD TYPE 2 250VDC MCOV 1 POLE |
9,622 |
|
Datasheet |
VAL | Bulk | Active | Type 2 | Base + Module | 1 | 250VDC | 20 kA | 40 kA | 6 kA | - | 3 kV | -40°C ~ 80°C | - | DIN Rail | cUL, EAC, UL |
|
2907876SPD TYPE 2 450VDC MCOV 1 POLE |
6,026 |
|
Datasheet |
VAL | Bulk | Active | Type 2 | Base + Module | 1 | 450VDC | 20 kA | 40 kA | 6 kA | - | 3 kV | -40°C ~ 80°C | - | DIN Rail | cUL, EAC, UL |
|
2730730000SPD 480VAC MCOV 3 POLE |
5,906 |
|
Datasheet |
VPU | Box | Active | Surge Protection Module | Base + Module | 3 | 480VAC | 20 kA | 50 kA | 200 kA | 3 kV | 2.3 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | cULus, VDE |
|
M9L13208SPD TYPE 1 350VAC MCOV 1 POLE |
6,450 |
|
Datasheet |
- | Box | Active | Type 1 | Base + Module | 1 | 350VAC | 20 kA | 75 kA | - | - | 1.2 kV | -25°C ~ 60°C | - | DIN Rail | - |
|

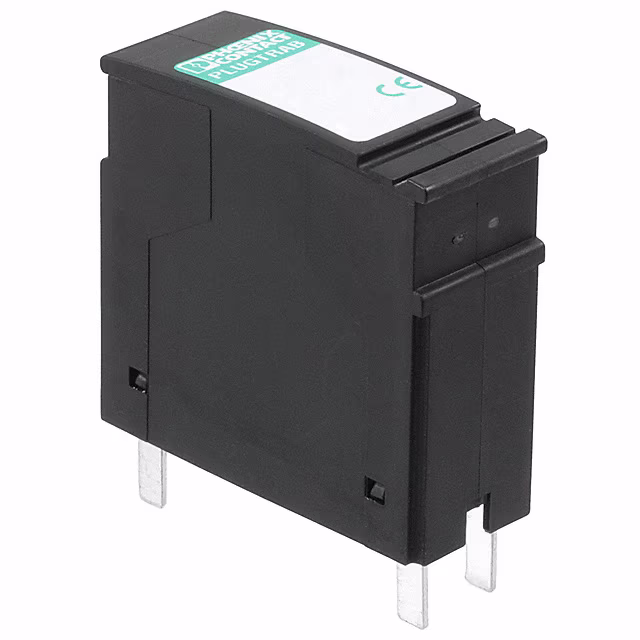

2838322SPD 20VAC/28VDC MCOV 1 POLE |
7,840 |
|
Datasheet |
- | Bulk | Active | - | Module Only | 1 | 20VAC, 28VDC | 10 kA | 20 kA | - | - | 80 V | -40°C ~ 85°C | - | Base Mount | cUL, EAC, UL |
|
SPD2-350-2P0-RSPD TYPE 1/TYPE 2 350VAC MCOV |
9,454 |
|
Datasheet |
SPD2 2P+0 | Bulk | Active | Type 1, Type 2 | Module Only | 2 | 350VAC | 20 kA | 50 kA | 200 kA | 1 kV | 1.75 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | cURus, UL, VDE |
|
2910356SPD TYPE 1 264VAC MCOV 1 POLE |
9,468 |
|
Datasheet |
VAL-US | Bulk | Active | Type 1 | Module Only | 1 | 264VAC | 50 kA | 50 kA | - | 1.2 kV | 1.7 kV | -40°C ~ 80°C | - | Base Mount | cUL, cULus, UL |
|

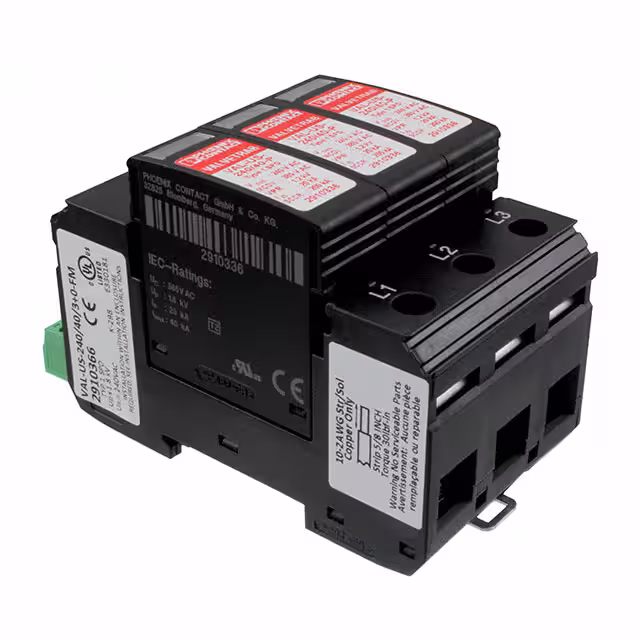

2910366SPD TYPE 2 385VAC MCOV 1 POLE |
9,388 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 385VAC | 20 kA | 40 kA | 25 kA | 2.5 kV | 2 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|

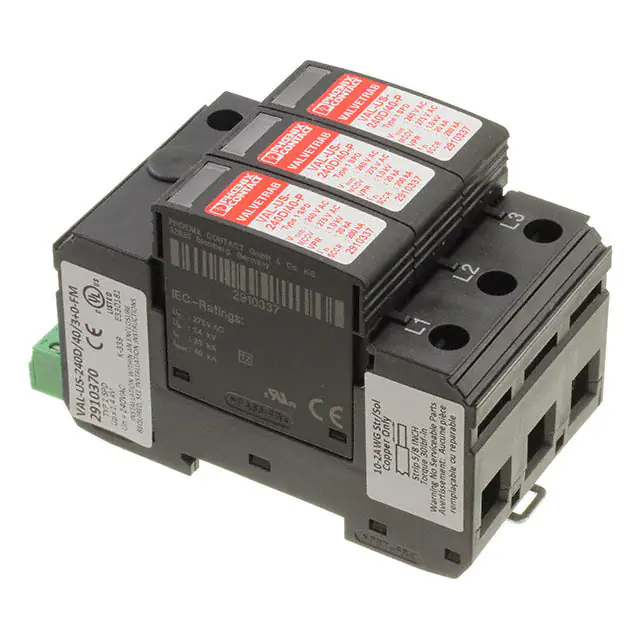

2910370SPD TYPE 2 275VAC MCOV 1 POLE |
3,556 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 275VAC | 20 kA | 40 kA | 25 kA | 1.8 kV | 1.35 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
|
SPD2-550-2P0-RSPD TYPE 1/TYPE 2 550VAC MCOV |
5,016 |
|
Datasheet |
SPD2 2P+0 | Bulk | Active | Type 1, Type 2 | Module Only | 2 | 550VAC | 20 kA | 50 kA | 200 kA | 2 kV | 2.5 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | cURus, UL, VDE |
|
1352240000SPD TYPE 1/TYPE 2 280VAC MCOV |
7,480 |
|
Datasheet |
VPU | Bulk | Active | Type 1, Type 2 | Base + Module | 4 | 280VAC | 50 kA | 50 kA | 25 kA | - | - | -40°C ~ 70°C | - | DIN Rail | CE, EAC |
