SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCC255-18IO1MOD THYRISTOR DUAL 1800V Y1-CU |
4,876 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 250 A | 450 A | 2 V | 150 mA | 9000A, 9600A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
M505015FMODULE SCR 50A 480VAC |
5,468 |
|
Datasheet |
M50 | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
T9G0101203DHSCR PHASE CTRL MOD 1000V 1200A |
8,708 |
|
Datasheet |
- | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1 kV | 1200 A | 1880 A | 3 V | 200 mA | 24650A, 27000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TD250N18KOFHPSA1SCR MODULE 1800V 410A MODULE |
7,136 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 250 A | 410 A | 2 V | 200 mA | 8000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
MCD310-22IO1MOD THYRISTOR/DIODE 2200V Y2-DCB |
5,558 |
|
Datasheet |
- | Y2-DCB | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 320 A | 500 A | 2 V | 150 mA | 9200A, 9800A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|

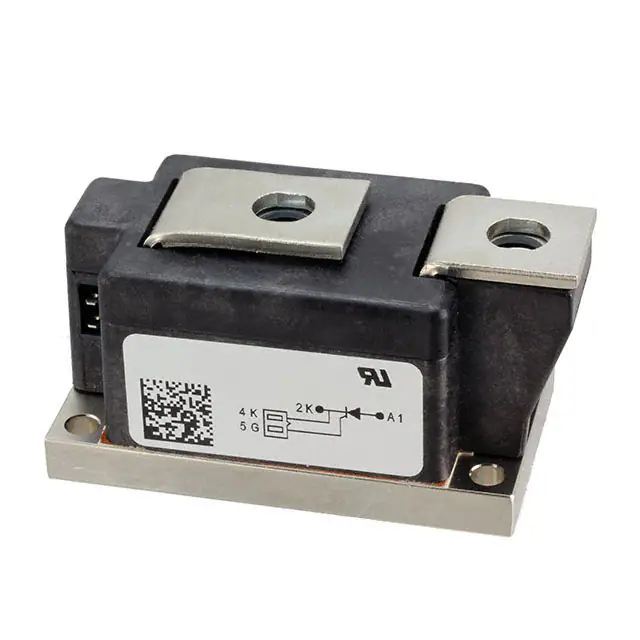

LS431650SCR MOD ISO SGL 1600V 500A |
18,380 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Active | Single | 1 SCR | 1.6 kV | 575 A | 900 A | 3 V | 200 mA | 16300A, 17000A | - | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
T9G0121003DHSCR PHASE CTRL MOD 1200V 1000A |
7,232 |
|
Datasheet |
- | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.2 kV | 1000 A | 1590 A | 3 V | 200 mA | 15500A, 17000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
F1857SD1000MODULE SCR/DIODE 55A 380VAC |
9,022 |
|
Datasheet |
F18 | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1 kV | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1857SDK1000MODULE SCR/DIODE 55A 380VAC |
19,414 |
|
Datasheet |
F18 | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1 kV | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
VSKT170-12SCR DBL HISCR 1200V 170A MAGNPAK |
18,004 |
|
Datasheet |
- | 3-MAGN-A-PAK™ | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 170 A | 377 A | 3 V | 200 mA | 5100A, 5350A | 500 mA | - | - | - | Chassis Mount |
|
VS-VSKL230-12PBFMODULE DIODE 230A MAGN-A-PAK |
11,778 |
|
Datasheet |
- | MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 230 A | 510 A | 3 V | 200 mA | 7500A, 7850A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKL230-16PBFMODULE DIODE 230A MAGN-A-PAK |
16,878 |
|
Datasheet |
- | MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 230 A | 510 A | 3 V | 200 mA | 7500A, 7850A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKL250-08PBFMODULE DIODE 250A MAGN-A-PAK |
13,056 |
|
Datasheet |
- | MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKL250-14PBFMODULE DIODE 250A MAGN-A-PAK |
10,652 |
|
Datasheet |
- | MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKH230-04PBFMODULE DIODE 230A MAGN-A-PAK |
10,088 |
|
Datasheet |
- | MAGN-A-PAK (3) | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 230 A | 510 A | 3 V | 200 mA | 7500A, 7850A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKH230-08PBFMODULE DIODE 230A MAGN-A-PAK |
14,486 |
|
Datasheet |
- | MAGN-A-PAK (3) | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 230 A | 510 A | 3 V | 200 mA | 7500A, 7850A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKH230-14PBFMODULE DIODE 230A MAGN-A-PAK |
6,170 |
|
Datasheet |
- | MAGN-A-PAK (3) | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 230 A | 510 A | 3 V | 200 mA | 7500A, 7850A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKH250-08PBFMODULE DIODE 250A MAGN-A-PAK |
15,390 |
|
Datasheet |
- | MAGN-A-PAK (3) | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKH250-14PBFMODULE DIODE 250A MAGN-A-PAK |
6,438 |
|
Datasheet |
- | MAGN-A-PAK (3) | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKH250-12PBFMODULE DIODE 250A MAGN-A-PAK |
14,024 |
|
Datasheet |
- | MAGN-A-PAK (3) | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
