SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
xxx-xxIO1.jpg)
|
MCD255-18IO1MOD THYRISTOR/DIODE 1800V Y1-CU |
5,686 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 250 A | 450 A | 2 V | 150 mA | 9000A, 9600A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
MCO500-14IO1MOD THYRISTOR SGL 1400V Y1-CU |
18,090 |
|
Datasheet |
- | Y1-CU | Box | Active | Single | 1 SCR | 1.4 kV | 560 A | 880 A | 2 V | 300 mA | 17000A, 16000A | 300 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
T820187504DHSCR PHASE CTRL MOD 1800V 750A |
5,396 |
|
Datasheet |
- | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.8 kV | 750 A | 1175 A | 3 V | 150 mA | 10950A, 12000A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
|

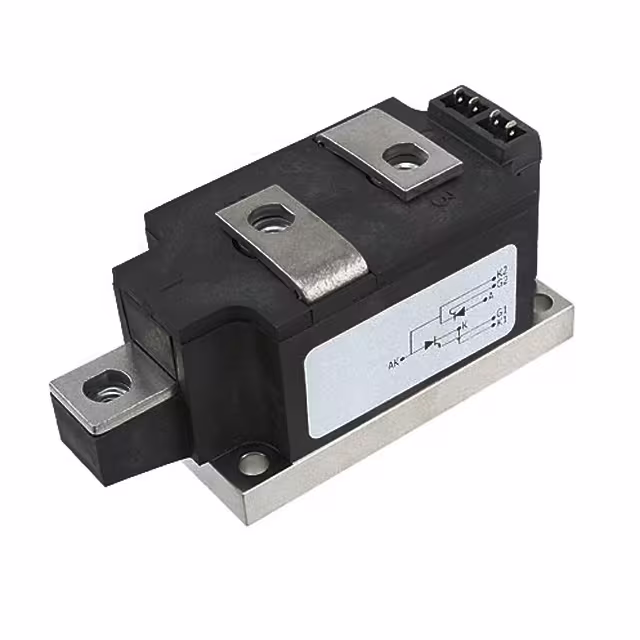

ND431825SCR MOD ISO DUAL 1800V 250A |
16,714 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 250 A | 393 A | 3 V | 150 mA | 8800A @ 60Hz | - | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKV250-12PBFMODULE THYRISTOR 250A MAGN-A-PAK |
15,376 |
|
Datasheet |
- | MAGN-A-PAK | Bulk | Last Time Buy | Common Anode - All SCRs | 2 SCRs | 1.2 kV | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
VS-VSKH250-04PBFMODULE DIODE 250A MAGN-A-PAK |
6,742 |
|
Datasheet |
- | MAGN-A-PAK (3) | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
TD140N22KOFTIMHPSA2THYR / DIODE MODULE DK |
15,580 |
|
- |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 159 A | 250 A | 2 V | 150 mA | 4000A @ 50Hz | 200 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
T9G0061003DHSCR PHASE CTRL MOD 600V 1000A |
5,680 |
|
Datasheet |
- | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 600 V | 1000 A | 1590 A | 3 V | 200 mA | 15500A, 17000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
L613FMODULE SCR/DIO 42.5A 280VAC PCB |
9,660 |
|
Datasheet |
L | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 800 V | - | - | 3 V | 100 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Through Hole |
|

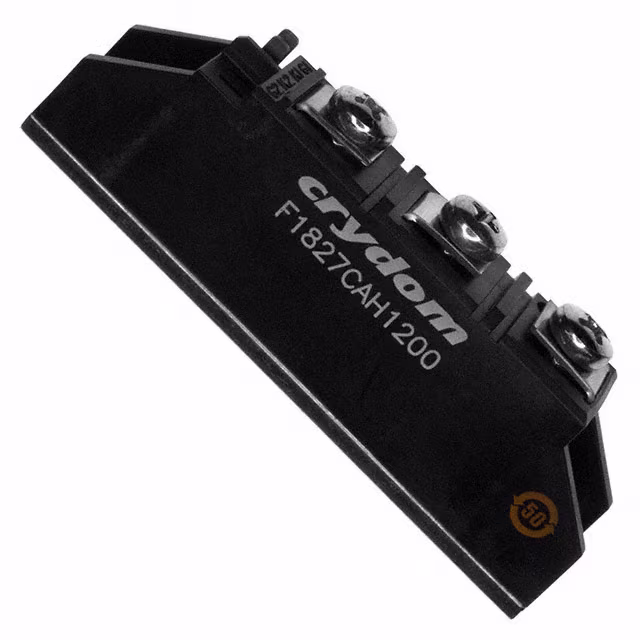

F1827CAH1200MODULE SCR/DIODE 25A 480VAC |
11,262 |
|
Datasheet |
F18 | Module | Bulk | Obsolete | Common Anode - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | - | - | 3 V | 150 mA | 400A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
F1827HD1200MODULE SCR/DIODE 25A 480VAC |
7,330 |
|
Datasheet |
F18 | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | - | - | 3 V | 150 mA | 400A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
VS-VSKT230-12PBFMODULE DIODE SCR 230A MAGN-A-PAK |
14,866 |
|
Datasheet |
- | MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 230 A | 510 A | 3 V | 200 mA | 7500A, 7850A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
MCC501-12IO1SCR THY PHASE LEG 1200V WC-501 |
16,342 |
|
Datasheet |
- | WC-501 | Tray | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.2 kV | - | - | - | - | - | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD501-12IO1SCR THRYRISTOR 1200V WC-501 |
17,114 |
|
Datasheet |
- | WC-501 | Tray | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | - | - | - | - | - | - | 125°C (TJ) | - | - | Chassis Mount |
|
|
T9G0061203DHSCR PHASE CTRL MOD 600V 1200A |
16,540 |
|
Datasheet |
- | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 600 V | 1200 A | 1880 A | 3 V | 200 mA | 24650A, 27000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC501-14IO1SCR THY PHASE LEG 1400V WC-501 |
11,362 |
|
Datasheet |
- | WC-501 | Tray | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.4 kV | - | - | - | - | - | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
ND431625SCR MODULE ISO DUAL 1600V 250A |
19,186 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 250 A | 393 A | 3 V | 150 mA | 8800A @ 60Hz | - | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKT250-04PBFMODULE DIODE SCR 250A MAGN-A-PAK |
9,850 |
|
Datasheet |
- | MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - All SCRs | 2 SCRs | 400 V | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
T820207504DHSCR PHASE CTRL MOD 2000V 750A |
19,692 |
|
Datasheet |
- | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 2 kV | 750 A | 1175 A | 3 V | 150 mA | 10950A, 12000A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
|
|
MCD501-16IO1SCR THRYRISTOR 1600V WC-501 |
16,912 |
|
Datasheet |
- | WC-501 | Tray | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | - | - | - | - | - | - | 125°C (TJ) | - | - | Chassis Mount |
