SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DFA150AA160DIODE MODULE 1600V 150A |
10,926 |
|
Datasheet |
- | Module | Active | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 150 A | - | 3 V | 70 mA | 1460A, 1600A | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | |
|
SCA240DA160THYRISTOR MODULE 1600V 240A |
11,780 |
|
Datasheet |
- | Module | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 240 A | 376 A | 3 V | 100 mA | 6000A, 6500A | 140 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount | |
xxx-xxIO1.jpg)
|
MCD225-12IO1MOD THYRISTOR/DIODE 1200V Y1-CU |
6,122 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 221 A | 400 A | 2 V | 150 mA | 8000A, 8500A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|

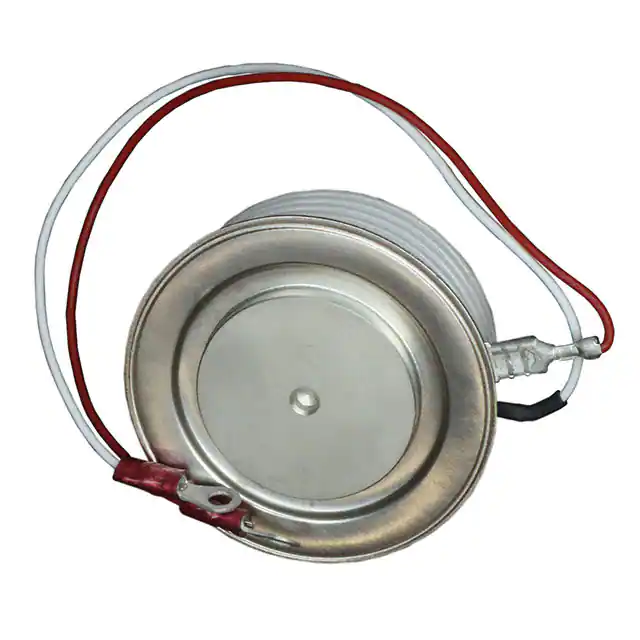

T820169004DHSCR PHASE CTRL MOD 1600V 900A |
7,270 |
|
Datasheet |
- | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.6 kV | 900 A | 1410 A | 3 V | 150 mA | 13700A, 15000A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
|
T430N18TOFXPSA1SCR MODULE 1800V 700A DO200AA |
13,990 |
|
Datasheet |
- | TO-200AA | Tray | Active | Single | 1 SCR | 1.8 kV | 433 A | 700 A | 2 V | 200 mA | 5200A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
T720165504DNSCR PHASE CTRL MOD 1600V 550A |
12,140 |
|
Datasheet |
- | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.6 kV | 550 A | 850 A | 3 V | 150 mA | 9125A, 10000A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
|
MCD161-22IO1MOD THYRISTOR/DIODE 2200V Y4-M6 |
14,732 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 165 A | 300 A | 2 V | 150 mA | 6000A, 6400A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TD92N16KOFHPSA2THYR / DIODE MODULE DK |
17,238 |
|
- |
TD | Module | Tray | Active | Common Anode - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 102 A | 160 A | 1.4 V | 120 mA | 2050A @ 50Hz | 200 mA | 140°C (TJ) | - | - | Chassis Mount |
|
|
MT250C16T3W-BPDISCRETE SEMICONDUCTOR MODULES T |
5,994 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Not For New Designs | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 250 A | - | 2.5 V | 150 mA | 9kA @ 50Hz | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MDMA360UB1600P-PCMDMA360UB1600PTED-PC |
6,262 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
M5010072MODULE PWR 100A 600V SCR CNTR CC |
9,328 |
|
Datasheet |
M50 | Module | Bulk | Obsolete | Common Cathode - All SCRs | 2 SCRs | 600 V | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
B644-2TMOD DIODE SCR 42.5A 480V .250"QC |
7,852 |
|
Datasheet |
B-2T | Module | Bulk | Obsolete | Bridge, Single Phase - All SCRs | 4 SCRs | 1.2 kV | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MCD310-12IO1MOD THYRISTOR/DIODE 1200V Y2-DCB |
7,278 |
|
Datasheet |
- | Y2-DCB | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 320 A | 500 A | 2 V | 150 mA | 9200A, 9800A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
T560N14TOFXPSA1SCR MODULE 1800V 809A DO200AA |
8,836 |
|
Datasheet |
- | DO-200AA, A-PUK | Tray | Active | Single | 1 SCR | 1.8 kV | 559 A | 809 A | 2 V | 200 mA | 8000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Clamp On |
|
T560N18TOFXPSA1SCR MODULE 1800V 809A DO200AA |
18,348 |
|
Datasheet |
- | DO-200AA, A-PUK | Tray | Active | Single | 1 SCR | 1.8 kV | 559 A | 809 A | 2 V | 200 mA | 8000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Clamp On |
|
MCC250-18IO1THYRISTOR DUAL 1800V 450A |
13,236 |
|
Datasheet |
- | Y2-DCB | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 287 A | 450 A | 2 V | 150 mA | 9000A, 9600A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
MCNA120UI2200PEDBIPOLAR MODULE - THYRISTOR E2-P |
7,134 |
|
Datasheet |
- | E2 | Box | Active | Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode | 3 SCRs, 3 Diodes | 2.2 kV | 75 A | 40 A | 1.4 V | 70 mA | 500A, 540A | 100 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
MCC170-16IO1MOD THYRISTOR DUAL 1600V Y1-CU |
7,966 |
|
Datasheet |
- | Y1-CU | Box | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 203 A | 350 A | 2 V | 150 mA | 5400A, 5800A | 150 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
MCD225-14IO1MOD THYRISTOR/DIODE 1400V Y1-CU |
14,428 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 221 A | 400 A | 2 V | 150 mA | 8000A, 8500A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
L314FMODULE SCR/DIODE 15A 480VAC PCB |
12,238 |
|
Datasheet |
L | Module | Bulk | Not For New Designs | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 2.5 V | 100 mA | 2250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Through Hole |
