SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B614F-2MOD DIODE SCR 42.5A 380V ISO QC |
15,802 |
|
Datasheet |
B-2 | Module with Isolation Barriers | Bulk | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
SCE200CA200THYRISTOR MODULE 2000V 200A |
10,010 |
|
Datasheet |
- | Module | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2 kV | 200 A | 314 A | 3 V | 100 mA | 5000A, 5500A | 180 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount | |
|

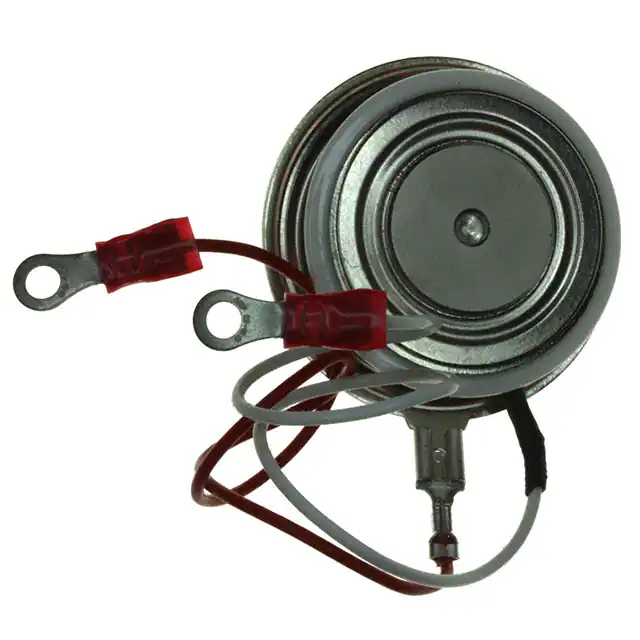

T620163004DNSCR PHASE CTRL MOD 1600V 300A |
14,646 |
|
Datasheet |
- | TO-200AB, A-PUK | Bulk | Active | Single | 1 SCR | 1.6 kV | 300 A | 470 A | 3 V | 150 mA | 5000A, 5500A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount, 8" Wire Lead |
|
MDMA210UB1600P-PCMDMA210UB1600PTED-PC |
7,204 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B612F-2T-YECMOD DIODE SCR 42.5A 240V .250"QC |
4,078 |
|
Datasheet |
B-2T | Module | Bulk | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
L412FMODULE BRIDGE RECT SLG PHASE 12A |
10,780 |
|
Datasheet |
L | Module | Bulk | Not For New Designs | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | 100 A | 22 A | 2.5 V | 100 mA | - | 100 mA | -40°C ~ 125°C (TJ) | - | - | - |
|
T420N18TOFXPSA1SCR MODULE 1800V 750A DO200AA |
5,668 |
|
Datasheet |
- | DO-200AA, A-PUK | Tray | Obsolete | Single | 1 SCR | 1.8 kV | 424 A | 750 A | 2 V | 200 mA | 7200A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Clamp On |
|
|
MCMA240UI1600PEDSCR MODULE 1.6KV 88A E2 PACK |
8,004 |
|
Datasheet |
- | E2 | Box | Active | Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode | 3 SCRs, 3 Diodes | 1.6 kV | 88 A | 200 A | 1.5 V | 95 mA | 1500A, 1620A | 200 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
MCMA240UI1600EDSCR MODULE 1.6KV 240A E2 PACK |
19,014 |
|
Datasheet |
- | E2 | Box | Active | Series Connection - SCR/Diode | 3 SCRs, 3 Diodes | 1.6 kV | 240 A | 200 A | 1.5 V | 95 mA | 1500A, 1620A | 200 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
TT280N18SOFHPSA1SCR MODULE 1800V 520A MODULE |
19,064 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 280 A | 520 A | 2 V | 150 mA | 9000A @ 50Hz | 150 mA | -40°C ~ 130°C | - | - | Chassis Mount |
|
|
T562-YDMODULE POWER |
18,274 |
|
Datasheet |
- | Module | Bulk | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MCD250-12IO1MOD THYRISTOR/DIODE 1200V Y2-DCB |
14,178 |
|
Datasheet |
- | Y2-DCB | Box | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 287 A | 450 A | 2 V | 150 mA | 9000A, 9600A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
T7H8126504DNSCR PHASE CTRL MOD 1200V 650A |
12,068 |
|
Datasheet |
- | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.2 kV | 650 A | 1020 A | 3 V | 150 mA | 8200A, 9000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
TD280N16SOFTIMHPSA1LT-BOND MODULE BG-PB50SB-1 |
13,810 |
|
- |
* | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T720105504DNSCR PHASE CTRL MOD 1000V 550A |
12,850 |
|
Datasheet |
- | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1 kV | 550 A | 850 A | 3 V | 150 mA | 9125A, 10000A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
|
|
MT150DT16L2-BPDISCRETE SEMICONDUCTOR MODULES T |
18,820 |
|
- |
- | Module | Tape & Reel (TR) | Active | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 150 A | - | 3 V | 150 mA | 1.5kA @ 50Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VHF125-12IO7RECT BRIDGE HALF 1200V PWS-E1 |
19,548 |
|
Datasheet |
- | PWS-E1 | Box | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | 89 A | 1.5 V | 100 mA | 1500A, 1600A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
TD320N16SOFTIMHPSA1LT-BOND MODULE |
5,284 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 320 A | 520 A | 2 V | 150 mA | 9500A @ 50Hz | 150 mA | 130°C (TJ) | - | - | Chassis Mount |
|
|
T7S0176504DNSCR PHASE CTRL MOD 1700V 650A |
11,778 |
|
Datasheet |
- | TO-200 Variation | Bulk | Obsolete | Single | 1 SCR | 1.7 kV | 650 A | 1020 A | 3 V | 150 mA | 8200A, 9000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC220-12IO1MOD THYRISTOR DUAL 1200V Y2-DCB |
7,036 |
|
Datasheet |
- | Y2-DCB | Box | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 250 A | 400 A | 2 V | 150 mA | 8500A, 9000A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
