Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ERA-V27J621VRES TEMP SENS 620 OHM 5% 1/16W |
4,196 |
|
Datasheet |
ERAV | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 620 Ohms | - | ±5% | 0.063W, 1/16W | 2700ppm/°C | -40°C ~ 125°C | Surface Mount |
|
WSMS2906L3000JKRES SHUNT 0.0003 OHM 5% 3W |
3,444 |
|
Datasheet |
Power Metal Strip® | Bulk | Obsolete | Shunt, Meter | Power Meters | Metal Element | 300 µOhms | - | ±5% | 3W | ±100ppm/°C | -65°C ~ 170°C | Shunt Fixture, 21mm Pitch |
|

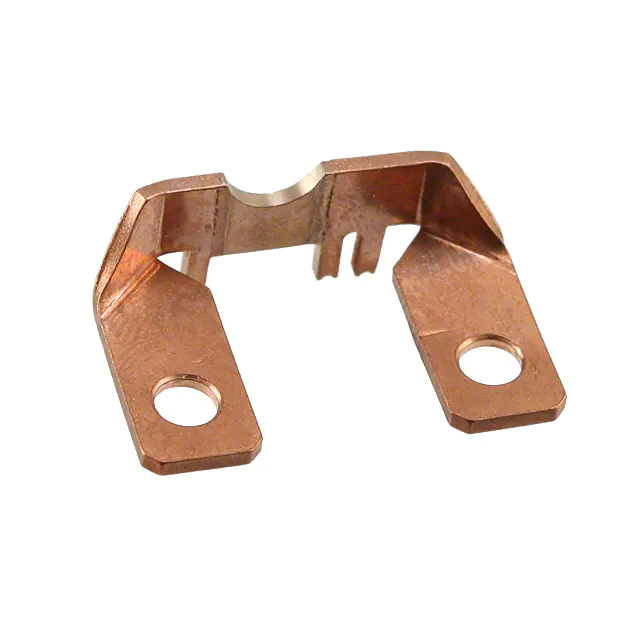

WSMS2906L4000JKRES SHUNT 0.0004 OHM 5% 3W |
2,628 |
|
Datasheet |
Power Metal Strip® | Bulk | Obsolete | Shunt, Meter | Power Meters | Metal Element | 400 µOhms | - | ±5% | 3W | ±100ppm/°C | -65°C ~ 170°C | Shunt Fixture, 21mm Pitch |
|
WSMS2906L5000JKRES SHUNT 0.0005 OHM 5% 3W |
8,814 |
|
Datasheet |
Power Metal Strip® | Bulk | Obsolete | Shunt, Meter | Power Meters | Metal Element | 500 µOhms | - | ±5% | 3W | ±75ppm/°C | -65°C ~ 170°C | Shunt Fixture, 21mm Pitch |
|

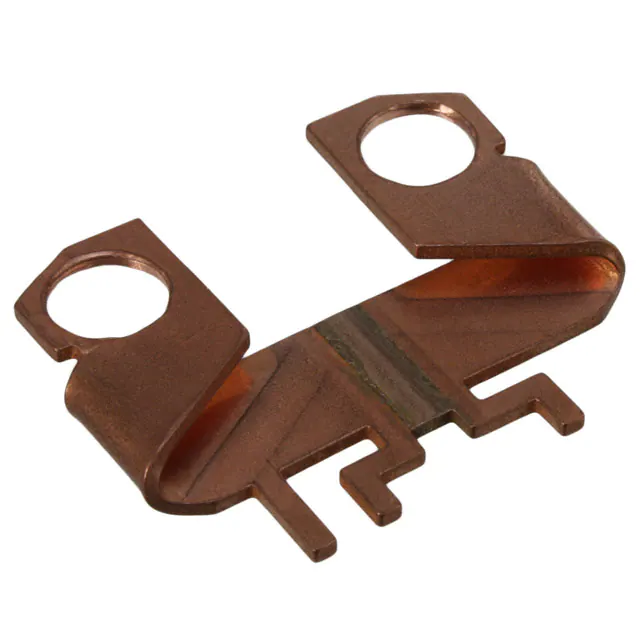

WSMS3124L1000JKRES SHUNT 0.0001 OHM 5% 3W |
2,188 |
|
Datasheet |
Power Metal Strip® | Bulk | Obsolete | Shunt, Meter | Power Meters | Metal Element | 100 µOhms | - | ±5% | 3W | ±75ppm/°C | -65°C ~ 170°C | Shunt Fixture, 20mm Pitch |
|
|
163.7010.0202RES BLADE ATO 430 OHM 1% 0.4W |
6,502 |
|
- |
FKS ATO® | Bulk | Discontinued at Digi-Key | Blade, ATO | - | Metal Element | 430 Ohms | - | ±1% | 0.4W | - | - | Holder |
|
|
163.7010.0102RES BLADE ATO 110 OHM 1% 0.4W |
7,940 |
|
- |
FKS ATO® | Bulk | Discontinued at Digi-Key | Blade, ATO | - | Metal Element | 110 Ohms | - | ±1% | 0.4W | - | - | Holder |
|
|
163.7010.0052RES BLADE ATO 62 OHM 1% 0.4W |
2,196 |
|
- |
FKS ATO® | Bulk | Discontinued at Digi-Key | Blade, ATO | - | Metal Element | 62 Ohms | - | ±1% | 0.4W | - | - | Holder |
|
|
CJS30022RKCJS300 22R 10% |
9,162 |
|
- |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
CJS55010RKCJS550 10R 10% |
5,226 |
|
Datasheet |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
IS175A5R0KERES BRAKE BLEEDER 5 OHM 10% 175W |
4,648 |
|
Datasheet |
IS | Bulk | Active | Bleeder, Braking | Heatsinkable | Thick Film | 5 Ohms | - | ±10% | 175W | ±250ppm/°C | - | Surface Mount |
|
|
IS175B10RKERES BRAKE BLEEDER 10OHM 10% 175W |
5,556 |
|
Datasheet |
IS | Bulk | Active | Bleeder, Braking | Heatsinkable | Thick Film | 10 Ohms | - | ±10% | 175W | ±250ppm/°C | - | Surface Mount |
|
DCRF381783R20JBRES WATER COOLED 3.2OHM 5% 1500W |
3,836 |
|
Datasheet |
DCRF | Bulk | Active | Water Cooled | - | Wirewound | 3.2 Ohms | - | ±5% | 1500W | 100ppm/°C | -55°C ~ 120°C | Panel Mount |
|
|
FNPZ10R00ARESISTOR SHUNT 10 OHM 0.05% 500W |
8,518 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 10 Ohms | - | ±0.05% | 500W | ±1ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPZ5R000ARESISTOR SHUNT 5 OHM 0.05% 500W |
5,076 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 5 Ohms | - | ±0.05% | 500W | ±1ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
WSMS2906L5000JERES SHUNT 0.0005 OHM |
5,834 |
|
Datasheet |
Power Metal Strip® | Bulk | Obsolete | Shunt, Meter | Power Meters | Metal Element | 500 µOhms | - | ±5% | 3W | ±75ppm/°C | -65°C ~ 170°C | Shunt Fixture, 21mm Pitch |
|
|
WSMS3124L2000JERES SHUNT 0.0002 OHM |
3,944 |
|
Datasheet |
Power Metal Strip® | Bulk | Obsolete | Shunt, Meter | Power Meters | Metal Element | 200 µOhms | - | ±5% | 3W | ±75ppm/°C | -65°C ~ 170°C | Shunt Fixture, 20mm Pitch |
|
|
IS175A60RKE175 W 60 OHMS 10% |
8,214 |
|
Datasheet |
IS | Bulk | Active | Bleeder, Braking | Heatsinkable | Thick Film | 60 Ohms | - | ±10% | 175W | ±250ppm/°C | - | Surface Mount |
|
|
IS250C50RKE250 W 50 OHMS 10% |
3,244 |
|
Datasheet |
IS | Bulk | Active | Bleeder, Braking | Heatsinkable | Thick Film | 50 Ohms | - | ±10% | 250W | ±250ppm/°C | - | Surface Mount |
|
|
IS250B24RKE250 W 24 OHMS 10% |
5,576 |
|
Datasheet |
IS | Bulk | Active | Bleeder, Braking | Heatsinkable | Thick Film | 24 Ohms | - | ±10% | 250W | ±250ppm/°C | - | Surface Mount |
