Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TV1005CB-50R0JN-96-01TRDC-18GHZ 20W 50OHM BEO CHIP TERM |
1,054 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | Surface Mount |
|

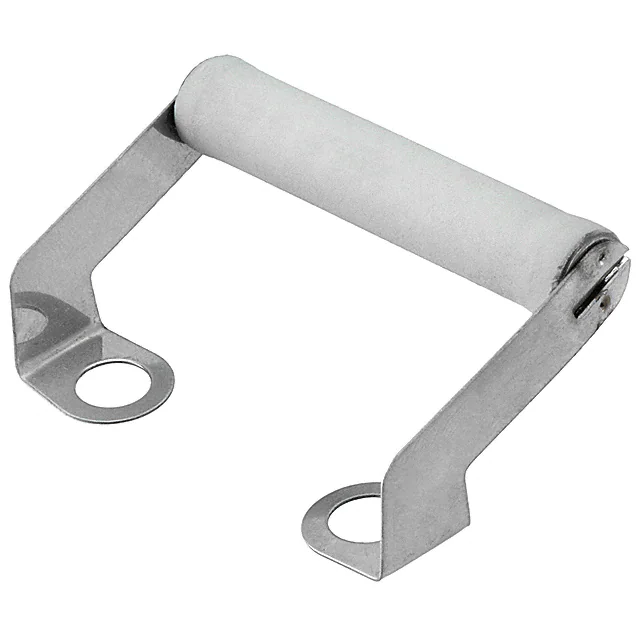

YP1047KJRES CAP BLEEDER 47K OHM 5% 10W |
2,164 |
|
Datasheet |
YP, CGS | Bulk | Active | Bleeder, Capacitor | Capacitor Discharge | Wirewound | 47 kOhms | - | ±5% | 10W | ±100ppm/°C | -55°C ~ 350°C | Capacitor, 31.8mm Pitch |
|

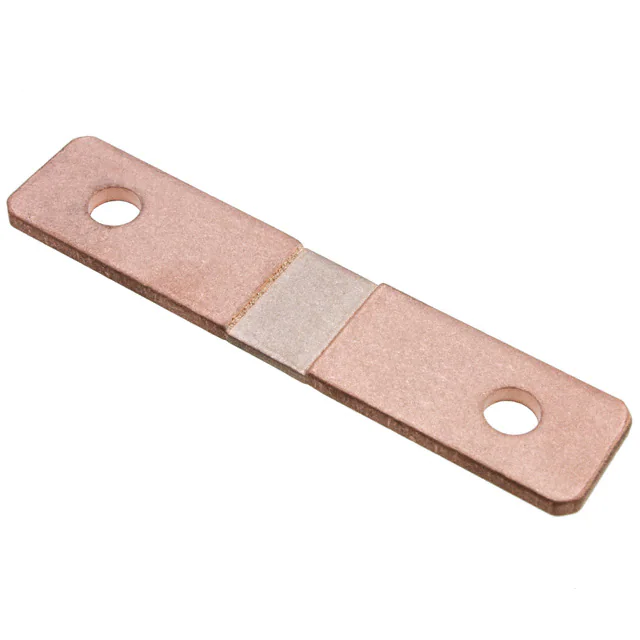

WSBS8518L1000JKRESISTOR SHUNT 100 UOHM 5% 36W |
984 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 36W | ±225ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
BAS-M-R00005-AE-5.0RESISTOR - BUS BAR SHUNT, 0.0000 |
650 |
|
Datasheet |
BAS | Tube | Active | Shunt, Battery | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 36W | ±100ppm/°C | -40°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBE8518L1000JKA2100 UOHMS 5% 36W SHUNT, BATTERY |
646 |
|
Datasheet |
WSBE | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±10ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
HPT2012-50-T1RESISTOR TERMINATOR 50 OHM 5W |
6,284 |
|
Datasheet |
HPT | Tape & Reel (TR) | Active | Terminator | - | Thin Film | - | 50 Ohms | - | 5W | - | -40°C ~ 155°C | - |
|
HPT1608-50-T1RESISTOR TERMINATOR 50 OHM 2.5W |
2,726 |
|
Datasheet |
HPT | Tape & Reel (TR) | Active | Terminator | - | Thin Film | - | 50 Ohms | - | 2.5W | - | -40°C ~ 155°C | - |
|

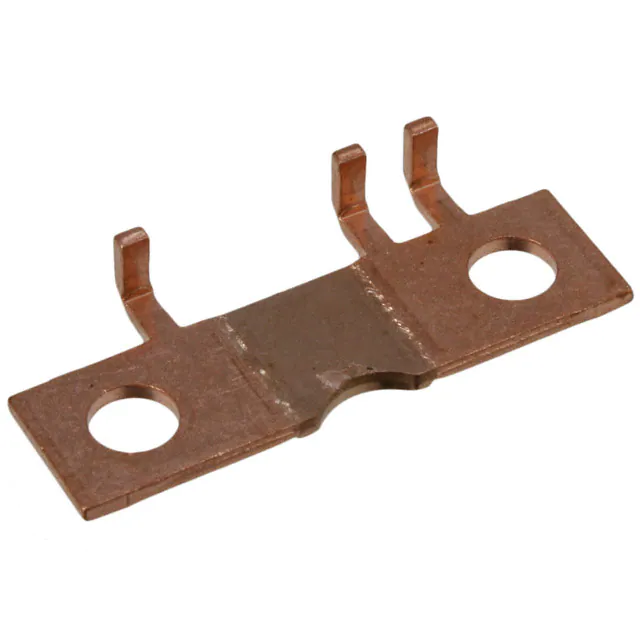

WSMS2908L5000JKRES SHUNT 0.0005 OHM 5% 3W |
568 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Meter | Power Meters | Metal Element | 500 µOhms | - | ±5% | 3W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 20mm Pitch |
|
WSMS5515L1000JKRES SHUNT 0.0001 OHM 5% 3W |
12,114 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Meter | Power Meters | Metal Element | 100 µOhms | - | ±5% | 3W | ±325ppm/°C | -65°C ~ 170°C | Shunt Fixture, 40mm Pitch |
|

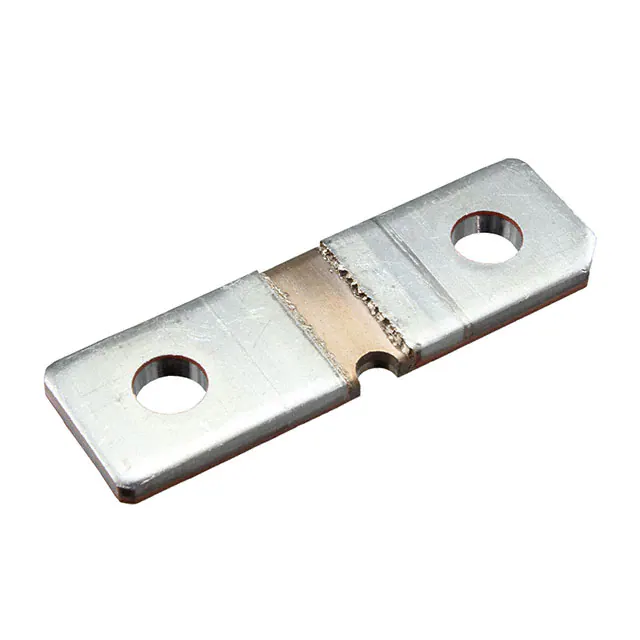

WSBS5216L1000JK14RESISTOR SHUNT 100 UOHM 5% 12W |
690 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 12W | ±150ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
SH6918F500BPEP6918 SHUNT 500A PIN |
246 |
|
Datasheet |
SHA | Box | Active | Shunt, Battery | - | - | 100 µOhms | - | ±1% | 25W | - | - | Through Hole |
|
|
SH6918F500BHEP6918 SHUNT 500A M3 |
1,268 |
|
Datasheet |
SHA | Box | Active | Shunt, Battery | - | - | 100 µOhms | - | ±1% | 25W | - | - | Through Hole |
|
|
SH6918F700APEP6918 SHUNT 700A PIN |
1,900 |
|
Datasheet |
SHA | Box | Active | Shunt, Battery | - | - | 50 µOhms | - | ±1% | 25W | - | - | Through Hole |
|
|
SH8518F600BHEP8518 SHUNT 600A M3 |
542 |
|
Datasheet |
SHA | Box | Active | Shunt, Battery | - | - | 100 µOhms | - | ±1% | 36W | - | - | Through Hole |
|
TV1005HA-50R0JN-96-01TRDC-18GHZ 20W 50OHM BEO CHIP TERM |
542 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | Surface Mount |
|
WSBS8518L0500JK14RESISTOR SHUNT 50 UOHM 5% 36W |
222 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|

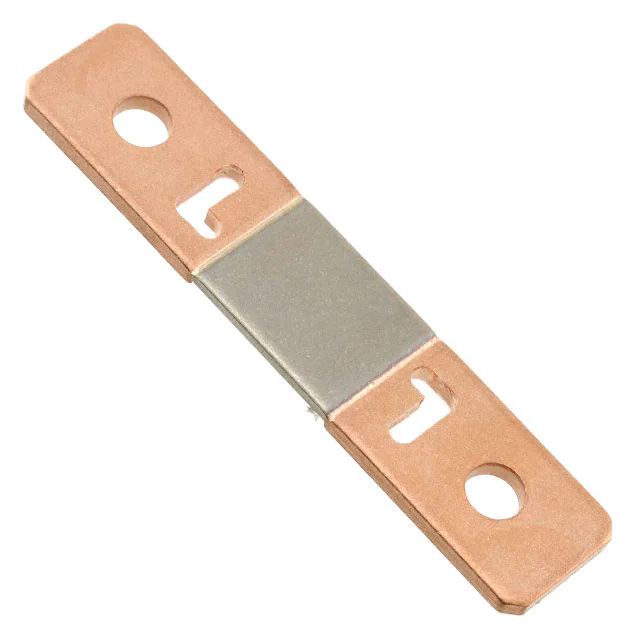

WSBS85181L000JK34RESISTOR SHUNT 0.001 OHM 5% 20W |
342 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 1 mOhms | - | ±5% | 20W | ±25ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L0500JK20RESISTOR SHUNT 50 UOHM 5% 36W |
236 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8536L0500JK1450 UOHMS 5% 50W SHUNT, BATTERY S |
202 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 50 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Surface Mount |
|
|
BAS-M-R0001-R-5.0RESISTOR - BUS BAR SHUNT, 0.0001 |
1,142 |
|
Datasheet |
BAS | Tube | Active | Shunt, Battery | - | - | 100 µOhms | - | ±5% | 36W | ±50ppm/°C | -40°C ~ 170°C | Shunt Fixture, 60mm Pitch |
