Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KABR400 100R JMETAL CLAD BRAKING RESISTOR 400W |
9,166 |
|
Datasheet |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 100 Ohms | - | ±5% | 400W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
WSMS2908L3000JKRES SHUNT 0.0003 OHM 5% 3W |
4,306 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Meter | Power Meters | Metal Element | 300 µOhms | - | ±5% | 3W | ±225ppm/°C | -65°C ~ 170°C | Shunt Fixture, 20mm Pitch |
|

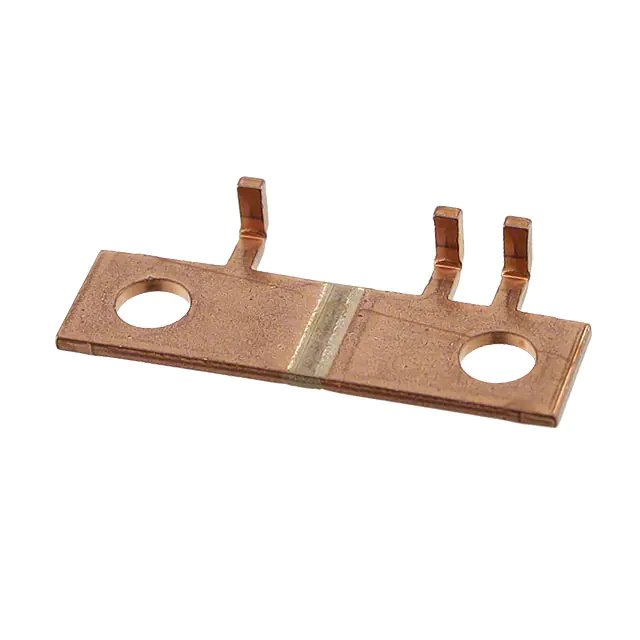

WSMS2908L1000JKRES SHUNT 0.0001 OHM 5% 3W |
7,914 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Meter | Power Meters | Metal Element | 100 µOhms | - | ±5% | 3W | ±1100ppm/°C | -65°C ~ 170°C | Shunt Fixture, 20mm Pitch |
|
WSBS5216L1000JTRESISTOR SHUNT 100 UOHM 5% 12W |
9,628 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 12W | ±150ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8536L1000JK100 UOHMS 5% 50W SHUNT, BATTERY |
5,106 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Surface Mount |
|
SH8518F600BPEP8518 SHUNT 600A PIN |
8,978 |
|
Datasheet |
SHA | Box | Active | Shunt, Battery | - | - | 100 µOhms | - | ±1% | 36W | - | - | Through Hole |
|
WSBS8518L5000JK34RESISTOR SHUNT 500 UOHM 5% 25W |
4,454 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 500 µOhms | - | ±5% | 25W | ±10ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8536L0250JK6025 UOHMS 5% 50W SHUNT, BATTERY S |
5,472 |
|
Datasheet |
WSBS8536 | Bulk | Active | Shunt, Battery | - | Metal Element | 25 µOhms | - | ±5% | 50W | ±20ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8536L1000JK60100 UOHMS 5% 50W SHUNT, BATTERY |
8,290 |
|
Datasheet |
WSBS8536 | Bulk | Active | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 50W | ±20ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L1000JK20RESISTOR SHUNT 100 UOHM 5% 36W |
200 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L2500JK20RESISTOR SHUNT 250 UOHM 5% 36W |
5,386 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 250 µOhms | - | ±5% | 36W | ±110ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L1000JK34RESISTOR SHUNT 100 UOHM 5% 36W |
7,926 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 36W | ±65ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS85181L000JT34RESISTOR SHUNT 0.001 OHM 5% 20W |
7,912 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | - | Metal Element | 1 mOhms | - | ±5% | 20W | ±25ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8536L0500JK50 UOHMS 5% 50W SHUNT, BATTERY S |
6,492 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 50 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Surface Mount |
|
|
WSBS8518L1000JT20RESISTOR SHUNT 100 UOHM 5% 36W |
9,744 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8536L0250JK2025 UOHMS 5% 50W SHUNT, BATTERY S |
5,242 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 25 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Through Hole |
|
WSBS8536L0250JK4025 UOHMS 5% 50W SHUNT, BATTERY S |
7,976 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 25 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Through Hole |
|
KABR200 100R JMETAL CLAD BRAKING RESISTOR 200W |
7,544 |
|
Datasheet |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 100 Ohms | - | ±5% | 200W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
|
WSBS8536L0250JK25 UOHMS 5% 50W SHUNT, BATTERY S |
5,470 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 25 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Surface Mount |
|
WSBS8536L1000JK80100 UOHMS 5% 50W SHUNT, BATTERY |
4,730 |
|
Datasheet |
WSBS8536 | Bulk | Active | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 50W | ±20ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
