RF Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MASW-011145-TR0500IC RF SWITCH SPDT 31GHZ 20QFN |
1,772 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Absorptive | SPDT | 27GHz ~ 31GHz | 45dB | 1.3dB | 31GHz | 37dBm | 60dBm | - | 50Ohm | 3.465V | -40°C ~ 105°C | - | - | Surface Mount | 20-QFN (3x3) |
|

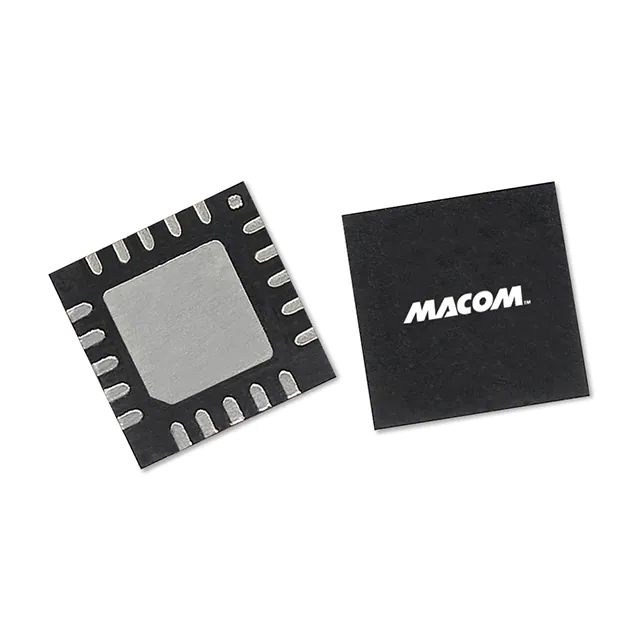

MASW-011120-TR1000IC RF SWITCH SPDT 6GHZ 20HQFN |
12,922 |
|
Datasheet |
- | 20-LQFN Exposed Pad | Tape & Reel (TR) | Active | 5G | - | SPDT | 30MHz ~ 6GHz | 44dB | - | - | - | - | - | - | 60V | - | - | - | Surface Mount | 20-HQFN (5x5) |
|
JSW4-272DR+IC RF SWITCH SP4T 2.7GHZ 14QFN |
4,300 |
|
Datasheet |
- | 14-UFQFN Exposed Pad | Tape & Reel (TR) | Active | CATV, SatCom | Reflective | SP4T | 5MHz ~ 2.7GHz | 27dB | 0.6dB | 2.7GHz | - | 59dBm | - | 50Ohm | 2.5V ~ 4.8V | -40°C ~ 85°C | - | - | Surface Mount | 14-QFN (2x2) |
|
HMC1118LP3DETRIC RF SWITCH SPDT 13GHZ 16LFCSP |
3,500 |
|
Datasheet |
- | 16-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | VSAT | Absorptive | SPDT | 9kHz ~ 13GHz | 50dB | 2dB | 3GHz, 13GHz | 37dBm | 62dBm | - | 50Ohm | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-LFCSP (3x3) |
|
|
HMC1118LP3DEIC RF SWITCH SPDT 13GHZ 16LFCSP |
3,044 |
|
Datasheet |
- | 16-VFQFN Exposed Pad, CSP | Strip | Active | VSAT | Absorptive | SPDT | 9kHz ~ 13GHz | 50dB | 2dB | 3GHz, 13GHz | 37dBm | 62dBm | - | 50Ohm | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-LFCSP (3x3) |
|
MASW-010351-TR3000IC RF SWITCH SP5T 4GHZ 24QFN |
9,854 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Absorptive | SP5T | 10MHz ~ 4GHz | 60dB | 1.9dB | 2.1GHz, 4GHz | 27dBm | 50dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | 24-PQFN (4x4) |
|
MASW-002103-13630PIC RF SWITCH SPDT 20GHZ |
11,770 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | - | - | SPDT | 5MHz ~ 20GHz | 27dB | 1.05dB | 20GHz | - | 66dBm | - | 50Ohm | - | -65°C ~ 125°C | - | - | - | - |
|
PE42850B-XIC RF SWITCH SP5T 1GHZ 32QFN |
21,788 |
|
Datasheet |
UltraCMOS®, HaRP™ | 32-VFQFN Exposed Pad | Tape & Reel (TR) | Active | - | - | SP5T | 30MHz ~ 1GHz | 30dB (min) | 0.8dB | 1GHz | - | 42dBm | - | 50Ohm | 2.3V ~ 5.5V | -40°C ~ 85°C | - | - | - | 32-QFN (5x5) |
|
ADRF5300BCCZNIC RF SWITCH SPDT 32GHZ 20LGA |
3,924 |
|
Datasheet |
- | 20-VFLGA Exposed Pad | Strip | Active | General Purpose | - | SPDT | 24GHz ~ 32GHz | 38dB | 1.1dB | 32GHz | - | 65dBm | - | 50Ohm | 3.15V ~ 3.45V | -40°C ~ 105°C | - | - | Surface Mount | 20-LGA (3x3) |
|
HMC253AQS24ETRIC RF SWITCH SP8T 2.5GHZ 24QSOP |
1,778 |
|
Datasheet |
- | 24-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | CDMA | Absorptive | SP8T | 0Hz ~ 2.5GHz | 40dB | 1dB | 1GHz | 23dBm | 46dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 24-QSOP |
|
MASW-002103-13635PIC RF SWITCH SPDT 20GHZ |
670 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | - | - | SPDT | 50MHz ~ 20GHz | 27dB | 1.05dB | 20GHz | - | 66dBm | - | 50Ohm | - | -65°C ~ 125°C | - | - | - | - |
|
MA4SW210B-1IC RF SWITCH SPDT 18GHZ DIE |
800 |
|
Datasheet |
HMIC™ | Die | Tray | Active | General Purpose | Reflective | SPDT | 2GHz ~ 18GHz | 40dB | 1.2dB | 18GHz | - | - | - | - | - | -65°C ~ 125°C | - | - | - | Die |
|

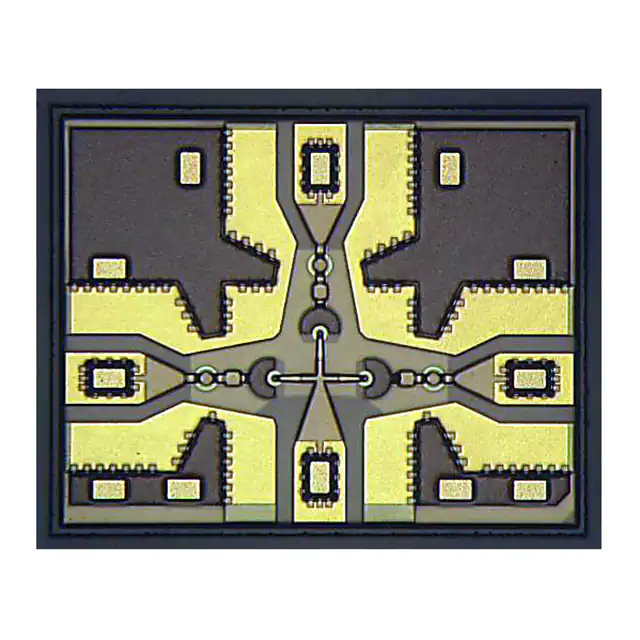

MASW-003103-13645PIC RF SWITCH SP3T 20GHZ |
3,044 |
|
Datasheet |
HMIC™ | 4-SMD Module Exposed Pad | Tape & Reel (TR) | Active | General Purpose | - | SP3T | 50MHz ~ 20GHz | 31dB | 1.2dB | 20GHz | - | - | - | 50Ohm | -10V | -65°C ~ 150°C | - | - | - | - |
|
ADRF5040BCPZ-R7IC RF SWITCH SP4T 12GHZ 24LFCSP |
4,782 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | VSAT | Absorptive | SP4T | 9kHz ~ 12GHz | 34dB | 0.8dB | 8GHz | 37dBm | 53dBm | - | 50Ohm | 3.3V | -40°C ~ 85°C | - | - | Surface Mount | 24-LFCSP (4x4) |
|
|
ADRF5040BCPZIC RF SWITCH SP4T 12GHZ 24LFCSP |
3,786 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Strip | Active | VSAT | Absorptive | SP4T | 9kHz ~ 12GHz | 34dB | 0.8dB | 8GHz | 37dBm | 53dBm | - | 50Ohm | 3.3V | -40°C ~ 85°C | - | - | Surface Mount | 24-LFCSP (4x4) |
|
MASW-011055-TR0500IC RF SWITCH SPDT 3GHZ 12HQFN |
30,404 |
|
Datasheet |
- | 12-LFQFN Exposed Pad | Tape & Reel (TR) | Active | - | Reflective | SPDT | 30MHz ~ 3GHz | 51dB | 0.35dB | 2GHz | - | 66dBm | - | - | 5V | -40°C ~ 85°C | - | - | Surface Mount | 12-HQFN (5x5) |
|
|
MASW-008322-TR1000IC RF SWITCH SPDT 20GHZ 24QFN |
6,186 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Reflective | SPDT | 0Hz ~ 20GHz | 40dB | 1.9dB | 20GHz | 30dBm | 48dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | 24-PQFN (4x4) |
|
|
PE42522C-XIC RF SWITCH SPDT 26.5GHZ 29LGA |
484 |
|
Datasheet |
- | 29-TFLGA Exposed Pad | Tape & Reel (TR) | Active | - | - | SPDT | 9kHz ~ 26.5GHz | 22dB | - | 2.5GHz,- | - | 59dBm | - | 50Ohm | 2.3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 29-LGA (4x4) |
|
MASW-011105-TR0500IC RF SWITCH SPDT 31GHZ 14QFN |
1,196 |
|
Datasheet |
- | 14-VFQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Reflective | SPDT | 17.7GHz ~ 31GHz | 30dB | 1.6dB | 31GHz | - | 43dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 14-PQFN (3x3) |
|
HMC345ALP3ETRIC RF SWITCH SP4T 8GHZ 16QFN |
3,148 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | - | SP4T | 0Hz ~ 8GHz | 33dB | 2.4dB | 8GHz | 28dBm | 43dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
