RF Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMC245AQS16ETRIC RF SWITCH SP3T 3.5GHZ 16QSOP |
666 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | CATV | Absorptive | SP3T | 0Hz ~ 3.5GHz | 36dB | 0.8dB | 2.5GHz | 29dBm | 48dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QSOP |
|
|
HMC245AQS16EIC RF SWITCH SP3T 3.5GHZ 16QSOP |
366 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Bulk | Active | CATV | Absorptive | SP3T | 0Hz ~ 3.5GHz | 36dB | 0.8dB | 2.5GHz | 29dBm | 48dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QSOP |
|
HMC849ALP4CETRIC RF SWITCH SPDT 6GHZ 16QFN |
1,994 |
|
Datasheet |
- | 16-VQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | - | SPDT | 0Hz ~ 6GHz | 56dB | 1dB | 4GHz | 33dBm | 52dBm | - | 50Ohm | 3V ~ 5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (4x4) |
|
|
HMC849ALP4CEIC RF SWITCH SPDT 6GHZ 16QFN |
576 |
|
Datasheet |
- | 16-VQFN Exposed Pad | Strip | Active | General Purpose | - | SPDT | 0Hz ~ 6GHz | 56dB | 1dB | 4GHz | 33dBm | 52dBm | - | 50Ohm | 3V ~ 5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (4x4) |
|
MASW-007587-TR3000IC RF SWITCH DPDT 4GHZ 12QFN |
13,344 |
|
Datasheet |
- | 12-VFQFN Exposed Pad | Tape & Reel (TR) | Active | WiMax, WLAN | Reflective | DPDT | 0Hz ~ 4GHz | 32dB | 1.2dB | 4GHz | 41dBm | - | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | 12-PQFN (3x3) |
|
MSWA-2-20+IC RF SWITCH SPDT 2GHZ |
1,240 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Cellular, PCN | Absorptive | SPDT | 0Hz ~ 2GHz | 30dB | 1.2dB | 2GHz | 29dBm | - | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | - |
|
HMC8038LP4CETRIC RF SWITCH SPDT 6GHZ 16LFCSP |
7,808 |
|
Datasheet |
- | 16-VQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Cellular | Absorptive | SPDT | 100MHz ~ 6GHz | 60dB | 0.8dB | 100MHz, 6GHz | 36dBm | 60dBm | - | 50Ohm | 3.3V ~ 5V | -40°C ~ 105°C | - | - | Surface Mount | 16-LFCSP (4x4) |
|
|
HMC8038LP4CEIC RF SWITCH SPDT 6GHZ 16LFCSP |
678 |
|
Datasheet |
- | 16-VQFN Exposed Pad, CSP | Strip | Active | Cellular | Absorptive | SPDT | 100MHz ~ 6GHz | 60dB | 0.8dB | 100MHz, 6GHz | 36dBm | 60dBm | - | 50Ohm | 3.3V ~ 5V | -40°C ~ 105°C | - | - | Surface Mount | 16-LFCSP (4x4) |
|
PE42553B-ZIC RF SWITCH SPDT 8GHZ 16QFN |
15,792 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | - | - | SPDT | 9kHz ~ 8GHz | 45dB | 0.85dB | 3GHz | - | 66dBm | - | 50Ohm | 2.3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
HMC241ALP3ETRIC RF SWITCH SP4T 4GHZ 16QFN |
2,280 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | WiMax, WLAN | Absorptive | SP4T | 100MHz ~ 4GHz | 32dB | 1.2dB | 4GHz | - | 47dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
MASW-008543-TR3000IC RF SWITCH SPDT 4GHZ 8MSOP |
7,334 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Absorptive | SPDT | 10MHz ~ 4GHz | 65dB | 0.7dB | 2GHz | 25dBm | - | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | 8-MSOP-EP |
|
|
HMC7992LP3DETRIC RF SWITCH SP4T 6GHZ 16LFCSP |
3,142 |
|
Datasheet |
- | 16-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Cellular | Absorptive | SP4T | 100MHz ~ 6GHz | 30dB | 1dB | 6GHz | 35dBm | 58dBm | - | 50Ohm | 3.3V ~ 5V | -40°C ~ 105°C | - | - | Surface Mount | 16-LFCSP (3x3) |
|
|
HMC7992LP3DEIC RF SWITCH SP4T 6GHZ 16LFCSP |
1,940 |
|
Datasheet |
- | 16-VFQFN Exposed Pad, CSP | Strip | Active | Cellular | Absorptive | SP4T | 100MHz ~ 6GHz | 30dB | 1dB | 6GHz | 35dBm | 58dBm | - | 50Ohm | 3.3V ~ 5V | -40°C ~ 105°C | - | - | Surface Mount | 16-LFCSP (3x3) |
|
|
HMC241ALP3EIC RF SWITCH SP4T 4GHZ 16QFN |
1,352 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Strip | Active | WiMAX / WiBro | Absorptive | SP4T | 100MHz ~ 4GHz | 32dB | 1.2dB | 4GHz | 29dBm | 47dBm | - | 50Ohm | 5V | - | - | - | Surface Mount | 16-QFN (3x3) |
|

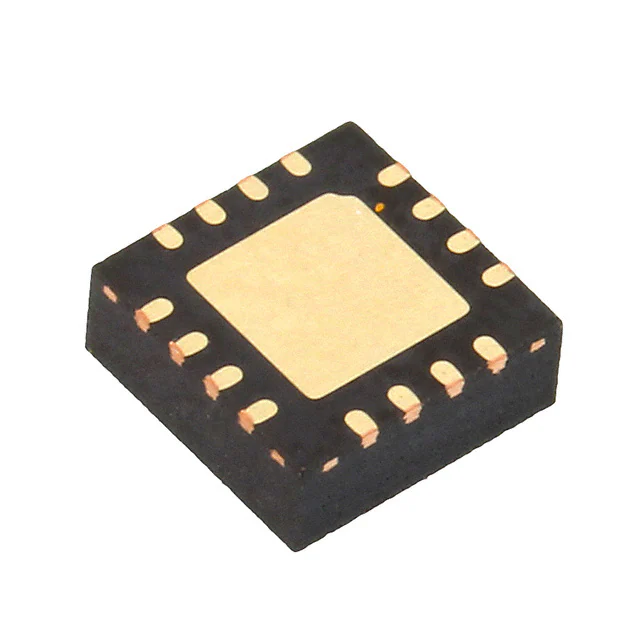

MASW-000936-14000TIC RF SWITCH SPDT 6GHZ 16QFN |
7,796 |
|
Datasheet |
- | 16-LQFN Exposed Pad | Tape & Reel (TR) | Active | WiFi, WiMAX | Reflective | SPDT | 50MHz ~ 6GHz | 50dB | 0.2dB | 2.7GHz | - | 72dBm | - | - | ±15V, 28V | -40°C ~ 85°C | - | - | - | 16-PQFN (4x4) |
|
HMC241AQS16EIC RF SWITCH SP4T 3.5GHZ 16QSOP |
3,342 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Strip | Active | CATV | Absorptive | SP4T | 0Hz ~ 3.5GHz | 36dB | 0.8dB | 2.5GHz | 29dBm | 48dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QSOP |
|
HMC784AMS8GETRIC RF SWITCH SPDT 4GHZ 8MSOP |
250 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | WiMAX / WiBro | Reflective | SPDT | - | - | - | - | 41dBm | 60dBm (typ) | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
MA4SW310IC RF SWITCH SP3T 20GHZ DIE |
1,700 |
|
Datasheet |
HMIC™ | Die | Bulk | Active | General Purpose | Reflective | SP3T | 50MHz ~ 20GHz | 42dB | 0.9dB | 20GHz | - | - | - | - | - | -65°C ~ 125°C | - | - | - | Die |
|
ADRF5019BCPZN-R7IC RF SWITCH SPDT 13GHZ 16LFCSP |
1,470 |
|
Datasheet |
- | 16-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | VSAT | Absorptive | SPDT | 100MHz ~ 13GHz | 25dB | 1.5dB | 13GHz | 39dBm | 60dBm | - | 50Ohm | 3V ~ 3.6V | -40°C ~ 105°C | - | - | Surface Mount | 16-LFCSP (3x3) |
|
|
ADRF5019BCPZNIC RF SWITCH SPDT 13GHZ 16LFCSP |
6,604 |
|
Datasheet |
- | 16-VFQFN Exposed Pad, CSP | Strip | Active | VSAT | Absorptive | SPDT | 100MHz ~ 13GHz | 25dB | 1.5dB | 13GHz | 39dBm | 60dBm | - | 50Ohm | 3V ~ 3.6V | -40°C ~ 105°C | - | - | Surface Mount | 16-LFCSP (3x3) |
