Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CAT6221-PFTD-GT3IC REG LDO .3A 3.0/1.5V TSOT23-6 |
6,000 |
|
- |
- | SOT-23-6 Thin, TSOT-23-6 | Bulk | Obsolete | Positive | Fixed | 2 | 5.5V | 3V, 1.5V | - | 0.35V @ 300mA | 300mA | 100 µA | 160 µA | 60dB ~ 45dB (1kHz ~ 20kHz) | Enable | - | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-6 |
|
BH30SA3WGUT-E2IC REG LINEAR 3V 150MA VCSP60N1 |
5,998 |
|
- |
* | - | Tape & Reel (TR) | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NCP4623HSN120T1GIC REG LINEAR 12V 150MA SOT23-5 |
4,380 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 24V | 12V | - | 0.5V @ 20mA | 150mA | 10 µA | - | 35dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
LDK130C15RIC REG LINEAR 1.5 300MA SOT323-5 |
5,422 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.4V @ 300mA | 300mA | 60 µA | 120 µA | 55dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-323-5 |
|
|
LDK130C10RIC REG LINEAR 1V 300MA SOT323-5 |
5,378 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | 0.4V @ 300mA | 300mA | 60 µA | 120 µA | 55dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-323-5 |
|
78M05AIC REG LINEAR 5V 500MA DPAK |
4,998 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Cut Tape (CT) | Active | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 350mA | 1A | 6 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -20°C ~ 85°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
NCV8177BMX330TCGIC REG LINEAR 3.3V 500MA 4XDFN |
9,984 |
|
Datasheet |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.19V @ 500mA | 500mA | 90 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 4-XDFN (1x1) |
|
LP2966IMM-1828IC REG LINEAR FIXED LDO REG |
3,510 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Active | Positive | Fixed | 2 | 7V | 1.8V, 2.8V | - | 0.27V @ 150mA | 150mA | 300 µA | 600 µA | 60dB ~ 40dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|

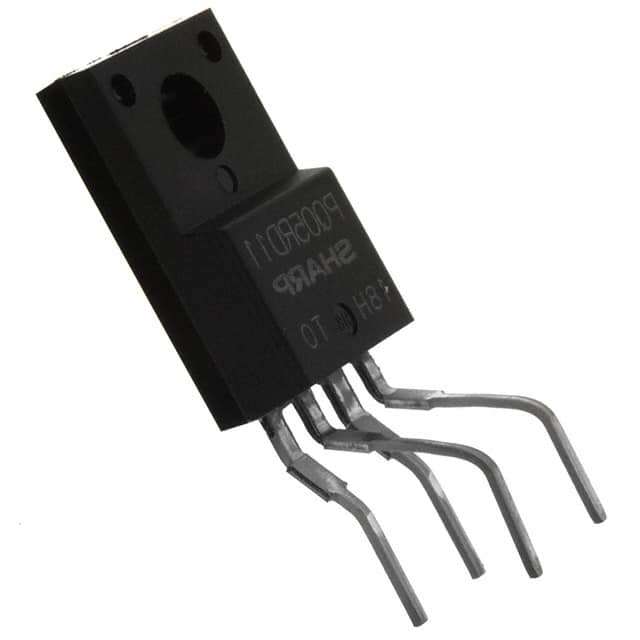

PQ05RD1BJ00HIC REG LINEAR 5V 1A TO220 |
3,124 |
|
Datasheet |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
78M0880DB@(120HZ) 2V@(500MA) FIXED 8V |
2,968 |
|
Datasheet |
78Mxx | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Cut Tape (CT) | Active | Positive | Fixed | 1 | 35V | 8V | - | 2V @ 500mA | 1A | 6 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -20°C ~ 85°C | - | - | Surface Mount | TO-252 (DPAK) |
|
TCR2EN31,LFIC REG LINEAR 3.1V 200MA 4SDFN |
2,634 |
|
- |
TCR2EN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.1V | - | 0.18V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
.JPG)
|
UA7805CKCIC REG LINEAR 5V 1.5A TO220-3 |
2,778 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 25V | 5V | - | 2V @ 1A | 1.5A | - | - | 78dB ~ 68dB (120Hz) | - | Over Temperature, Reverse Polarity | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
FAN2560UC13XIC REG LINEAR 1.3V 350MA 5WLCSP |
228,008 |
|
Datasheet |
- | 5-UFBGA, WLCSP | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 1.3V | - | 0.2V @ 350mA | 350mA | 11 µA | 70 µA | 50dB ~ 60dB (10Hz ~ 10kHz) | Enable | Over Temperature, Short Circuit, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 5-WLCSP (0.96x1.33) |
|
|
UA7815CKCIC POS VOLT REG 15V 1.5A TO220-3 |
162,074 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 30V | 15V | - | 2V @ 1A | 1.5A | - | - | 78dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
TL780-05CKCIC REG LINEAR 5V 1.5A TO220-3 |
5,944 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 25V | 5V | - | 2V @ 1A | 1.5A | - | - | 85dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
UA7808CKCIC REG LINEAR 8V 1.5A TO220-3 |
3,384 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 25V | 8V | - | 2V @ 1A | 1.5A | - | - | 72dB ~ 62dB (120Hz) | - | Over Temperature, Reverse Polarity | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
RC1117D33XIC REG LINEAR FIXED LDO REG |
90,000 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | Positive | Fixed | 1 | 7.5V | 3.3V | - | 1.2V @ 1A | 1A | 13 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
.jpg)
|
LM317KTERIC REG LIN POS ADJ 1.5A 3PWRFLEX |
5,090 |
|
Datasheet |
- | TO-252-4, DPAK (3 Leads + Tab) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 40V | 1.25V | 37V | - | 1.5A | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | 3-PowerFLEX™ |
|
NCV8702MX30TCGIC REG LINEAR 3V 200MA 6XDFN |
5,302 |
|
Datasheet |
- | 6-XFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.2V @ 200mA | 200mA | 16 µA | - | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-XDFN (1.5x1.5) |
|
MC7806BTGIC REG LINEAR 6V 1A TO220AB |
9,240 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 6V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 65dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
