Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC37101-1.65BMIC REG LINEAR 1.65V 1A 8SOIC |
9,952 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 6V | 1.65V | - | 0.5V @ 1A | 1A | - | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|

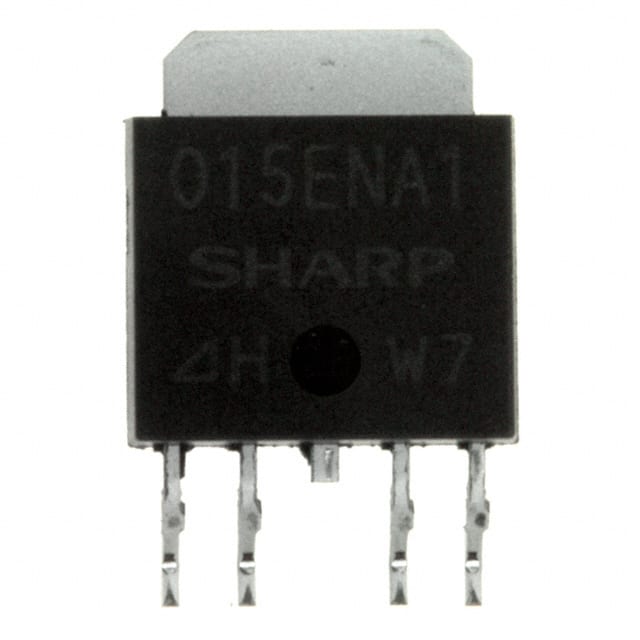

PQ015ENA1ZPHIC REG LINEAR 1.5V 1A SC63 |
8,942 |
|
Datasheet |
* | - | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TCR3DM25,LF(SELDO REG IOUT: 300MA VIN: 6V VOUT |
7,748 |
|
Datasheet |
- | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.29V @ 300mA | 300mA | - | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-DFN (1x1) |
|
TCR3UM09A,LF(SELDO REG IOUT: 300MA VIN: 6V VOUT |
7,250 |
|
Datasheet |
- | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 0.9V | - | 1.157V @ 300mA | 300mA | 580 nA | - | - | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-DFN (1x1) |
|
MC7808ABD2TR4GIC REG LINEAR 8V 1A D2PAK |
6,776 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 35V | 8V | - | 2V @ 1A (Typ) | 1A | 6 mA | - | 62dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
|
MC7808ABD2TGIC REG LINEAR 8V 1A D2PAK |
3,520 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Obsolete | Positive | Fixed | 1 | 35V | 8V | - | 2V @ 1A (Typ) | 1A | 6 mA | - | 62dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
|
TCR3DM18,RF(SELDO REG IOUT: 300MA VIN: 6V VOUT |
5,350 |
|
Datasheet |
- | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.38V @ 300mA | 300mA | - | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-DFN (1x1) |
|
TLF2931G V50IC REG LINEAR FIXED LDO REG |
5,000 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Fixed | 1 | 28V | 5V | - | 0.6V @ 100mA | 100mA | 1 mA | 15 mA | 80dB (120Hz) | - | Mirror-Image Insertion, Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
MCP1711T-22I/5XIC REG LINEAR 2.2V 150MA 4UQFN |
4,638 |
|
Datasheet |
- | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.2V | - | 1.05V @ 150mA | 150mA | 1.27 µA | 1.8 µA | - | Enable | - | -40°C ~ 85°C | - | - | Surface Mount | 4-UQFN (1x1) |
|
MCP1812AT-012/OTIC REG LINEAR 1.2V 300MA SOT23-5 |
4,498 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.6V @ 300mA | 300mA | 0.5 µA | 220 µA | 50dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
PQ6RD083J00HIC REG LINEAR 6.3V 800MA TO220-4 |
3,716 |
|
Datasheet |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RT9078-12GQZIC REG LINEAR 1.2V 300MA 4ZQFN |
3,440 |
|
Datasheet |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.57V @ 300mA | 300mA | 4 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-ZQFN (1x1) |
|
PQ025ENA1ZPHIC REG LINEAR 2.5V 1A SC63 |
3,214 |
|
Datasheet |
* | - | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

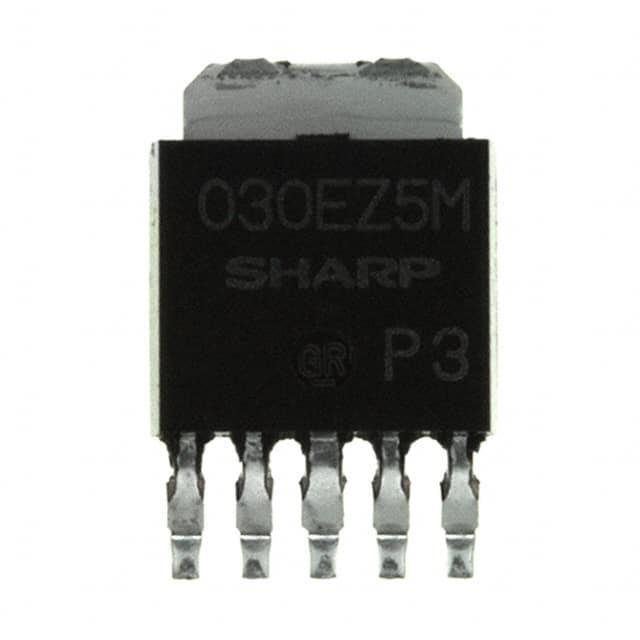

PQ030EZ5MZZIC REG LINEAR 3V 500MA SC63 |
3,122 |
|
Datasheet |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LP2980AIM5X-3.0IC REG LINEAR FIXED POS LDO 3V |
3,000 |
|
Datasheet |
- | SC-74A, SOT-753 | Bulk | Active | Positive | Fixed | 1 | 16V | 3V | - | 0.22V @ 50mA | 50mA | 95 µA | 1.2 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
AP7381-33Y-13IC REG LINEAR 3.3V 150MA SOT89 |
2,362 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 40V | 3.3V | - | 1V @ 100mA | 150mA | 2.5 µA | 25 µA | - | - | Current Limit, Thermal Shutdown | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
CS5205A-1GDP3IC REG LINEAR ADJ LDO REGULATOR |
2,200 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Bulk | Active | Positive | Adjustable | 1 | 17V | 1.25V | 13V | 1.25V @ 5A | 5A | 6 mA | - | 82dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Surface Mount | D2PAK-3 |
|
LM7905TIC REG LINEAR -5V 1A TO220FP-3 |
6,468 |
|
Datasheet |
- | TO-220-3 | Tube | Active | Negative | Fixed | 1 | -25V | -5V | - | 1.6V @ 1A | 1.5A | 2 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3L |
|
MC78M08ACDTIC REG LINEAR 8V 500MA DPAK |
3,274 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 8V | - | - | 500mA | - | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
NCP7905CTGIC REG LINEAR 5V 1A TO220AB |
3,812 |
|
- |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 25V | 5V | - | - | 1A | - | - | - | - | - | 0°C ~ 125°C | - | - | Through Hole | TO-220AB |
