Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TND027SW-TL-2HIC PWR DRIVER N-CHAN 1:2 8SOIC |
3,030 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 2 | 1:2 | Low Side | N-Channel | On/Off | 40V (Max) | Not Required | 1.5A | 300mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
AAT4610BIGV-T1IC PWR SWITCH P-CHAN 1:1 SOT23-5 |
9,520 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.4V ~ 5.5V | Not Required | 1.2A | 145mOhm | Non-Inverting | - | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
MIC2033-05BYM6-T5IC PWR SWITCH P-CHAN 1:1 SOT23-6 |
4,512 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 500mA | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
|
MIC2039AYM6-T5IC PWR SWITCH P-CHAN 1:1 SOT23-6 |
8,000 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 2.5A | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
MIC94300YMT-T5IC PWR SWITCH N-CHAN 1:1 4TMLF |
8,466 |
|
Datasheet |
4-UFDFN Exposed Pad, 4-TMLF® | Ripple Blocker™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.8V ~ 3.6V | Not Required | 200mA | - | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-TMLF® (1.2x1.6) |
|
MAX14713EWL+TCKAIC PWR DRIVER 1:2 15WLP |
8,332 |
|
Datasheet |
15-WFBGA, WLBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 2:1 | High Side | - | On/Off | - | 1.6V ~ 5.5V | 6A | 11mOhm | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 15-WLP (1.22x2.05) |
|

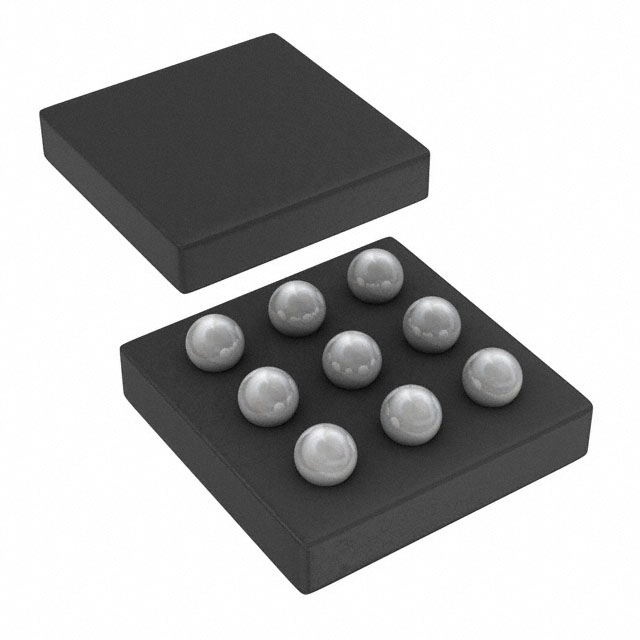

NX5P2190UKZIC PWR SWITCH N-CHAN 1:1 9WLCSP |
6,262 |
|
Datasheet |
9-UFBGA, WLCSP | NX5 | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 2A | 60mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 9-WLCSP (1.36x1.36) |
|
MC08XS6421EKIC PWR SWITCH N-CHAN 1:1 32HSOP |
4,312 |
|
- |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tray | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A, 11A | 8mOhm, 21mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 32-HSOP |
|
|
MC17XS6400EKIC PWR SWITCH N-CHAN 1:1 32HSOP |
8,776 |
|
- |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A | 17mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 32-HSOP |
|
AUIR33402SIC PWR SWITCH N-CHAN 1:1 D2PAK |
4,946 |
|
Datasheet |
TO-263-7, D2PAK (6 Leads + Tab), TO-263CB | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 18V | Not Required | 33A | 3mOhm | - | - | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | D2PAK (7-Lead) |
|
AUIR33402STRLIC PWR SWITCH N-CHAN 1:1 D2PAK |
4,402 |
|
Datasheet |
TO-263-7, D2PAK (6 Leads + Tab), TO-263CB | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 18V | Not Required | 33A | 3mOhm | - | - | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | D2PAK (7-Lead) |
|
|
MC17XS6400EKR2IC PWR SWITCH N-CHAN 1:1 32HSOP |
5,174 |
|
- |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A | 17mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 32-HSOP |
|

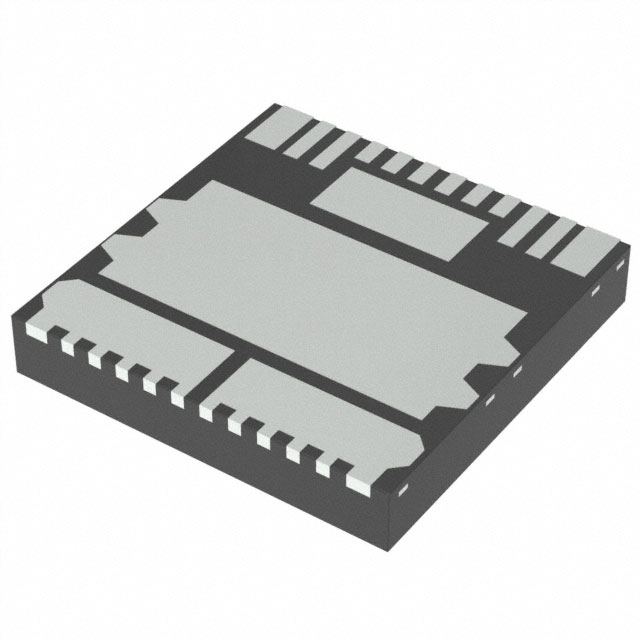

MC34982CHFKIC PWR SWITCH N-CHAN 1:1 16QFN |
2,662 |
|
Datasheet |
16-PowerQFN | - | Tray | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | SPI | 6V ~ 27V | 4.5V ~ 5.5V | 60A | 2mOhm (Max) | - | Slew Rate Controlled, Status Flag, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-HQFN (12x12) |
|
|
MC34982CHFKR2IC PWR SWITCH N-CHAN 1:1 16QFN |
3,788 |
|
Datasheet |
16-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | SPI | 6V ~ 27V | 4.5V ~ 5.5V | 60A | 2mOhm (Max) | - | Slew Rate Controlled, Status Flag, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-HQFN (12x12) |
|
|
MC40XS6500EKIC PWR SWITCH N-CHAN 1:1 32HSOP |
8,954 |
|
- |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Obsolete | General Purpose | 5 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 3.2A | 40mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 32-HSOP |
|
|
MC40XS6500EKR2IC PWR SWITCH N-CHAN 1:1 32HSOP |
7,410 |
|
- |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 5 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 3.2A | 40mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 32-HSOP |
|
AOZ1331DIIC PWR SWITCH N-CHAN 1:1 14DFN |
8,186 |
|
Datasheet |
14-WFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 0.8V ~ 5.5V | Not Required | 6A | 20mOhm | - | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-DFN (3x2) |
|

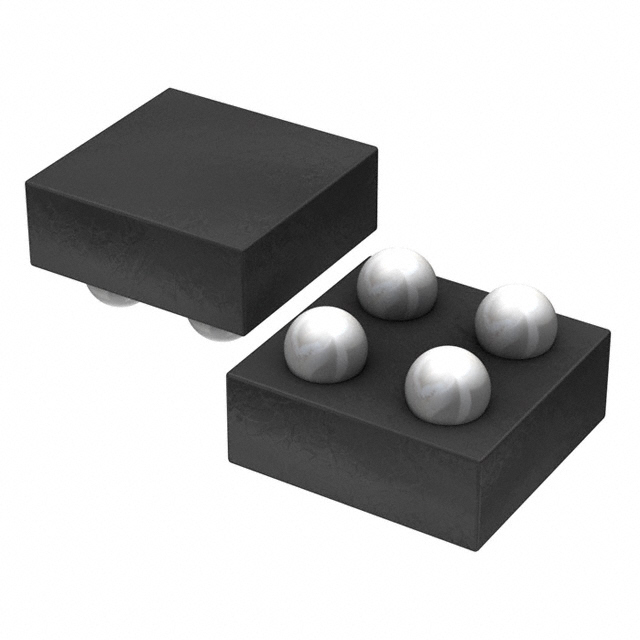

SC704CSTRTIC PWR SWITCH N-CHAN 1:1 4CSP |
8,704 |
|
Datasheet |
4-WFBGA, CSPBGA | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.1V ~ 3.6V | Not Required | 500mA | 64mOhm | - | Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-CSP (0.76x0.76) |
|
|
SC724CSTRTIC PWR SWITCH N-CHAN 1:1 4CSP |
8,966 |
|
Datasheet |
4-WFBGA, CSPBGA | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.1V ~ 3.6V | Not Required | 2A | 24mOhm | - | Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-CSP (0.76x0.76) |
|
|
SC728CSTRTIC PWR SWITCH N-CHAN 1:1 4CSP |
8,718 |
|
Datasheet |
4-WFBGA, CSPBGA | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.1V ~ 3.6V | Not Required | 2A | 24mOhm | - | Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-CSP (0.76x0.76) |
