Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABP2820AMMTR-G1IC PWR SWITCH N-CHAN 1:1 8MSOP |
4,350 |
|
- |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 60mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ABP2820CMMTR-G1IC PWR SWITCH N-CHAN 1:1 8MSOP |
5,492 |
|
- |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 60mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ABP2820GMMTR-G1IC PWR SWITCH N-CHAN 1:1 8MSOP |
4,410 |
|
- |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2.5A | 60mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
FDZ8040LIC PWR SWITCH P-CHAN 1:1 4WLCSP |
3,576 |
|
Datasheet |
4-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 0.8V ~ 4V | Not Required | 1.2A | - | Non-Inverting | Load Discharge | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-WLCSP (0.8x0.8) |
|

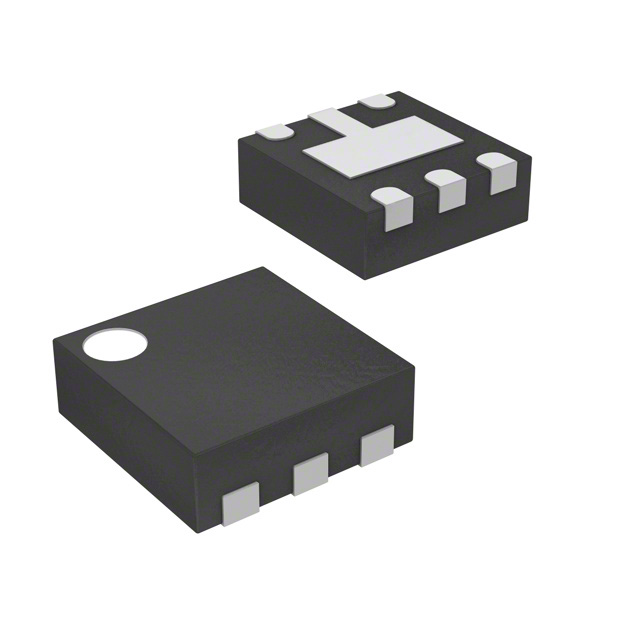

SIP4282ADVP2-T1GE3IC PWR SWITCH P-CHAN 1:1 PWRPAK |
2,650 |
|
Datasheet |
PowerPAK® SC-75-6L | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.5V ~ 5.5V | Not Required | 1.4A | 350mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PowerPAK® SC-75-6L |
|
SIP4612BDVP-T1-E3IC PWR SWITCH P-CHAN 1:1 SC75-6 |
8,522 |
|
Datasheet |
PowerPAK® TSC-75-6 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.4V ~ 5.5V | Not Required | 1A | 150mOhm | Non-Inverting | - | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | PowerPAK® TSC75-6 |
|
VN7010AJTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO16 |
8,666 |
|
Datasheet |
16-PowerLFSOP (0.154", 3.90mm Width) | VIPower™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 65A | 10mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-16 |
|
|
VN7020AJTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO16 |
7,758 |
|
Datasheet |
16-PowerLFSOP (0.154", 3.90mm Width) | VIPower™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 45A | 20mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-16 |
|
|
VN7040AJTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO16 |
2,798 |
|
Datasheet |
16-PowerLFSOP (0.154", 3.90mm Width) | VIPower™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 24A | 40mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-16 |
|
VN7040ASTR-EIC PWR DRIVER N-CHANNEL 1:1 8SO |
4,714 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | VIPower™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 24A | 40mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
VN7140AJTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO16 |
5,176 |
|
Datasheet |
16-PowerLFSOP (0.154", 3.90mm Width) | VIPower™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 8A | 140mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-16 |
|
|
VN7140ASTR-EIC PWR DRIVER N-CHANNEL 1:1 8SO |
9,742 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | VIPower™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 8A | 140mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
VND7020AJTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO16 |
7,184 |
|
Datasheet |
16-PowerLFSOP (0.154", 3.90mm Width) | VIPower™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 45A | 22mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-16 |
|
|
VND7030AJTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO16 |
4,696 |
|
Datasheet |
16-PowerLFSOP (0.154", 3.90mm Width) | VIPower™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 40A | 31mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-16 |
|
|
VND7040AJTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO16 |
7,930 |
|
Datasheet |
16-PowerLFSOP (0.154", 3.90mm Width) | VIPower™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 24A | 40mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-16 |
|
|
VND7050AJTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO16 |
7,562 |
|
Datasheet |
16-PowerLFSOP (0.154", 3.90mm Width) | VIPower™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 21A | 50mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-16 |
|
AP2822GKBTR-G1IC PWR SWITCH N-CHAN 1:1 SOT23-5 |
4,024 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 85mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
MC06XS4200BFKR2IC PWR SWITCH N-CHAN 1:1 23PQFN |
3,434 |
|
Datasheet |
23-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 9A | 6mOhm (Max) | - | Internal PWM, Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC10XS3535JHFKR2IC PWR SWITCH N-CHAN 1:6 24PQFN |
3,098 |
|
- |
24-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 6 | 1:6 | High Side | N-Channel | SPI | 7V ~ 20V | 3V ~ 5.5V | - | 10mOhm (Max), 35mOhm (Max) | - | Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 24-PQFN (12x12) |
|
|
MC10XS4200BAFKR2IC PWR SWITCH N-CHAN 1:1 23PQFN |
3,190 |
|
Datasheet |
23-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
