Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1SC0450V2A0-65IC GATE DRVR HI/LOW SIDE MODULE |
4,442 |
|
Datasheet |
SCALE™-2 | Module | Tray | Not For New Designs | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 6500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
1SP0635V2M1-5SNA1200E330100IC GATE DRVR HI/LOW SIDE MODULE |
7,020 |
|
- |
SCALE™-2 | Module | Box | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | - | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
|
1SP0635V2M1-5SNA1500E330300IC GATE DRVR HI/LOW SIDE MODULE |
3,770 |
|
- |
SCALE™-2 | Module | Box | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | - | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
|
1SP0635V2M1-CM1200HC-66HIC GATE DRVR HI/LOW SIDE MODULE |
3,788 |
|
- |
SCALE™-2 | Module | Box | Active | Not Verified | High-Side or Low-Side | - | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | - | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
|
VLA553-01RIC GATE DRVR HALF-BRIDGE OCTAPAK |
5,638 |
|
Datasheet |
- | Module | Bulk | Discontinued at Digi-Key | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.2V ~ 15.8V | - | 24A, 24A | Non-Inverting | - | - | -25°C ~ 70°C (TA) | - | - | Chassis Mount | OctaPAK 7+1 |
|
|
VLA553-02RIC GATE DRVR HALF-BRIDGE MODULE |
6,824 |
|
Datasheet |
- | Module | Bulk | Discontinued at Digi-Key | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.2V ~ 15.8V | - | 24A, 24A | Non-Inverting | - | - | -25°C ~ 70°C (TA) | - | - | Chassis Mount | Module |
|

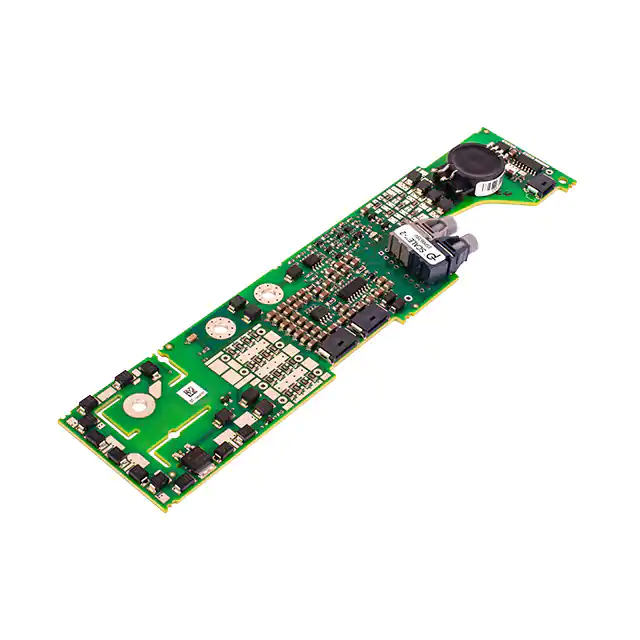

1SP0335V2M1-33IC GATE DRVR HI/LOW SIDE MODULE |
7,210 |
|
Datasheet |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 3300 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

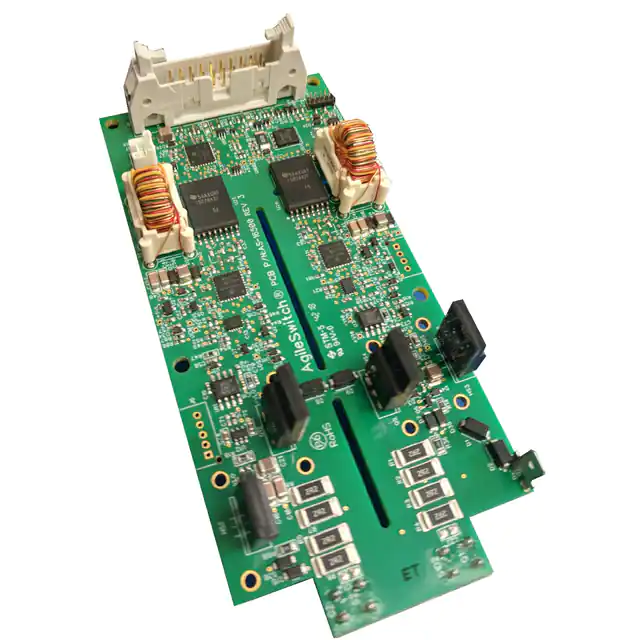

62EM1-00001IC GATE DRVR HALF-BRIDGE MODULE |
5,578 |
|
Datasheet |
- | Module | Bulk | Obsolete | Verified | Half-Bridge | Single | 2 | N-Channel MOSFET | 14V ~ 16V | 4V, 1.25V, 10V, 3.5V | 20A, 20A | Non-Inverting | - | 80ns, 90ns | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
1SP0635V2M1-25IC GATE DRVR HI/LOW SIDE MODULE |
4,260 |
|
Datasheet |
SCALE™-2 | Module | Box | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 2500 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
HPFM-00117IC GATE DRVR HALF-BRIDGE MODULE |
2,568 |
|
Datasheet |
- | Module | Bulk | Active | Not Verified | Half-Bridge | Independent | 1 | IGBT | 14.5V ~ 16V | - | 30A, 30A | Non-Inverting | - | 600ns, 350ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
LT1162CNIC GATE DRVR HALF-BRIDGE 24DIP |
6,058 |
|
Datasheet |
- | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 4 | N-Channel MOSFET | 10V ~ 15V | 0.8V, 2V | 1.5A, 1.5A | Non-Inverting | 60 V | 130ns, 60ns | 0°C ~ 125°C (TJ) | - | - | Through Hole | 24-PDIP |
|
|
LT1162INIC GATE DRVR HALF-BRIDGE 24DIP |
4,586 |
|
Datasheet |
- | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 4 | N-Channel MOSFET | 10V ~ 15V | 0.8V, 2V | 1.5A, 1.5A | Non-Inverting | 60 V | 130ns, 60ns | -40°C ~ 125°C (TJ) | - | - | Through Hole | 24-PDIP |
|
ICL7667CPAIC GATE DRVR HALF-BRIDGE 8DIP |
2,762 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 15V | 0.8V, 2V | - | Inverting | - | 20ns, 20ns | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
IR2104SIC GATE DRVR HALF-BRIDGE 8SOIC |
6,052 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA | Non-Inverting | 600 V | 100ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
LTC1154CN8IC GATE DRVR HIGH-SIDE 8DIP |
3,972 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | - | Non-Inverting | - | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
LMD18400N/NOPBIC GATE DRVR HIGH-SIDE 20DIP |
7,704 |
|
Datasheet |
- | 20-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | High-Side | Independent | 4 | N-Channel MOSFET | 7V ~ 28V | 0.8V, 2V | 3A, 3A | Non-Inverting | - | - | -25°C ~ 150°C (TJ) | - | - | Through Hole | 20-PDIP |
|
98-0247IC GATE DRVR HALF-BRIDGE 16SOIC |
8,604 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 600 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
IXBD4410PIIC GATE DRVR LOW-SIDE 16DIP |
9,914 |
|
- |
ISOSMART™ | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 10V ~ 20V | 1V, 3.65V | 2A, 2A | Non-Inverting | 1200 V | 15ns, 15ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 16-DIP |
|
IR2101IC GATE DRVR HALF-BRIDGE 8DIP |
5,754 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA | Non-Inverting | 600 V | 100ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
IR2104IC GATE DRVR HALF-BRIDGE 8DIP |
5,028 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA | Non-Inverting | 600 V | 100ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
