Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TC4627MJAIC GATE DRVR HI/LOW SIDE 8CERDIP |
8,414 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4V ~ 6V | 0.8V, 2.4V | 1.5A, 1.5A | Non-Inverting | - | 33ns, 27ns | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
TC4423MJAIC GATE DRVR LOW-SIDE 8CERDIP |
6,682 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 3A, 3A | Inverting | - | 23ns, 25ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | 8-CERDIP |
|
|
TC4429MJAIC GATE DRVR LOW-SIDE 8CERDIP |
6,408 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A | Inverting | - | 25ns, 25ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | 8-CERDIP |
|
2DUD51008CXE1IC GATE DRVR HALF-BRIDGE MODULE |
6,164 |
|
- |
- | Module | Tray | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT | 13V ~ 28V | - | - | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
|
2DUD51008DXE1IC GATE DRVR HALF-BRIDGE MODULE |
8,774 |
|
- |
- | Module | Tray | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT | 13V ~ 28V | - | - | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
VLA502-01IC GATE DRVR LOW-SIDE MODULE |
7,380 |
|
Datasheet |
- | 21-SIP Module | Bulk | Active | Not Verified | Low-Side | Single | 1 | IGBT | 14.2V ~ 15.8V | - | 12A, 12A | Non-Inverting | - | 300ns, 300ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|
|
2SC0106T2A1C-12IC GATE DRVR HALF-BRIDGE MODULE |
8,578 |
|
Datasheet |
SCALE™-2+ | Module | Bulk | Active | - | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 6A, 6A | Non-Inverting | 1200 V | 20ns, 13ns | -40°C ~ 105°C (TA) | - | - | Chassis Mount | Module |
|

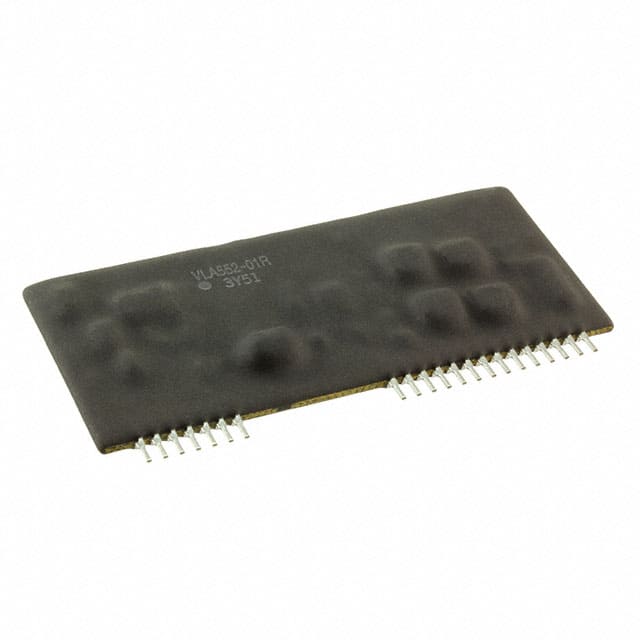

VLA552-01RIC GATE DRVR LOW-SIDE MODULE |
2,756 |
|
Datasheet |
- | 30-SIP Module, 21 Leads | Bulk | Discontinued at Digi-Key | Not Verified | Low-Side | Single | 1 | IGBT | 14.2V ~ 15.8V | - | - | Inverting, Non-Inverting | - | 600ns, 300ns | -25°C ~ 70°C (TA) | - | - | Through Hole | Module |
.jpg)
|

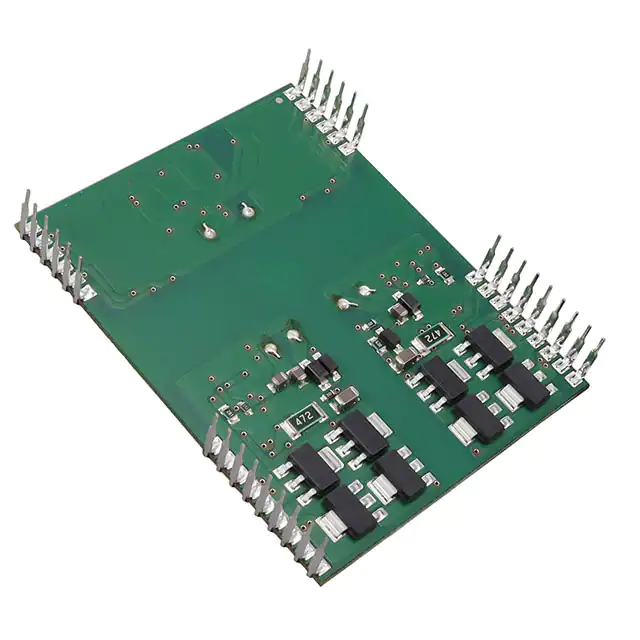

VLA591-01RIC GATE DRVR FULL-BRIDGE MODULE |
2,040 |
|
Datasheet |
- | 50-DIP Module, 30 Leads | Tray | Discontinued at Digi-Key | Not Verified | Full-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 20A, 20A | Non-Inverting | - | 520ns, 120ns | -40°C ~ 85°C | - | - | Through Hole | Module |
|
2DM150606CMIC GATE DRVR HALF-BRIDGE 0502 |
7,940 |
|
Datasheet |
- | 34-DIP Module, 31 Leads | Tray | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT | 15V ~ 24V | 0.8V, 2V | - | - | - | - | -30°C ~ 85°C (TA) | - | - | Through Hole | 0502 |
|
|
2DM150806CMIC GATE DRVR HALF-BRIDGE 0502 |
7,576 |
|
Datasheet |
- | 34-DIP Module, 31 Leads | Tray | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT | 15V ~ 24V | 0.8V, 2V | - | - | - | - | -30°C ~ 85°C (TA) | - | - | Through Hole | 0502 |
|
|
2DM180206CMIC GATE DRVR HALF-BRIDGE 0502 |
4,058 |
|
Datasheet |
- | 34-DIP Module, 31 Leads | Tray | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 15V ~ 24V | 0.8V, 2V | - | - | - | - | -30°C ~ 85°C (TA) | - | - | Through Hole | 0502 |
|

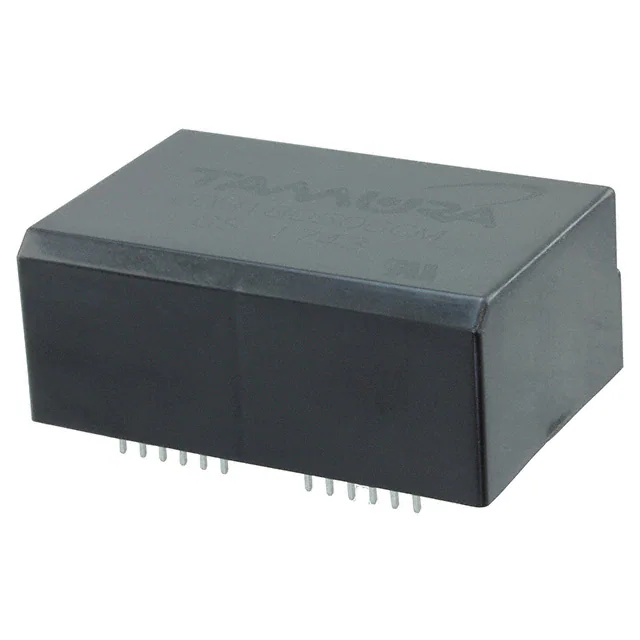

2DM180506CMIC GATE DRVR HALF-BRIDGE 0502 |
3,568 |
|
Datasheet |
- | 34-DIP Module, 31 Leads | Tray | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 15V ~ 24V | 0.8V, 2V | - | - | - | - | -30°C ~ 85°C (TA) | - | - | Through Hole | 0502 |
|
|
2SC0108T2G0C-17IC GATE DRVR HI/LOW SIDE MODULE |
3,666 |
|
Datasheet |
SCALE™-2+ | Module | Bulk | Active | - | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 8A | - | 1700 V | 17ns, 15ns | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
|
2SP0115T2D0-12IC GATE DRVR HALF-BRIDGE MODULE |
5,622 |
|
Datasheet |
SCALE™-2 | Module | Bulk | Active | - | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 15A, 15A | - | 1200 V | 5ns, 10ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
IGD616IC GATE DRVR HI/LOW SIDE MODULE |
7,118 |
|
Datasheet |
SCALE™-1 | 36-DIP Module, 24 Leads | Box | Obsolete | Not Verified | High-Side or Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 14V ~ 16V | 0.9V, 3.8V | 16A, 16A | - | - | 100ns, 80ns | -40°C ~ 85°C (TA) | - | - | Through Hole | Module |
|
|
2DUD51008CFP3IC GATE DRVR HALF-BRIDGE MODULE |
8,728 |
|
- |
- | Module | Tray | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT | 13V ~ 28V | - | - | Non-Inverting | 1200 V | - | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
|
2SC0435T2H0C-17IC GATE DRVR HI/LOW SIDE MODULE |
4,282 |
|
Datasheet |
SCALE™-2+ | Module | Bulk | Active | - | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 14.5V ~ 15.5V | - | 35A, 35A | - | 1700 V | 20ns, 20ns | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
2PG010DDC11NIC GATE DRVR HALF-BRIDGE MODULE |
9,228 |
|
Datasheet |
- | Module | Tray | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT | 13V ~ 28V | 0.5V, 3.3V | 43A, 43A | Non-Inverting | - | 500ns, 500ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
1SP0335D2S1-45IC GATE DRVR HI/LOW SIDE MODULE |
7,298 |
|
Datasheet |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 4500 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
