AC DC Converters, Offline Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNK304GN-TLIC OFFLINE SWITCH MULT TOP 8SMD |
146,476 |
|
Datasheet |
LinkSwitch®-TN | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SMD-8B | Surface Mount |
|
LNK364PNIC OFFLINE SWITCH FLYBACK 8DIP |
7,100 |
|
Datasheet |
LinkSwitch®-XT | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 700V | Flyback | - | - | 60% | 132kHz | 9 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-B | Through Hole |
|
LNK3294G-TLIC OFFLINE SWITCH MULT TOP 8SMD |
6,742 |
|
Datasheet |
LinkSwitch®-TN2 | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Non-Isolated | Yes | 900V | Buck, Buck-Boost, Flyback | - | - | 68% | 66kHz | - | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit | EN, Soft Start | -40°C ~ 150°C (TJ) | - | - | SMD-8C | Surface Mount |
|
LNK304DG-TLIC OFFLINE SWITCH MULT TOP 8SO |
20,940 |
|
Datasheet |
LinkSwitch®-TN | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|

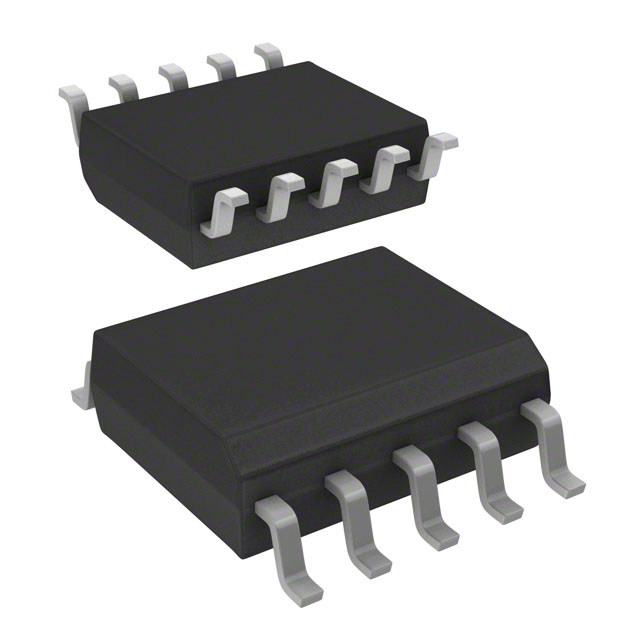

VIPER06HSTRIC OFFLINE SWITCH MULT TOP 10SSO |
4,268 |
|
Datasheet |
VIPer™ plus | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Either | Yes | 800V | Buck, Flyback | 13 V | 11.5V ~ 23.5V | 70% | 115kHz | 8 W | Current Limiting, Open Loop, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 10-SSOP | Surface Mount |
|
|
TNY287DG-TLIC OFFLINE SWITCH FLYBACK 8SO |
21,886 |
|
Datasheet |
TinySwitch®-4 | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | - | - | 67% | 124kHz ~ 140kHz | 11.5 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
VIPER12ADIP-EIC OFFLINE SWITCH 8DIP |
10,334 |
|
Datasheet |
VIPER™ | 8-DIP (0.300", 7.62mm) | Tube | Active | Non-Isolated | Yes | 730V | - | 14.5 V | 9V ~ 38V | - | 60kHz | 13 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TC) | - | - | 8-DIP | Through Hole |
|
|
LNK364GN-TLIC OFFLINE SWITCH FLYBACK 8SMD |
5,384 |
|
Datasheet |
LinkSwitch®-XT | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Isolated | Yes | 700V | Flyback | - | - | 60% | 132kHz | 9 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SMD-8B | Surface Mount |
|
VIPER013XSTRIC OFFLINE SWITCH MULT TOP 10SSO |
15,308 |
|
Datasheet |
- | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Either | Yes | 800V | Buck, Buck-Boost, Flyback | 8 V | 4.5V ~ 30V | 80% | 30kHz | 7 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 10-SSOP | Surface Mount |
|
|
VIPER122LSTRIC OFFLINE SW MULT TOP 10SSOP |
13,386 |
|
Datasheet |
- | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Either | Yes | 730V | Buck, Buck-Boost, Flyback | 13 V | 11.5V ~ 23.5V | 80% | 60kHz | 11 W | Current Limiting, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 10-SSOP | Surface Mount |
|
|
VIPER011LSIC OFFLINE SW MULT TOP 10SSOP |
4,152 |
|
Datasheet |
- | 10-SOP (0.154", 3.90mm Width) | Tube | Active | Either | Yes | 800V | Buck, Buck-Boost, Flyback | 8 V | 4.5V ~ 30V | 80% | 60kHz | 7 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 10-SSOP | Surface Mount |
|

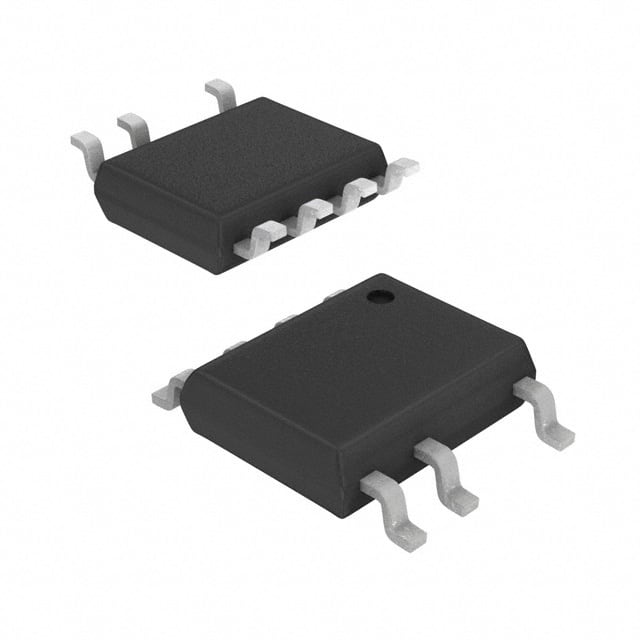

AP3917BS7-13IC OFFLINE SWITCH MULT TOP 7SO |
3,270 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Non-Isolated | Yes | 650V | Buck, Flyback | - | 8.2V ~ 8.8V | - | - | 1 W | Current Limiting, Open Loop, Over Load, Over Temperature, Short Circuit | - | -40°C ~ 125°C (TA) | - | - | 7-SO | Surface Mount |
|
|
LNK305PNIC OFFLINE SWITCH MULT TOP 8DIP |
36,124 |
|
Datasheet |
LinkSwitch®-TN | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-B | Through Hole |
|
|
TNY288DG-TLIC OFFLINE SWITCH FLYBACK 8SO |
22,838 |
|
Datasheet |
TinySwitch®-4 | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | - | - | 67% | 124kHz ~ 140kHz | 14.5 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
L6565DIC OFFLINE SWITCH FLYBACK 8SO |
2,110 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Isolated | No | - | Flyback | 13.5 V | 10.3V ~ 18V | - | - | - | Current Limiting | - | -40°C ~ 150°C (TJ) | - | - | 8-SOIC | Surface Mount |
|
TNY275PNIC OFFLINE SWITCH FLYBACK 8DIP |
6,802 |
|
Datasheet |
TinySwitch®-III | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 700V | Flyback | - | - | 65% | 132kHz | 15 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-C | Through Hole |
|
VIPER16LNIC OFFLINE SWITCH MULT TOP 7DIP |
4,838 |
|
Datasheet |
VIPer™ plus | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Either | Yes | 800V | Buck, Buck-Boost, Flyback | 13 V | 11.5V ~ 23.5V | 70% | 60kHz | 10 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 7-DIP | Through Hole |
|
|
TNY274GN-TLIC OFFLINE SWITCH FLYBACK 8SMD |
32,518 |
|
Datasheet |
TinySwitch®-III | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Isolated | Yes | 700V | Flyback | - | - | 65% | 132kHz | 11 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | SMD-8C | Surface Mount |
|
|
LNK305GN-TLIC OFFLINE SWITCH MULT TOP 8SMD |
28,978 |
|
Datasheet |
LinkSwitch®-TN | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SMD-8B | Surface Mount |
|
UCC28600DIC OFFLINE SWITCH FLYBACK 8SOIC |
16,110 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Isolated | No | - | Flyback | 13 V | 8V ~ 21V | 99% | 40kHz ~ 130kHz | 200 W | Current Limiting, Over Temperature, Over Voltage | Soft Start | -40°C ~ 105°C (TA) | - | - | 8-SOIC | Surface Mount |
