AC DC Converters, Offline Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TOP227YNIC OFFLINE SW MULT TOP TO220-3 |
1,488 |
|
Datasheet |
TOPSwitch®-II | TO-220-3 | Tube | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 150 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | TO-220-3 | Through Hole |
|
TOP250YNIC OFFLINE SW FLYBACK TO220-7C |
3,806 |
|
Datasheet |
TOPSwitch®-GX | TO-220-7 Formed Leads, 6 Leads | Tube | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 66.8% | 66kHz ~ 132kHz | 290 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 150°C (TJ) | - | - | TO-220-7C | Through Hole |
|

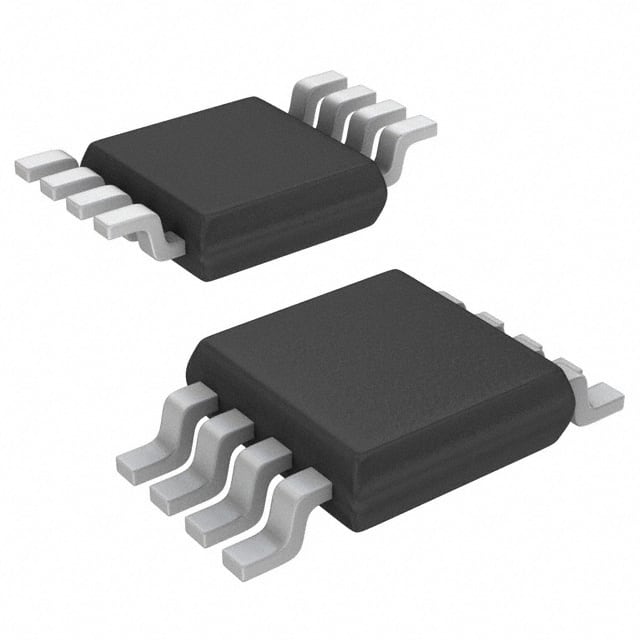

ISL8844AAUZ-TIC OFFLINE SWITCH MULT TOP 8MSOP |
9,922 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Non-Isolated | No | - | Boost, Flyback | 14.4 V | 8.8V ~ 30V | 48% | Up to 2MHz | - | Current Limiting | Frequency Control | -40°C ~ 105°C (TA) | - | - | 8-MSOP | Surface Mount |
|
UC3865DWIC OFFLINE SW MULT TOP 16SOIC |
1,566 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Non-Isolated | Yes | - | Full-Bridge, Half-Bridge, Push-Pull | 16.5 V | 10.5V ~ 22V | - | 10kHz ~ 1MHz | - | - | Soft Start | 0°C ~ 70°C (TA) | - | - | 16-SOIC | Surface Mount |
|
LT3798EMSE#PBFIC OFFLINE SWITCH FLYBACK 16MSOP |
1,492 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Isolated | No | - | Flyback | - | 10V ~ 38V | - | 500Hz ~ 150KHz | - | - | - | -40°C ~ 125°C | - | - | 16-MSOP-EP | Surface Mount |
|
|
LT3798IMSE#PBFIC OFFLINE SWITCH FLYBACK 16MSOP |
1,214 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Isolated | No | - | Flyback | - | 10V ~ 38V | - | 500Hz ~ 150KHz | - | - | - | -40°C ~ 125°C | - | - | 16-MSOP-EP | Surface Mount |
|

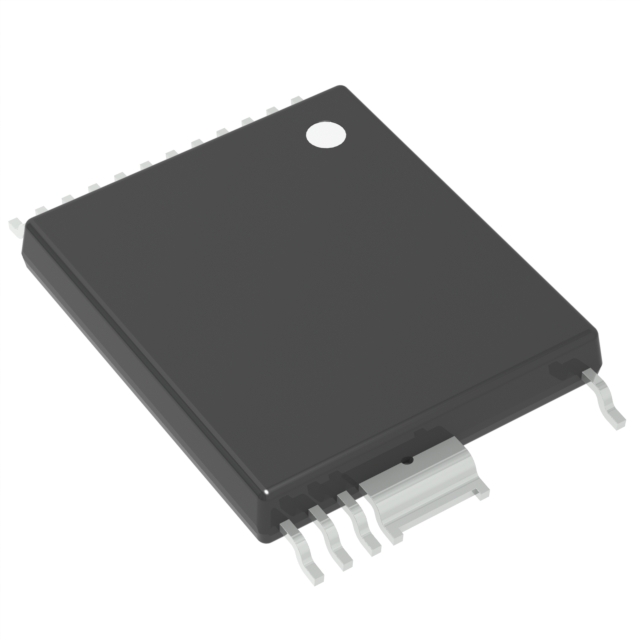

INN3947CQ-TLINNOSWITCH3-AQ 1700V 50W |
6,170 |
|
Datasheet |
InnoSwitch™3-AQ | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 1700V | Flyback | 30 V | 30V ~ 1000V | - | 25kHz ~ 95kHz | 50 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Frequency Control, Soft Start | -40°C ~ 125°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
INN3647C-H606-TL1700 V 45 W (85-670 V AC) |
1,130 |
|
Datasheet |
- | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 1700V | Flyback, Secondary Side SR | - | - | - | 45kHz | 45 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Frequency Control, Soft Start | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
INN3949CQ-TLINNOSWITCH3-AQ 1700V 70W |
3,970 |
|
Datasheet |
InnoSwitch™3-AQ | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 1700V | Flyback | 30 V | 30V ~ 1000V | - | 25kHz ~ 95kHz | 70 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Frequency Control, Soft Start | -40°C ~ 125°C (TA) | - | - | InSOP-24D | Surface Mount |
|
LNK3202D-TLIC OFFLINE SWITCH MULT TOP 8SO |
63,466 |
|
Datasheet |
LinkSwitch™-TN2 | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Non-Isolated | Yes | 725V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
TNY284DG-TLIC OFFLINE SWITCH FLYBACK 8SO |
14,632 |
|
Datasheet |
TinySwitch®-4 | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | - | - | 67% | 124kHz ~ 140kHz | 6 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK3604D-TLIC OFFLINE SWITCH FLYBACK 8SO |
8,842 |
|
Datasheet |
LinkSwitch™-XT2 | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | - | - | 69% | 132kHz | 7.3 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
LNK564PNIC OFFLINE SWITCH FLYBACK 8DIP |
2,250 |
|
Datasheet |
LinkSwitch®-LP | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 700V | Flyback | - | - | 70% | 100kHz | 3 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-B | Through Hole |
|
LNK302GN-TLIC OFFLINE SWITCH MULT TOP 8SMD |
59,792 |
|
Datasheet |
LinkSwitch®-TN | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SMD-8B | Surface Mount |
|
|
TNY286DG-TLIC OFFLINE SWITCH FLYBACK 8SO |
7,136 |
|
Datasheet |
TinySwitch®-4 | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | - | - | 67% | 124kHz ~ 140kHz | 19 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK302DN-TLIC OFFLINE SWITCH MULT TOP 8SO |
52,858 |
|
Datasheet |
LinkSwitch®-TN | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
UCC28742DBVRIC OFFLINE SW FLYBACK SOT23-6 |
14,906 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 21.6 V | 9V ~ 35V | 99% | 80kHz | - | Current Limiting, Over Voltage, Short Circuit | - | -40°C ~ 125°C | - | - | SOT-23-6 | Surface Mount |
|
|
LNK304PNIC OFFLINE SWITCH MULT TOP 8DIP |
5,262 |
|
Datasheet |
LinkSwitch®-TN | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-B | Through Hole |
|
|
LNK3205D-TLIC OFFLINE SWITCH MULT TOP 8SO |
16,922 |
|
Datasheet |
LinkSwitch™-TN2 | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Non-Isolated | Yes | 725V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK362DG-TLIC OFFLINE SWITCH FLYBACK 8SO |
12,660 |
|
Datasheet |
LinkSwitch®-XT | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 700V | Flyback | - | - | 60% | 132kHz | 2.8 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
