Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN3258-75-52LINE FILTER 75A CHASSIS MOUNT |
6,258 |
|
Datasheet |
FN 3258 | Tray | Obsolete | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 75 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
F4804ALINE FLTR 80VAC 4A SURFACE MOUNT |
7,400 |
|
Datasheet |
F | Tape & Reel (TR) | Obsolete | Single Phase | Three Stage | - | 80V | - | - | 4 A | - | General Purpose | DEMKO, UL | -40°C ~ 85°C | Surface Mount | SMD (SMT) Tab | - |
|
|
FN2360B-3-06LINE FILTER 250VAC 3A CHASS MNT |
8,230 |
|
Datasheet |
FN 2360 | Tray | Obsolete | Single Phase | Two Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | General Purpose | CSA, SEMKO | -25°C ~ 100°C | Chassis Mount | Quick Connect | 400µH |
|
|
FN2360B-6-06LINE FILTER 250VAC 6A CHASS MNT |
8,948 |
|
Datasheet |
FN 2360 | Tray | Obsolete | Single Phase | Two Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | General Purpose | CSA, SEMKO | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1.7mH |
|
|
FN2360W-3-06LINE FILTER 250VAC 3A CHASS MNT |
2,056 |
|
Datasheet |
FN 2360 | Tray | Obsolete | Single Phase | Two Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | General Purpose | CSA, SEMKO | -25°C ~ 100°C | Chassis Mount | Quick Connect | 400µH |
|
|
FN2360X-6-06LINE FILTER 250VAC 6A CHASS MNT |
5,434 |
|
Datasheet |
FN 2360 | Tray | Obsolete | Single Phase | Two Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | General Purpose | CSA, SEMKO | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1.7mH |
|
|
FN256-120-28LINE FILTER 120A CHASSIS MOUNT |
3,002 |
|
Datasheet |
FN 256 | Tray | Obsolete | Three Phase (Wye) | Single Stage | - | - | 277 V | 480 V | 120 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN256-120-35LINE FILTER 120A CHASSIS MOUNT |
4,706 |
|
Datasheet |
FN 256 | Tray | Obsolete | Three Phase (Wye) | Single Stage | - | - | 277 V | 480 V | 120 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN256-160-28LINE FILTER 160A CHASSIS MOUNT |
4,532 |
|
Datasheet |
FN 256 | Tray | Obsolete | Three Phase (Wye) | Single Stage | - | - | 277 V | 480 V | 160 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN256-160-40LINE FILTER 160A CHASSIS MOUNT |
6,538 |
|
Datasheet |
FN 256 | Tray | Obsolete | Three Phase (Wye) | Single Stage | - | - | 277 V | 480 V | 160 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN258-250-40LINE FILTER 250A CHASSIS MOUNT |
9,092 |
|
Datasheet |
FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 250 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN3258H-16-45LINE FILTER 16A CHASSIS MOUNT |
7,852 |
|
Datasheet |
FN 3258 | Tray | Obsolete | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 16 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN3258H-30-47LINE FILTER 30A CHASSIS MOUNT |
9,980 |
|
Datasheet |
FN 3258 | Tray | Obsolete | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 30 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN3258H-42-47LINE FILTER 42A CHASSIS MOUNT |
8,348 |
|
Datasheet |
FN 3258 | Tray | Obsolete | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 42 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN3258H-55-52LINE FILTER 55A CHASSIS MOUNT |
9,804 |
|
Datasheet |
FN 3258 | Tray | Obsolete | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 55 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN3258H-7-45LINE FILTER 7A CHASSIS MOUNT |
5,974 |
|
Datasheet |
FN 3258 | Tray | Obsolete | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 7 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

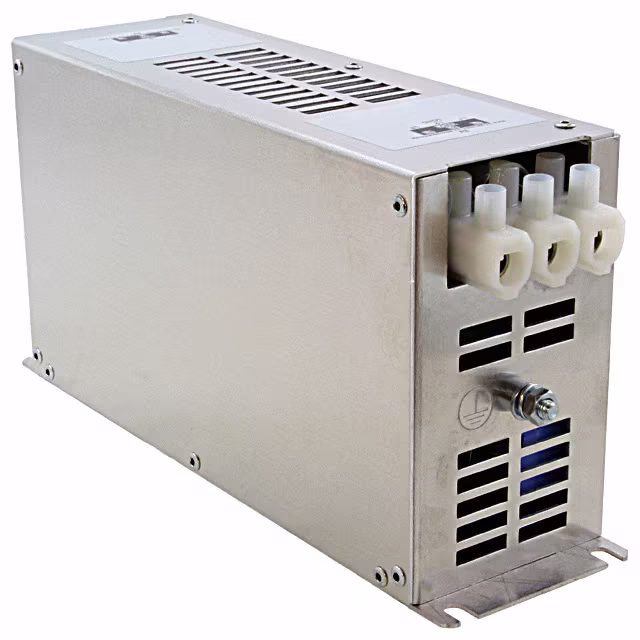

FN3258H-75-52LINE FILTER 75A CHASSIS MOUNT |
6,462 |
|
Datasheet |
FN 3258 | Tray | Obsolete | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 75 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN3258P-42-47LINE FILTER 42A CHASSIS MOUNT |
4,386 |
|
Datasheet |
FN 3258 | Tray | Obsolete | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 42 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN351-280-37LINE FILTER 280A CHASSIS MOUNT |
8,546 |
|
Datasheet |
FN 351 | Tray | Obsolete | Three Phase (Delta) | Single Stage | - | - | 250 V | 440 V | 280 A | DC ~ 60Hz | Inverters, Power Drive Systems | - | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
FN251-16-07LINE FILTER 440VAC 16A CHASS MNT |
3,570 |
|
Datasheet |
FN 251 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | 440V | - | - | 16 A | DC ~ 60Hz | General Purpose | UR | - | Chassis Mount | Terminal Block, Wire Leads | 2.6mH |
