Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

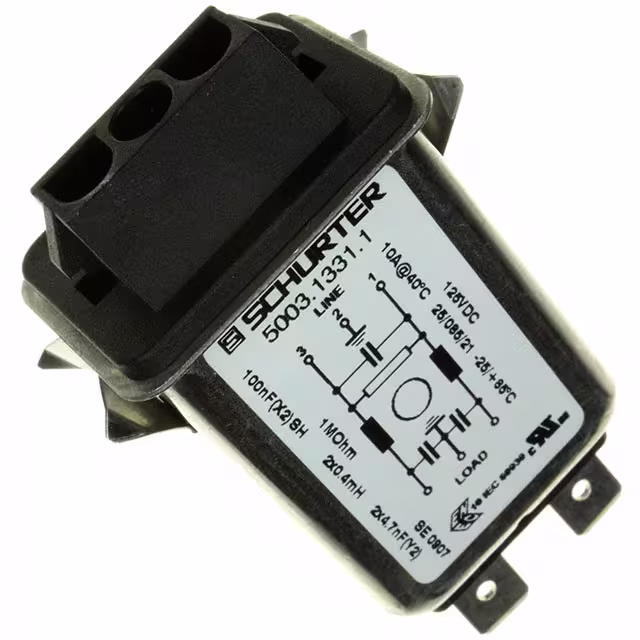

5003.1331.1LINE FILTER 125VDC 10A PANEL MNT |
5,126 |
|
Datasheet |
5003 | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | 10 A | - | Signal | cURus, ENEC, UL, VDE | -25°C ~ 85°C | Panel Mount | - | 400µH |
|

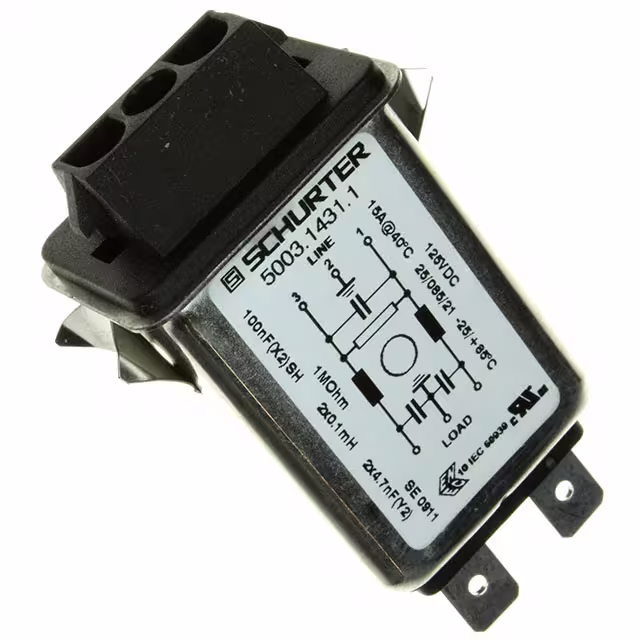

5003.1431.1LINE FILTER 125VDC 15A PANEL MNT |
8,162 |
|
Datasheet |
5003 | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | 15 A | - | Signal | cURus, ENEC, UL, VDE | -25°C ~ 85°C | Panel Mount | Quick Connect | 100µH |
|
F2800AA15LINE FILTER 250VAC 15A CHASS MNT |
7,432 |
|
Datasheet |
F2800 | Box | Obsolete | Single Phase | Two Stage | - | 250V | - | - | 15 A | 50/60Hz | General Purpose | CE, CSA, TUV, UR | - | Chassis Mount | Quick Connect | - |
|
FN256-16-46LINE FILTER 16A CHASSIS MOUNT |
2,676 |
|
Datasheet |
FN 256 | Tray | Obsolete | Three Phase (Wye) | Single Stage | - | - | 277 V | 480 V | 16 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

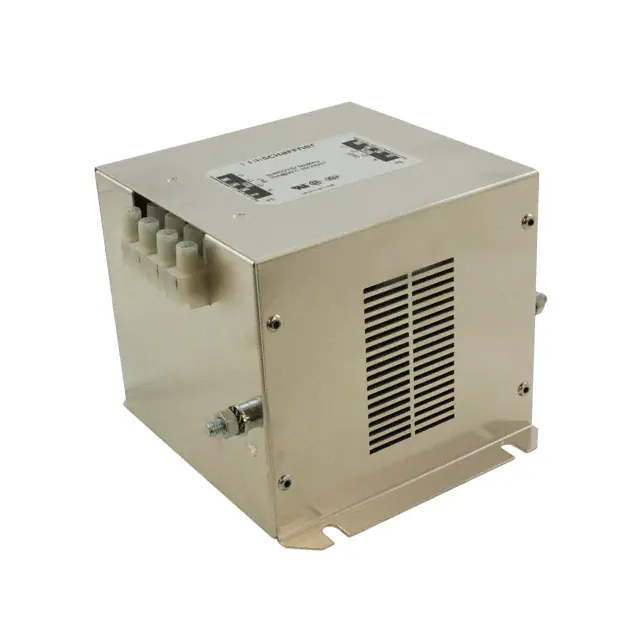

FN256-25-47LINE FILTER 25A CHASSIS MOUNT |
5,084 |
|
Datasheet |
FN 256 | Tray | Obsolete | Three Phase (Wye) | Single Stage | - | - | 277 V | 480 V | 25 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN256-36-47LINE FILTER 36A CHASSIS MOUNT |
7,394 |
|
Datasheet |
FN 256 | Tray | Obsolete | Three Phase (Wye) | Single Stage | - | - | 277 V | 480 V | 36 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN256-80-28LINE FILTER 80A CHASSIS MOUNT |
3,720 |
|
Datasheet |
FN 256 | Tray | Obsolete | Three Phase (Wye) | Single Stage | - | - | 277 V | 480 V | 80 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

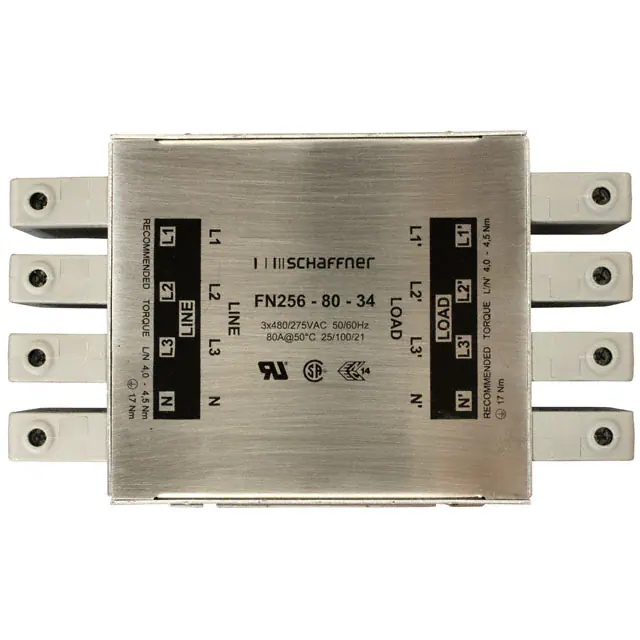

FN256-80-34LINE FILTER 80A CHASSIS MOUNT |
2,416 |
|
Datasheet |
FN 256 | Tray | Obsolete | Three Phase (Wye) | Single Stage | - | - | 277 V | 480 V | 80 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

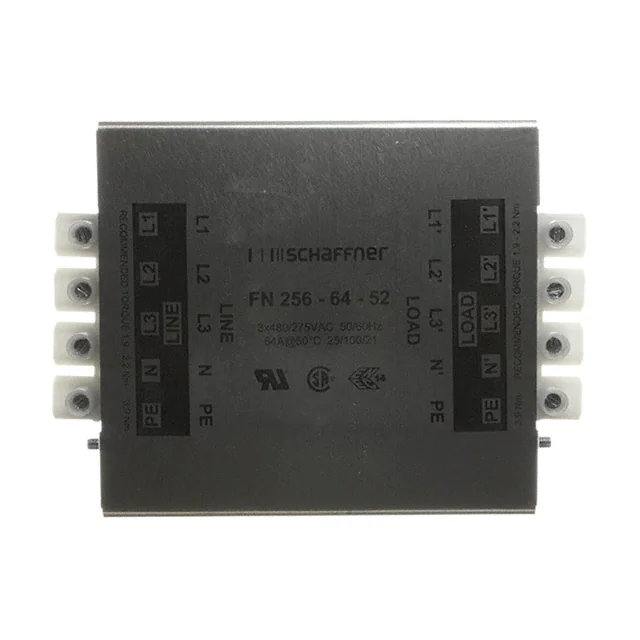

FN256-64-52LINE FILTER 64A CHASSIS MOUNT |
6,926 |
|
Datasheet |
FN 256 | Tray | Obsolete | Three Phase (Wye) | Single Stage | - | - | 277 V | 480 V | 64 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN351-8-29LINE FILTER 8A CHASSIS MOUNT |
9,384 |
|
Datasheet |
FN 351 | Tray | Obsolete | Three Phase (Delta) | Single Stage | - | - | 250 V | 440 V | 8 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|

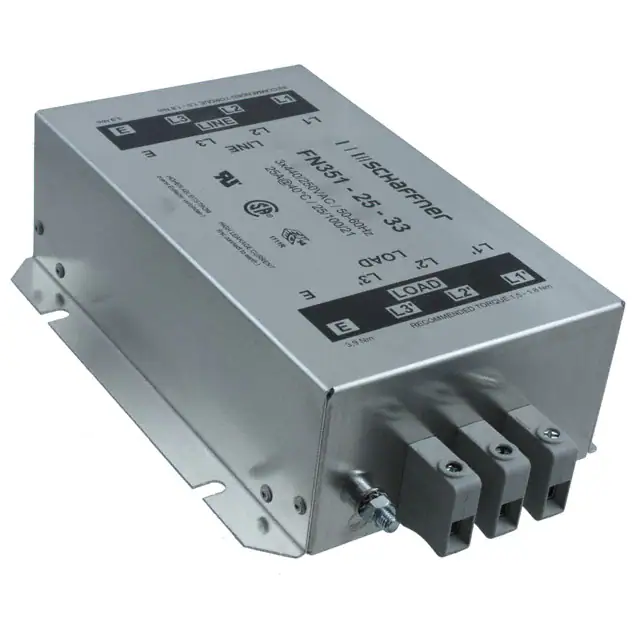

FN351-25-33LINE FILTER 25A CHASSIS MOUNT |
8,138 |
|
Datasheet |
FN 351 | Tray | Obsolete | Three Phase (Delta) | Single Stage | - | - | 250 V | 440 V | 25 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|

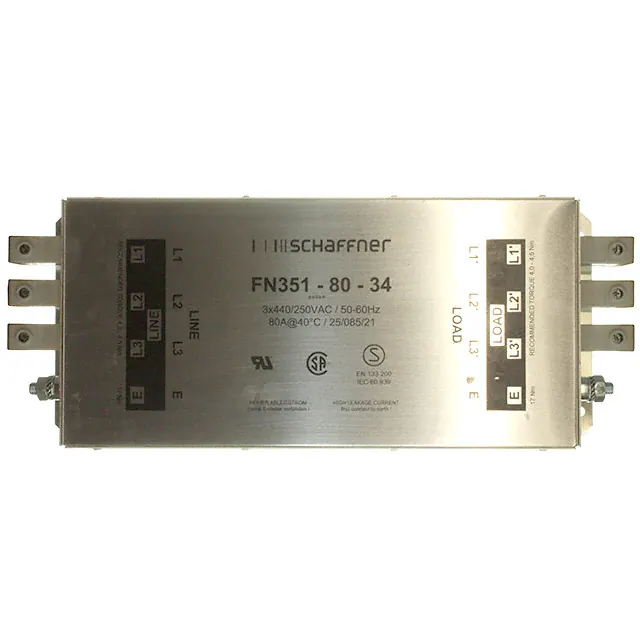

FN351-80-34LINE FILTER 80A CHASSIS MOUNT |
2,540 |
|
Datasheet |
FN 351 | Tray | Obsolete | Three Phase (Delta) | Single Stage | - | - | 250 V | 440 V | 80 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
FN610-1-06LINE FILTER 250VAC 1A CHASS MNT |
2,290 |
|
Datasheet |
FN 610 | Tray | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 1 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 3mH |
|

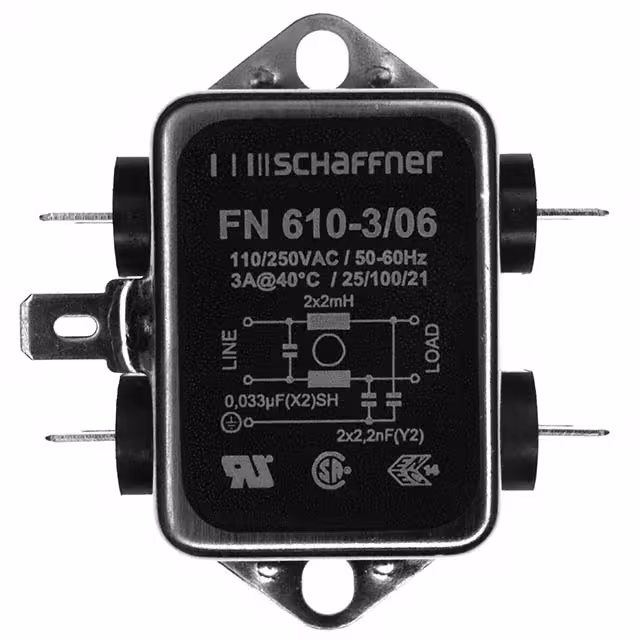

FN610-3-06LINE FILTER 250VAC 3A CHASS MNT |
9,834 |
|
Datasheet |
FN 610 | Tray | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 2mH |
|

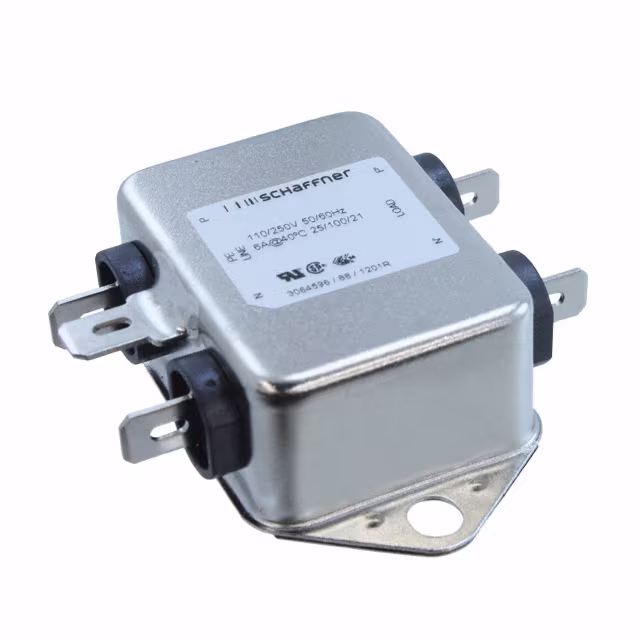

FN610-6-06LINE FILTER 250VAC 6A CHASS MNT |
8,294 |
|
Datasheet |
FN 610 | Tray | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 750µH |
|
FN610-10-06LINE FILTER 250VAC 10A CHASS MNT |
9,976 |
|
Datasheet |
FN 610 | Tray | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 10 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 450µH |
|
FN610-20-06LINE FILTER 250VAC 20A CHASS MNT |
6,994 |
|
Datasheet |
FN 610 | Tray | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 480µH |
|
FN610-30-03LINE FILTER 250VAC 30A CHASS MNT |
3,042 |
|
Datasheet |
FN 610 | Tray | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 30 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | 610µH |
|
FN610B-3-06LINE FILTER 250VAC 3A CHASS MNT |
8,230 |
|
Datasheet |
FN 610 | Tray | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 2mH |
|

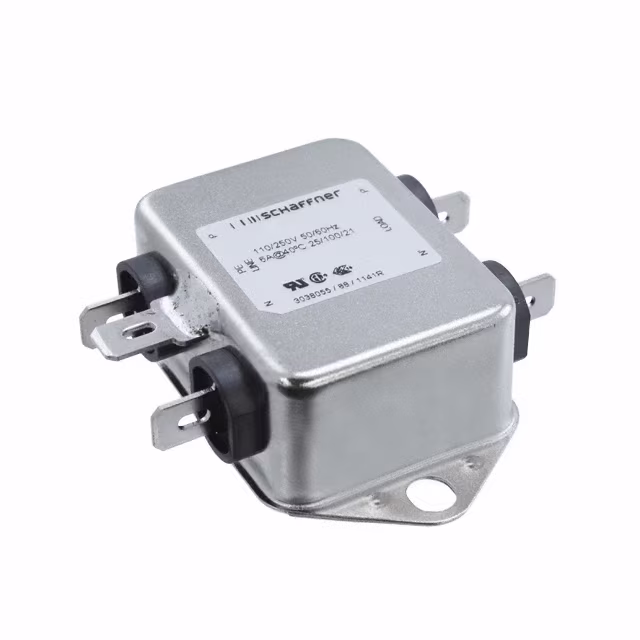

FN610B-6-06LINE FILTER 250VAC 6A CHASS MNT |
6,028 |
|
Datasheet |
FN 610 | Tray | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 750µH |
